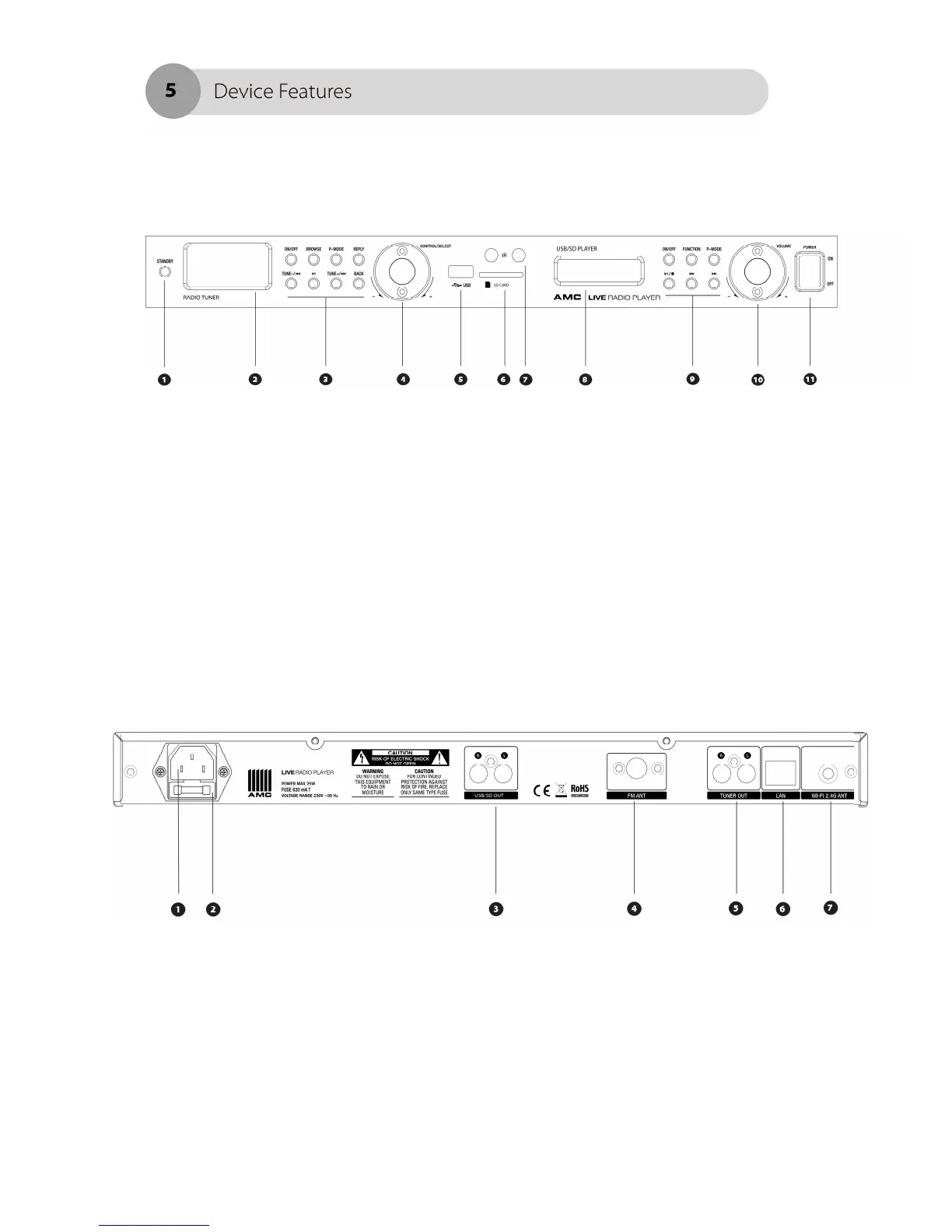

1. Stand by switch 2. Radio tuner’s display
3. Radio tuner’s function buttons 4. Volume and menu navigation’s
5. USB slot 6. SD card’s slot
7. IR detectors 8. USB/SD player’s display
9. USB/SD player’s function buttons 10. USB/SD player’s volume control
11. Power switch
Rear panel
1. Main power socket 2. Fuse holder
3. USB/SD player’s line output 4. FM antenna plug
5. Tuner line output 6. LAN cable socket
7. Wi-Fi antenna plug
