Connect to an HDMI™ HDTV (DVI-to-HDMI™/ PCI Express only)
Note: This option is available on graphics cards that support
HDMI™.
1 Before connecting an HDMI™ HDTV, attach a monitor to the
computer and install the video drivers.
2 Make sure the computer and monitor are off.
HDMI™-to-HDMI™ connectors
3 Connect the DVI-to-HDMI™ adapter to the DVI connection on the
graphics card.

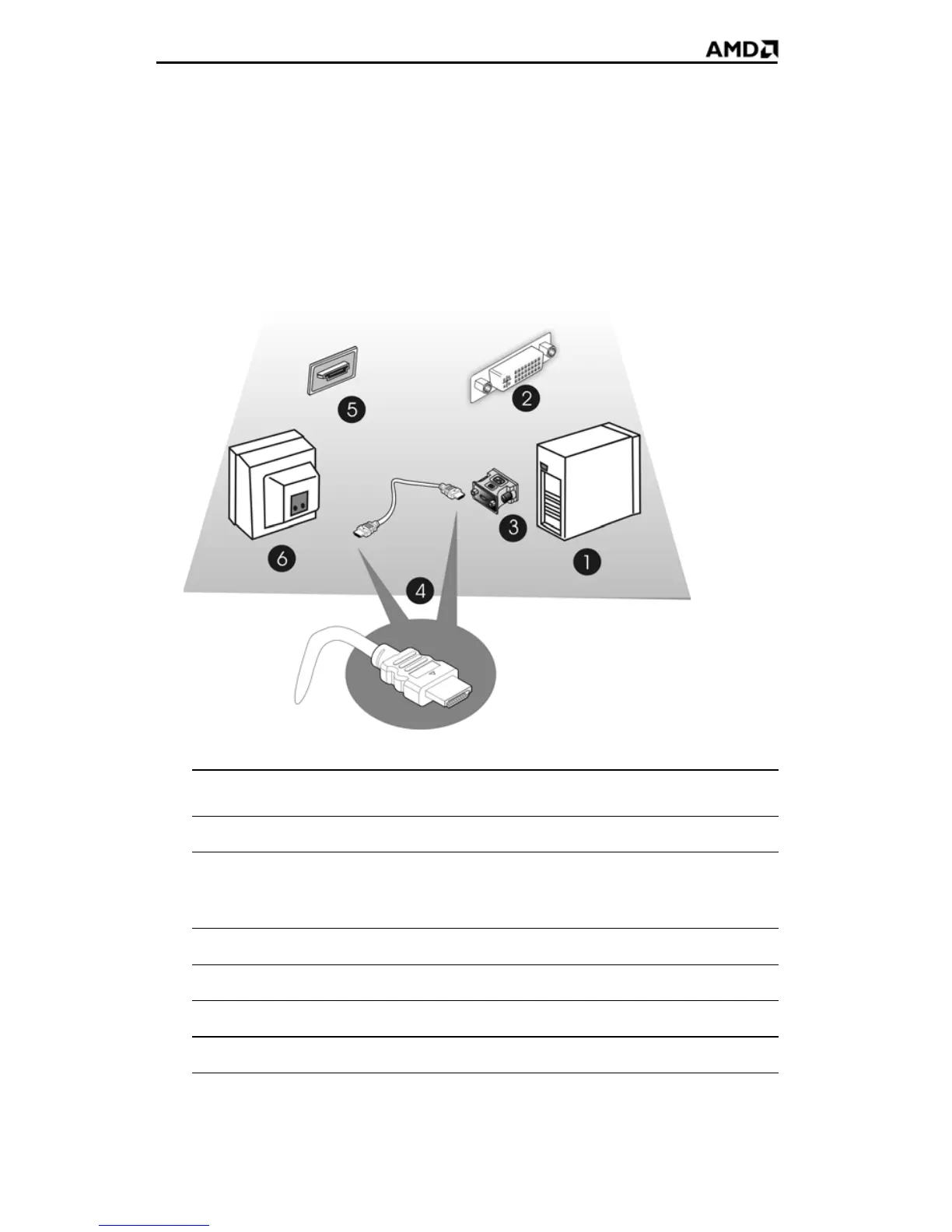

Legend
1 Computer
2 DVI connection on the graphics card (On graphics cards with a DMS-59
port that supports HDMI™, connect a DMS-59 to two DVI adapter to
create a DVI connection.)
3 DVI-to-HDMI™ adapter
4 HDMI™-to-HDMI™ cable
5 HDMI™ connection on the HDTV
6 HDMI™ HDTV
