If you have properly installed your graphics card, operating system messages will

appear and the boot procedure will proceed.

Your monitor will be running in a basic (VGA) video mode. Higher refresh rates are

not available at this stage of the installation. Once you have installed the AMD FirePro

drivers and software, you can use the Windows®Display Properties dialog to adjust

your video settings and configure multiple monitors.

Proceed to install the software and drivers for your AMD FirePro graphics card.

2.2 Baseplate Connections

The following figure shows the display connections available on your graphics card.

Note: Baseplate may not appear exactly as depicted.

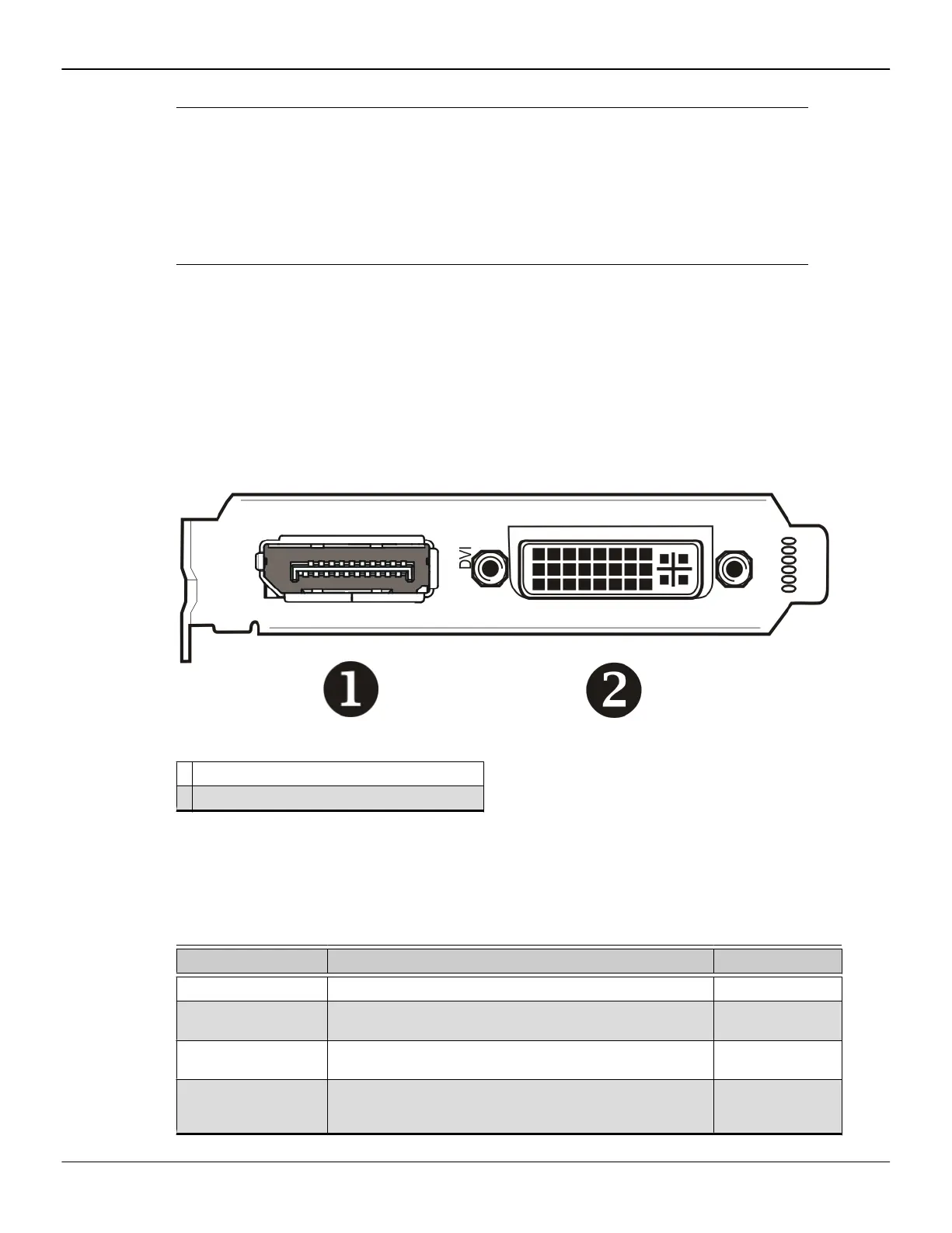

Figure 2–2 AMD FirePro V3900 Baseplate Connections

1 DisplayPort Connection

2 DVI-I Connection (Supports dual-link output)

2.3 Display Configurations

The following table lists the different ways you can connect displays to your card:

Display Configuration

Card Connection Used Comments

DisplayPort display DisplayPort connection

DFP (DVI) display DVI connection or DisplayPort connection with DisplayPort-

to-DVI adapter (single- or dual-link)

DFP = digital flat-

panel

HDMI™ display DisplayPort connection with DisplayPort-to-HDMI adapter

or DVI connection with DVI-to-HDMI adapter

CRT (VGA) display DisplayPort connection with DisplayPort-to-VGA adapter or

DVI connection with DVI-to-VGA adapter

CRT = cathode ray

tube (analog)

display

Hardware Installation 7

AMD FirePro V3900 User Manual
