AMD FirePro V4900 User Manual

If you have properly installed your graphics card, operating system messages will
appear and the boot procedure will proceed.
Your monitor will be running in a basic (VGA) video mode. Higher refresh rates are
not available at this stage of the installation. Once you have installed the AMD FirePro
drivers and software, you can use the Windows®Display Properties dialog to adjust
your video settings and configure multiple monitors.
Proceed to install the software and drivers for your AMD FirePro graphics card.
3.2 Baseplate Connections
The following figure shows the display connections on your graphics card.
Note: Baseplate may not appear exactly as depicted.

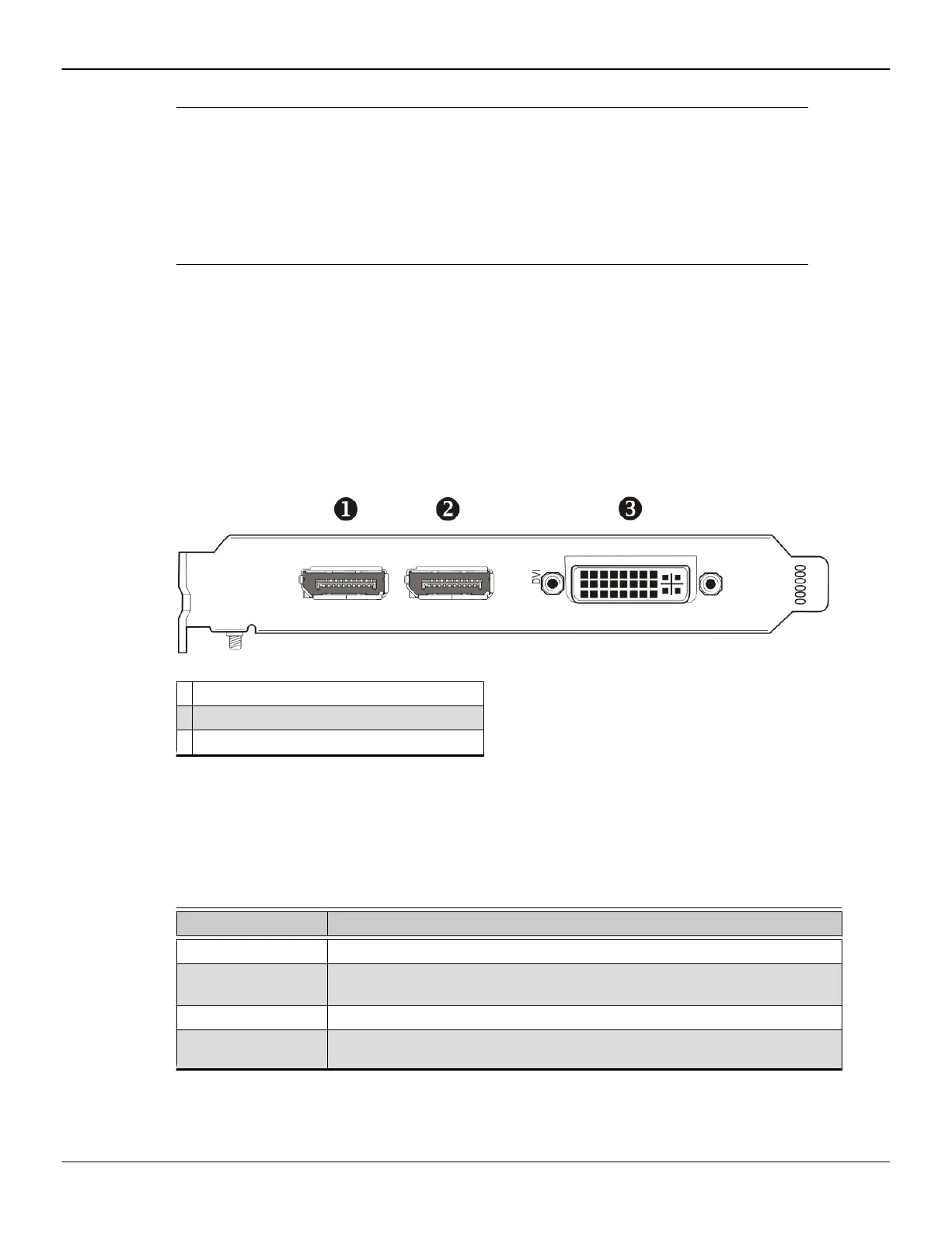

Figure 3–2 AMD FirePro V4900 Baseplate Connections
1 DisplayPort Connection
2 DisplayPort Connection
3 DVI-I Connection (Supports dual-link output)
3.3 Display Configurations
The following table lists the different ways you can connect displays to your card:
Table 3–1 Display Connection Options
Display Connection Options
DisplayPort display
•
DisplayPort connection
DFP (digital flat-panel)
display
•
DVI-I connection (single- or dual-link)
•
DisplayPort connection with DisplayPort-to-DVI adapter (single- or dual-link)
HDMI™ display
•
DisplayPort connection with DisplayPort-to-HDMI adapter
CRT (cathode ray tube)
display
•
DisplayPort connection with DisplayPort-to-VGA adapter
Hardware Installation 11
© 2011 Advanced Micro Devices Inc. AMD FirePro™ V4900

AMD FirePro V4900 Specifications

General

GPU	Turks
GPU Architecture	TeraScale 2
Stream Processors	480
Memory Size	1 GB
Memory Type	GDDR5
Memory Interface	128-bit
Memory Bandwidth	64 GB/s
Core Clock	800 MHz
Memory Clock	1000 MHz
DirectX Support	11
Maximum Power Consumption	75 W
Interface	PCIe 2.1 x16
Max Resolution	2560x1600
Form Factor	Single Slot
Outputs	1 x DisplayPort
