AMD Geode LX800


19
System Case Connections
JW FP
Power
Reset

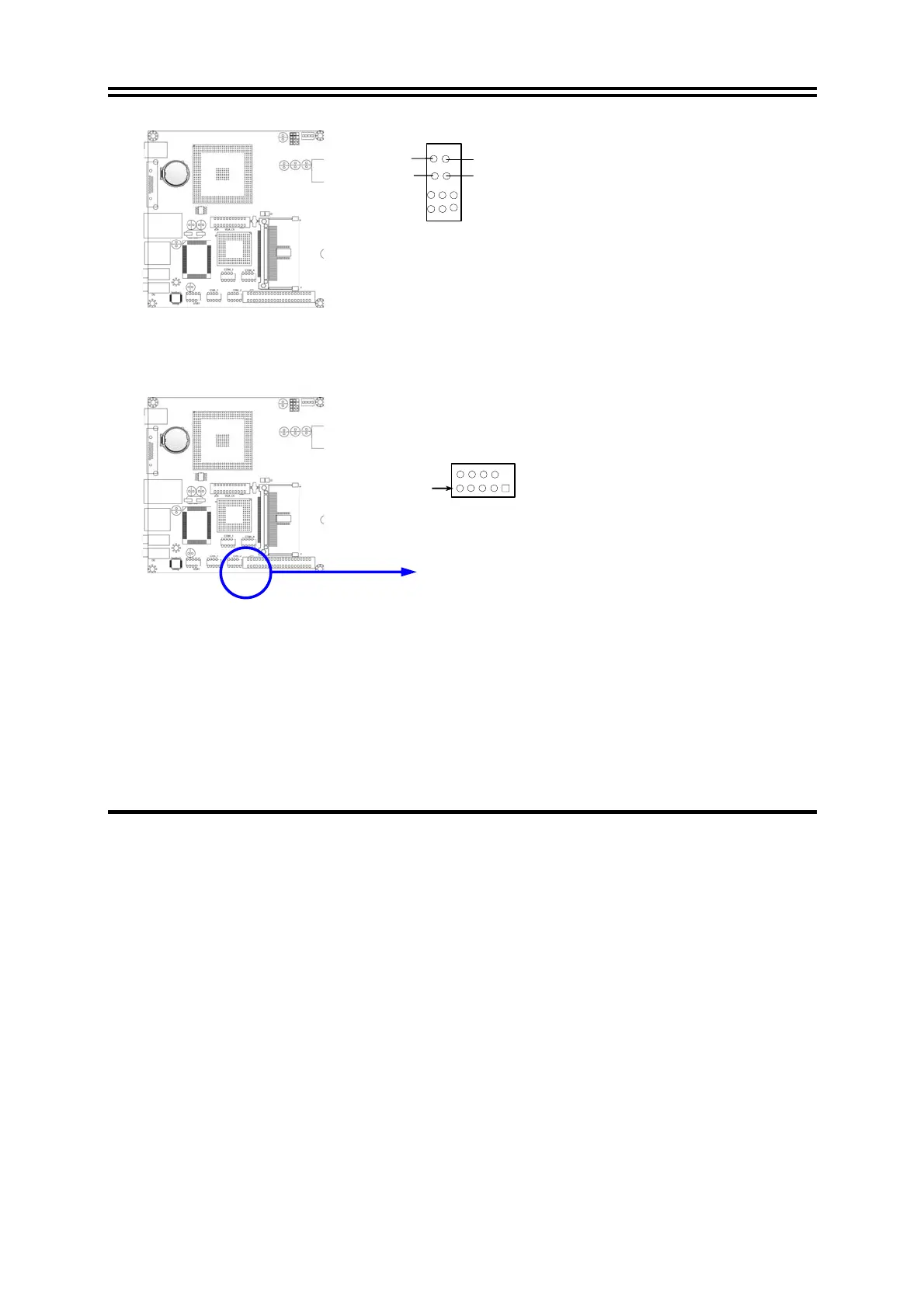

(5) Serial Port Connector (9-pin female): COM1/COM2/COM3/COM4
COM1~COM4 are 9-pin block pin-headers. The on-board serial port can be disabled
through BIOS SETUP. Please refer to Chapter 3 “INTEGRATED PERIPHERALS SETUP”
section for more detail information.
Serial COM Port 9-pin Block
Pin1
