(8) PS/2 Keyboard Connector: PS2KB
The
connectors
are for PS/2 keyboard device.
(9)Compact Flash Slot (50-pin): CF1

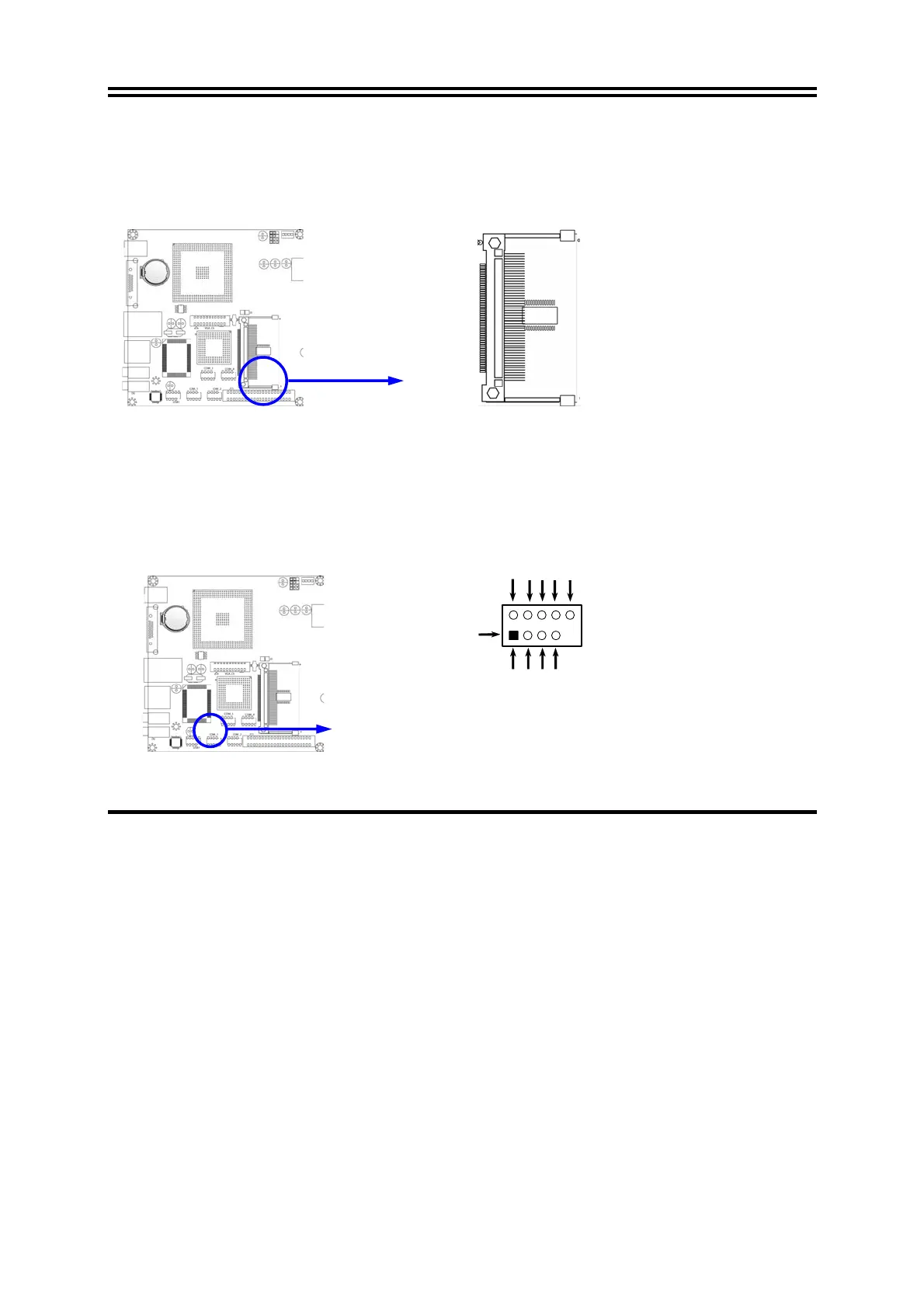

This slot as show in the following picture is used for installing compact flash card.
2-6-2 Headers
(1) USB Port Headers (9-pin): USB1
These headers are used for connecting the additional USB port plug. By attaching an
option USB cable, your can be provided with two additional USB plugs affixed to the
back panel.
USB Port Header
Pin 1
USB1
VCC
-DATA
GND
+DATA
VCC
OC
-DATA
GND
+DATA
