16
Pin
1
CN

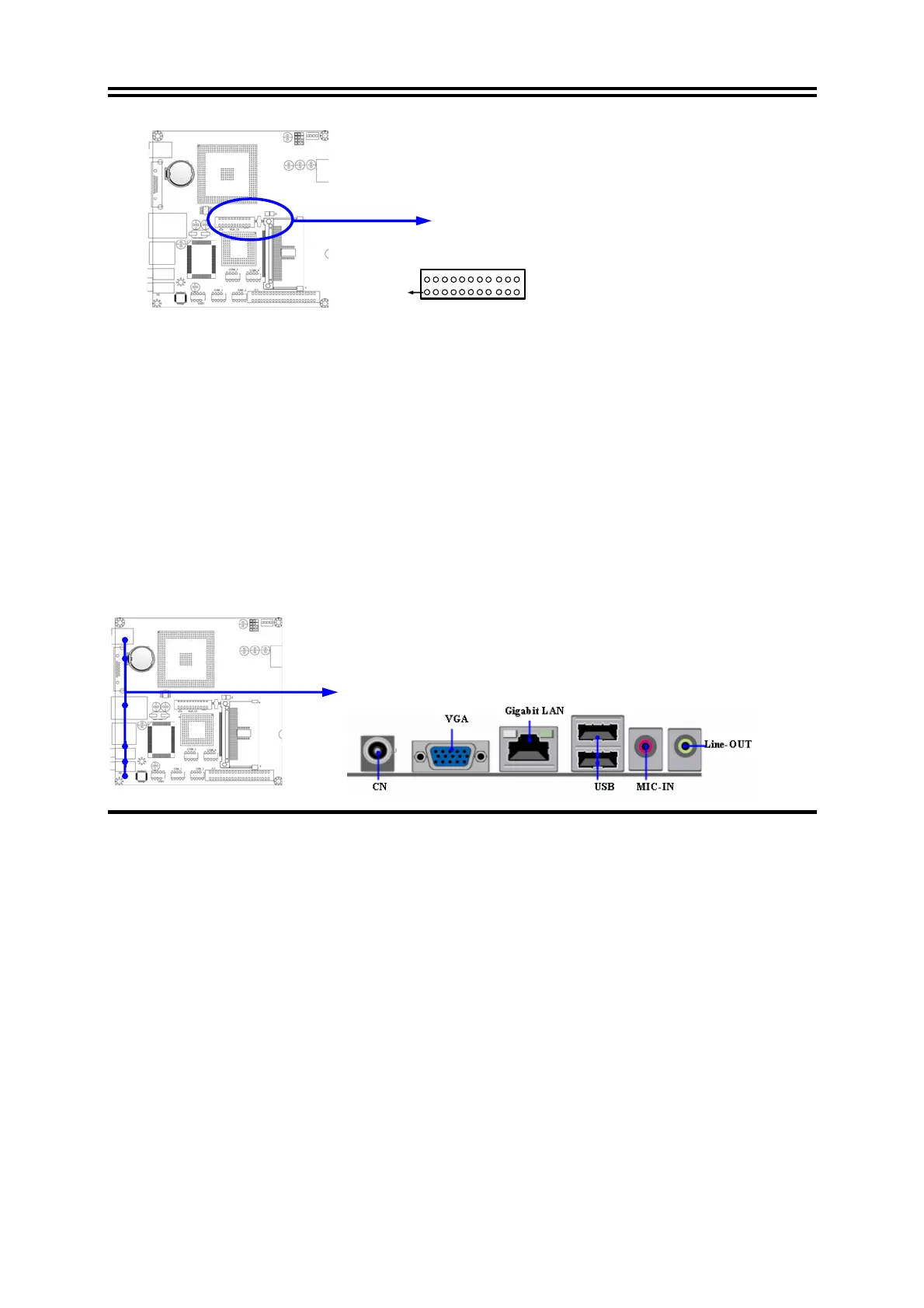

(4) USB Port connector: JUSB1
The connectors are 4-pins connector that connect USB devices to the system board,
and standard RJ45 connector for Network supports 10/100/1000 BASE-T transfer rate.
(5)LAN Port connector: LAN1
This connector is standard RJ45 over USB connectors for Network devices connection.
LAN1supports 10M/100Mb/1G b/s data transfer rate.
(6) VGA Connector (15-pin female): VGA1
VGA
Connector is a 15-pin D-Subminiature Receptacle connector.
This connector is for connection Monitor and System to display.
(7) Audio Connector (Line-Out/ MIC): CN4
This Connector is 2 phone Jack for LINE-OUT/ MIC.
Line-out: (Green)
Audio output to speaker
MIC: (Pink)
Microphone Connector
