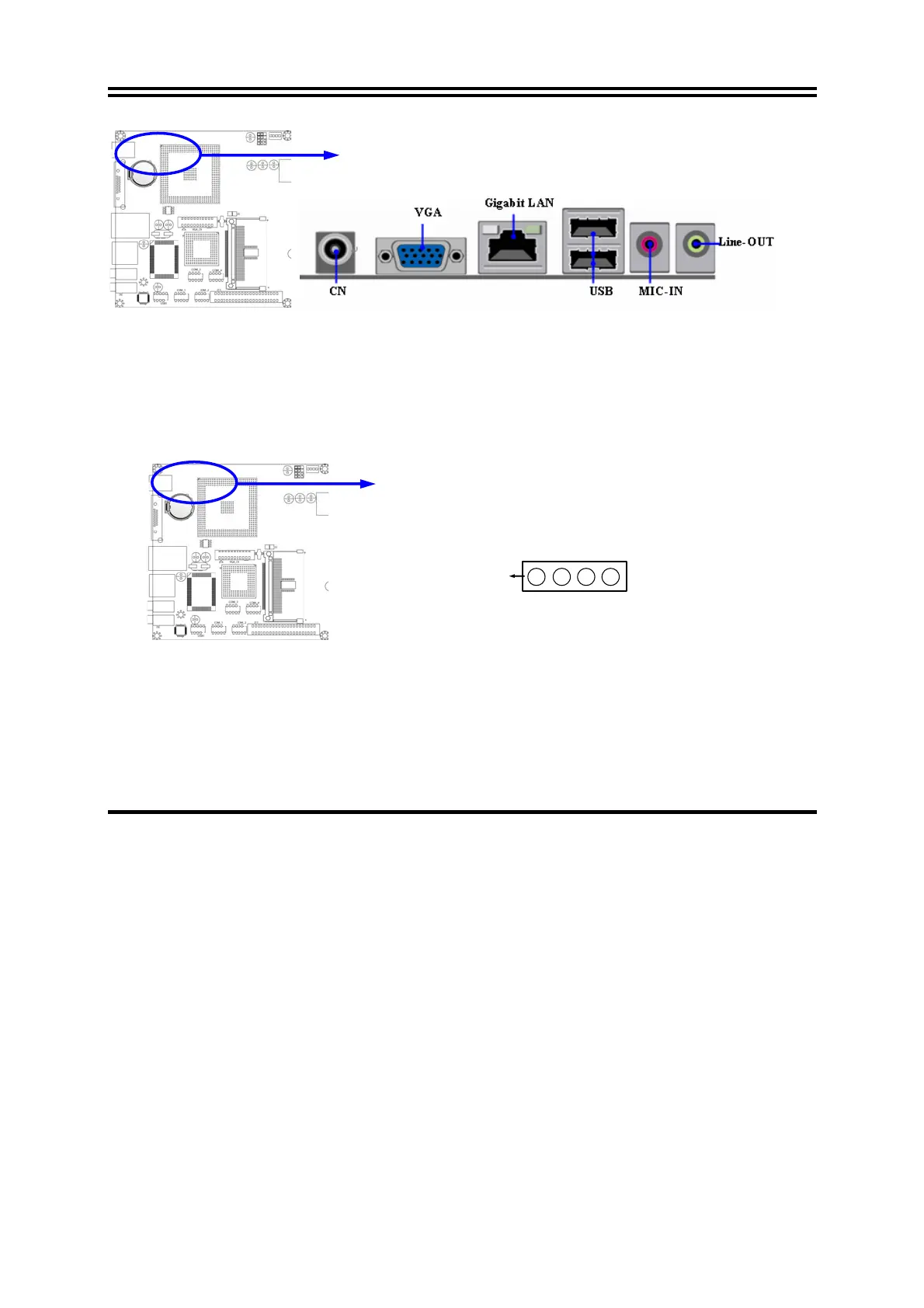

(2) 12V Power Connector (4-pin block):12VCN
This is a newly defined 4-pins connector support extra 12V voltage to maintain system
power consumption in the case that an AD-Scalar daughter board is used. Without this
connector might cause system unstable because the power supply can not provide
sufficient current for system.
(3) VGA Power Connector: VGA _CN
This connector is ready for an AD-Scalar daughter board.
Pin
1
12V CN
