Caution:

Static electricity can seriously damage computer components. Discharge

your body's static electricity by touching the power supply or the metal

surface of the computer chassis before you touch any components inside the

computer's case to avoid damaging them.

4. Unscrew or unfasten and remove any existing graphics card from the computer,

if necessary.

5. Locate the appropriate bus slot and, if necessary, remove the corresponding

metal backplate cover(s). Make sure all internal cables are clear of the slot.

Note: If you cannot find a bus slot to match the card, you need a graphics card

with the correct bus to match the motherboard.

6. Align the graphics card with the slot and press it in firmly until the card is fully

seated.

7. If your card requires supplementary power and must be connected directly to

the power supply, locate the appropriate power connector cable(s) from the

power supply and connect it (or them) to the graphics card's supplementary

power connector(s).

Note: If applicable, before installing a card that requires a supplementary

power connection, make sure your existing power supply has such a

connection available.

Tip: The location of power connections may vary between models. They can

be located on either the side or back of the card.

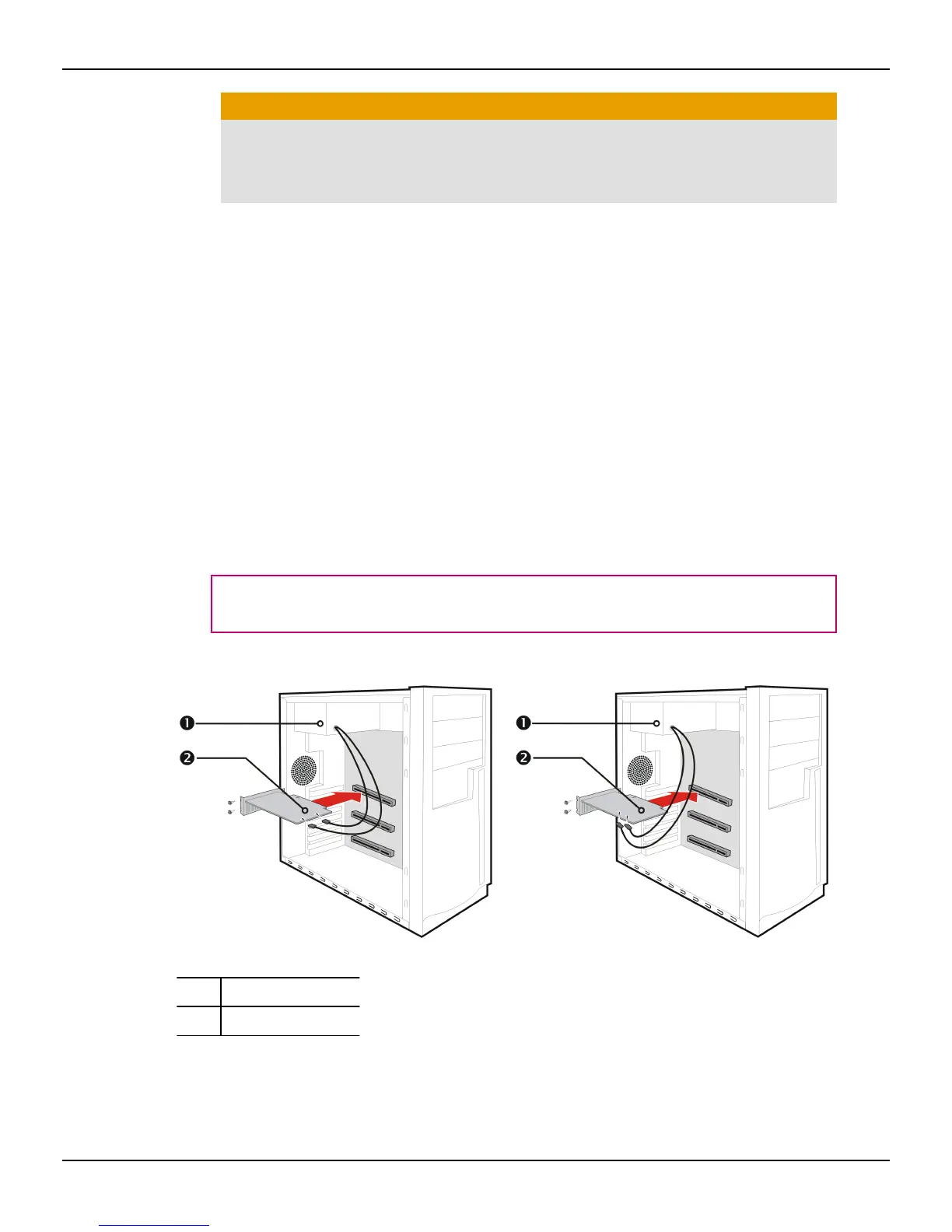

Figure 2–1 Possible Power Connection Locations on the Graphics Card

1 Power supply

2 Graphics card

8. Fasten the graphics card securely to the back panel.

9. Make sure no internal cables are interfering with components inside the

computer (for example, a cooling fan), and then replace the computer cover.

4 Hardware and Software Installation
