AMD Radeon R9 270X User Manual

Chapter 4
Display Configuration
This section describes how to configure displays and lists available display
connections for your graphics card.
4.1 AMD Radeon™ R9 270X/R9 270 Connections

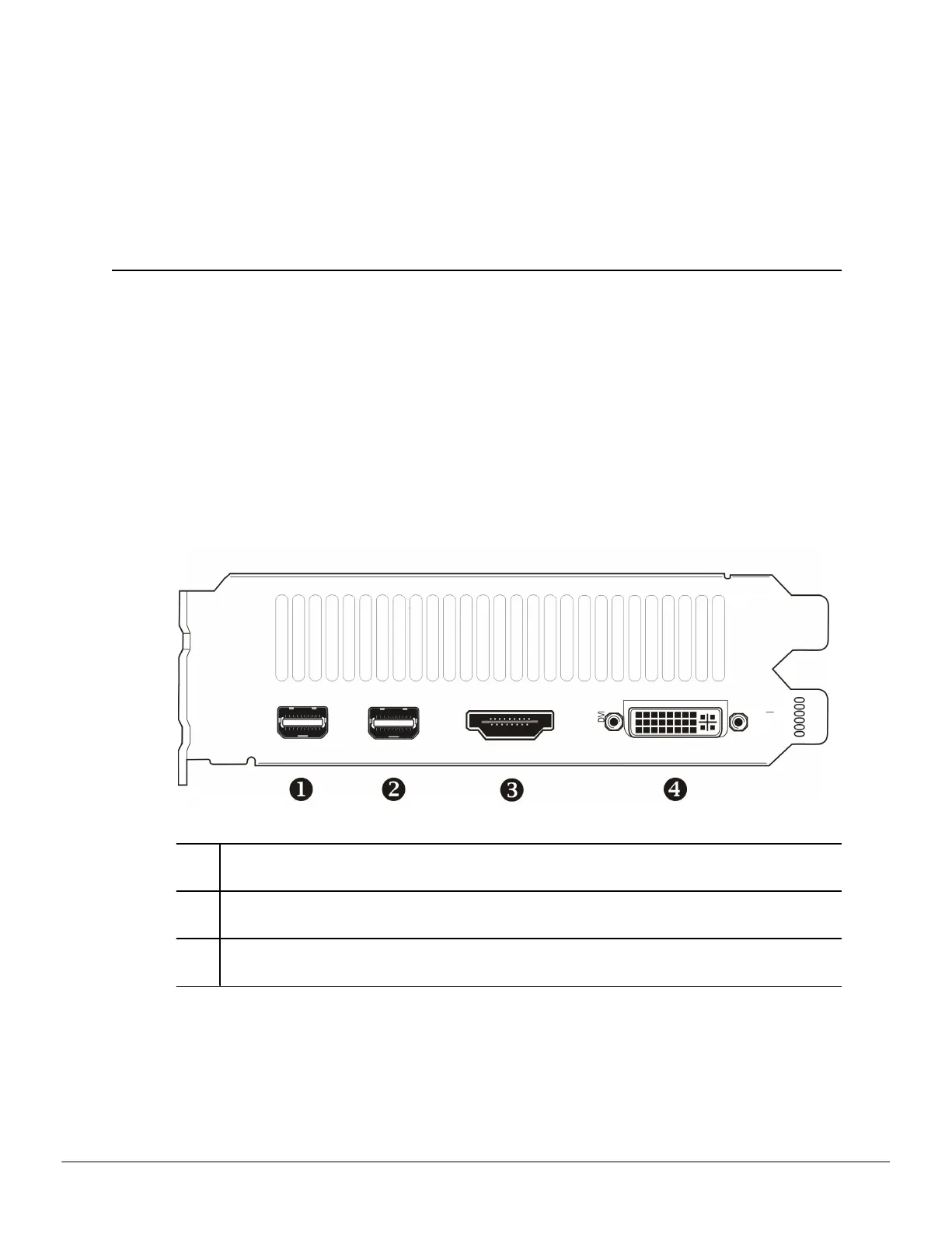

The following figure shows the display connections available on your AMD Radeon™
R9 270X/R9 270 graphics card.
Note: The baseplate may not appear exactly as depicted.
Figure 4–1 AMD Radeon™ R9 270X/R9 270 Display Connections
1, 2 Mini DisplayPort (DP+) connection. Carries video and audio signals to
DisplayPort-compliant devices.
3 HDMI™ connection (Type A). Carries video and audio signals to HDMI-
compliant devices.
4 Dual-link DVI-I connection. Provides video digital signals and HDMI output
that is compatible with most HDMI-compliant devices.
4.2 Display Configurations
The following table lists options for attaching displays that are indirectly supported by
the connections on your graphics card.
©
2014 Advanced Micro Devices, Inc. AMD Radeon™ R9 270X/R9 270 Graphics

AMD Radeon R9 270X Specifications

General

Architecture	GCN 1.0
Stream Processors	1280
Core Clock	1000 MHz
Boost Clock	1050 MHz
Memory Type	GDDR5
Memory Bus	256-bit
TDP	180 W
GPU	Curacao XT
Process Size	28 nm
Transistors	2.8 Billion
Memory Clock	1400 MHz
Memory Bandwidth	179.2 GB/s
Compute Units	20
Texture Units	80
ROPs	32
DirectX	11.2
OpenCL	1.2
PCIe Version	3.0
Display Outputs	2x DVI, 1x HDMI, 1x DisplayPort
Memory Size	2 GB
Outputs	DVI, HDMI, DisplayPort
