⚠ CAUTION!

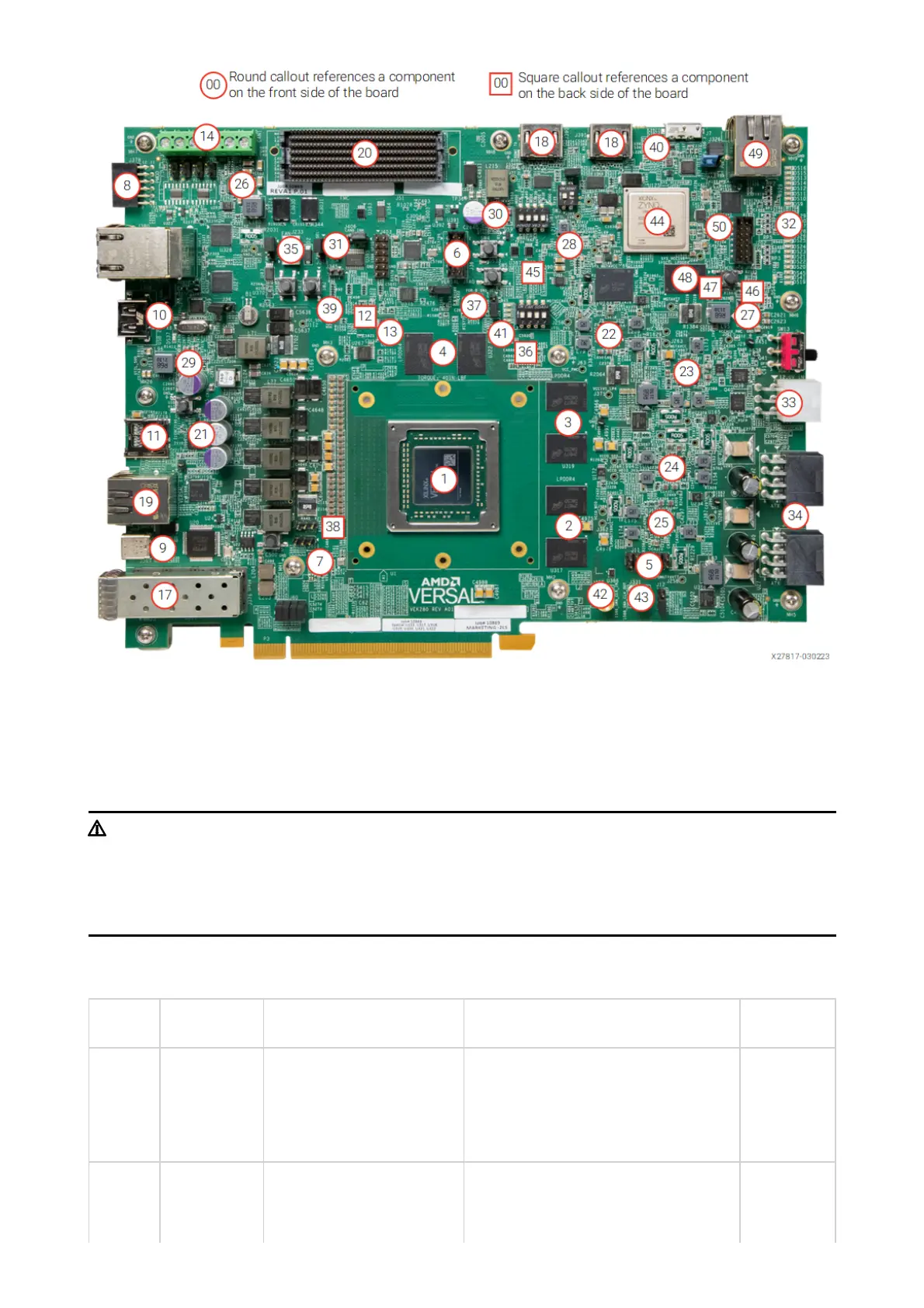

Board Component Descriptions
The following table identifies the components and references the respective
schematic (038-05127-01) page numbers.
Do NOT plug a PC ATX power supply 6-pin connector into the VEK280
board power connector J16. The ATX 6-pin connector has a different pinout than
J16. Connecting an ATX 6-pin connector into J16 damages the VEK280 board and
voids the board warranty.
Table: Board Component Locations
Callout No.Ref. Des. Feature Notes Schematic Page
1 U1 AMD Versal™
adaptive SoC
XCVE2802-2MSELSVC4072
The heatsink
1
is not shown
in Figure 1
3-16
2 U317,
U318
LPDDR4 16 GBIT
comp. memory
Micron
MT53E512M32D1ZW-046
3,22,23
