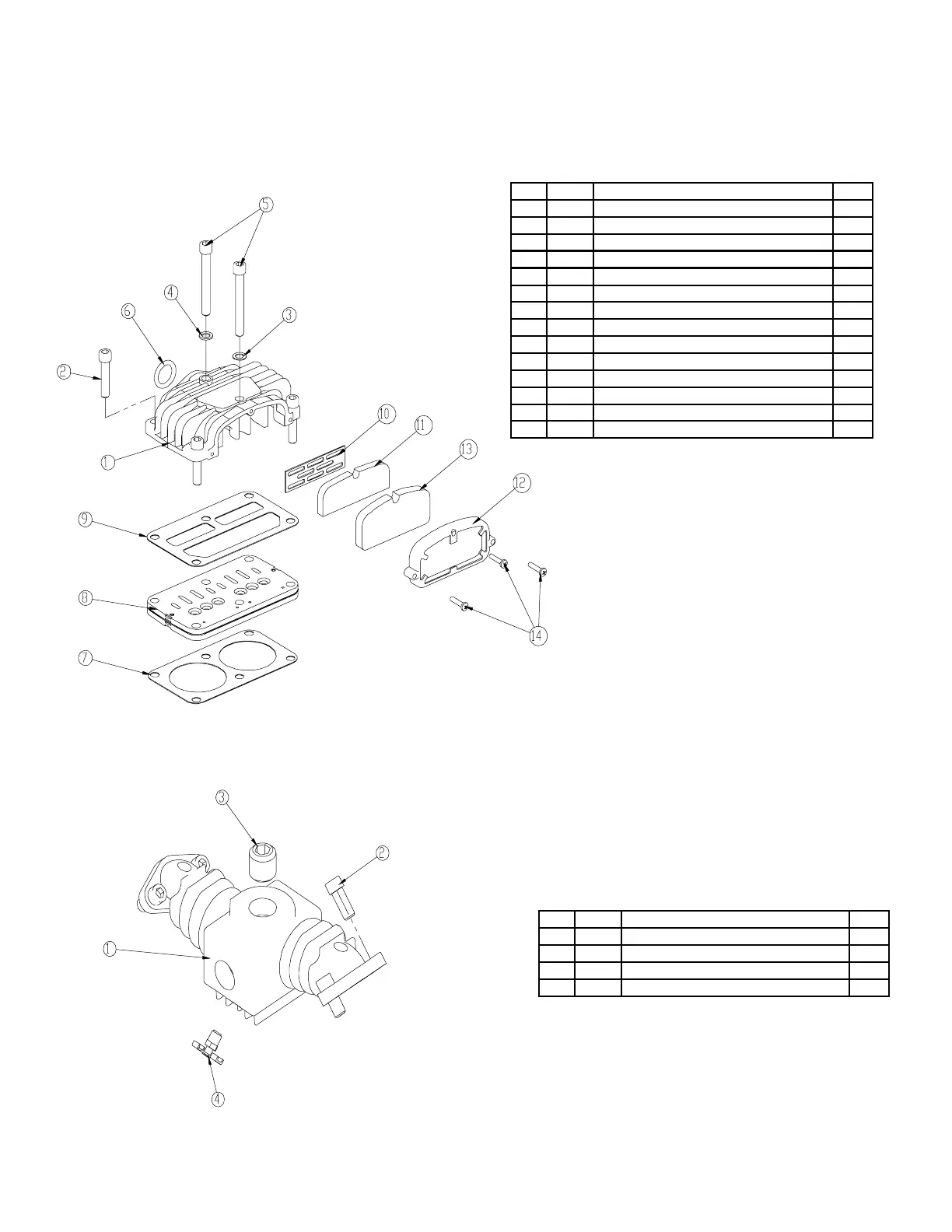

HEAD GROUP
ITEM PART DESCRIPTION QTY.
1 6030 HEAD A/C V230 O/S 1
2 C1586 CAP SCR 0.38-16X1.75 SH HEAD BOLT 4
3 5828 WASHER LONG HD BOLT (BRASS) 1
4 C0040 WASHER HD BOLT STL 1
5 C1582 BOLT 3.00 HEAD SACKED 2
6 C0291 O'RING-214 VITON 9009-75 1
7 C0043 GASKET VALVE PLATE 143/230/360 1
8 24103 VALVE PLATE SUB ASM O/S 1
9 C0310 GASKET HEAD 143/230/360/480 1
10 C0297 FILTER SCREEN 1
11 C0715 FILTER FOAM 1
12 C0294 FILTER RETAINER 1
13 C0296 FILTER FOAM 1
14 C0300 SCREW #10-32X0.88 NF 3
ITEM PART DESCRIPTION QTY.
1 6071 MANIFOLD V360 DISCHARGE 1
2 C1166 0.44 X 1.00 PULSATION TANK BOLT 4
3 6000 PLUG 0.75 NPT SQ HD CS BLK 1
4 5797 DRAIN COCK-V480 1
