The dimensions in these drawings
are rounded according to standard
measurement.

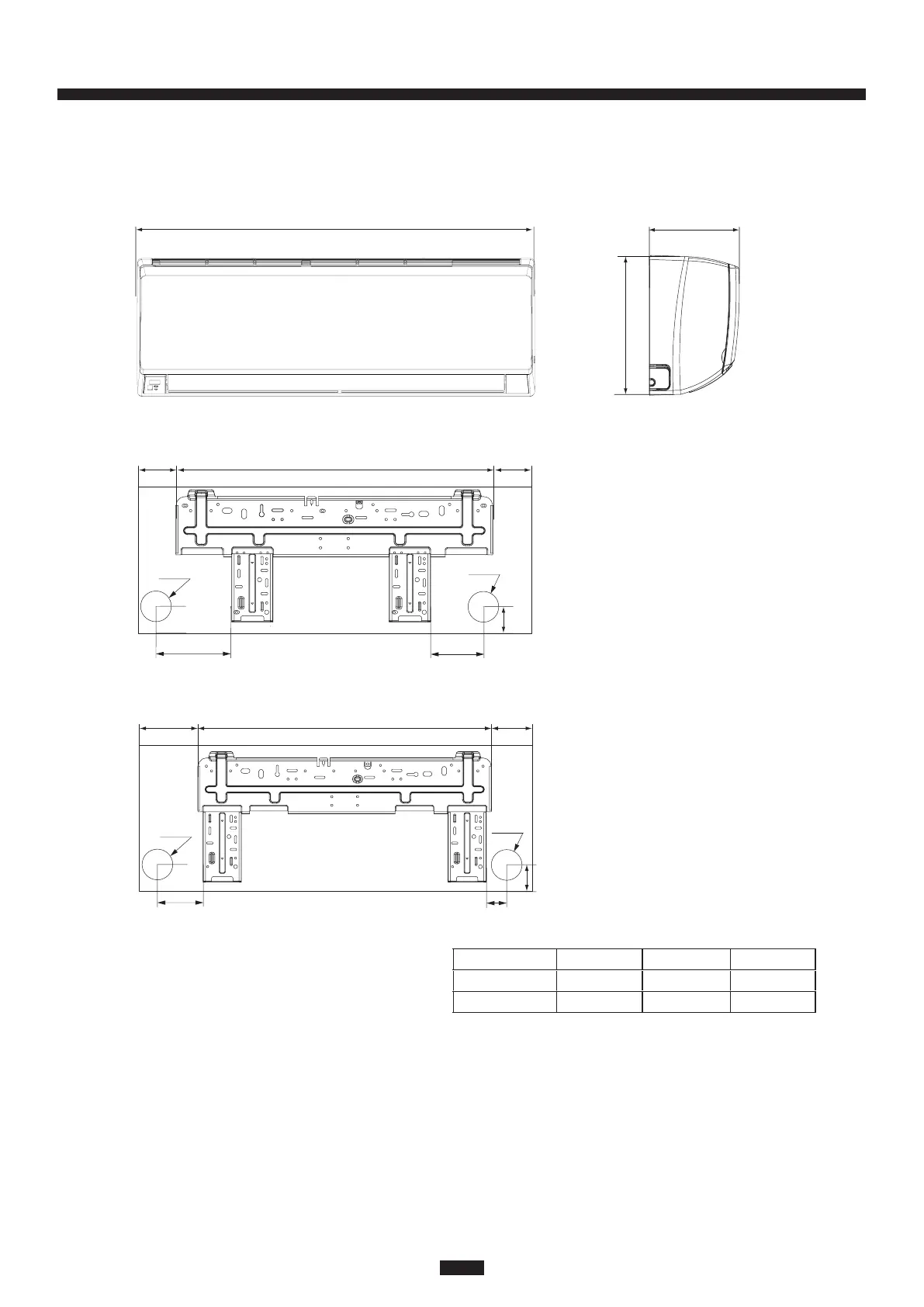

18K-24K Indoor Units
H
24 77 3/16
5 1/2
7 1/2
1 1/2
Φ2 3/16
Φ2 3/16
3 1/8
6
1 11/16
8 1/8 27 7 5/16
Φ2 3/4
Φ2 3/4
Unit:inch
18K
24K
Models W H D
18K 38 1/4 11 13/16 8 7/8
24K 42 1/2 12 13/16 9 11/16
Indoor Unit Dimensions, continued
The dimensions in these drawings
are rounded according to standard
measurement.
