AMERITRON AL-80A - Unpacking and Tube Installation; Unpacking Instructions; Tube Installation Procedure

AL-80A

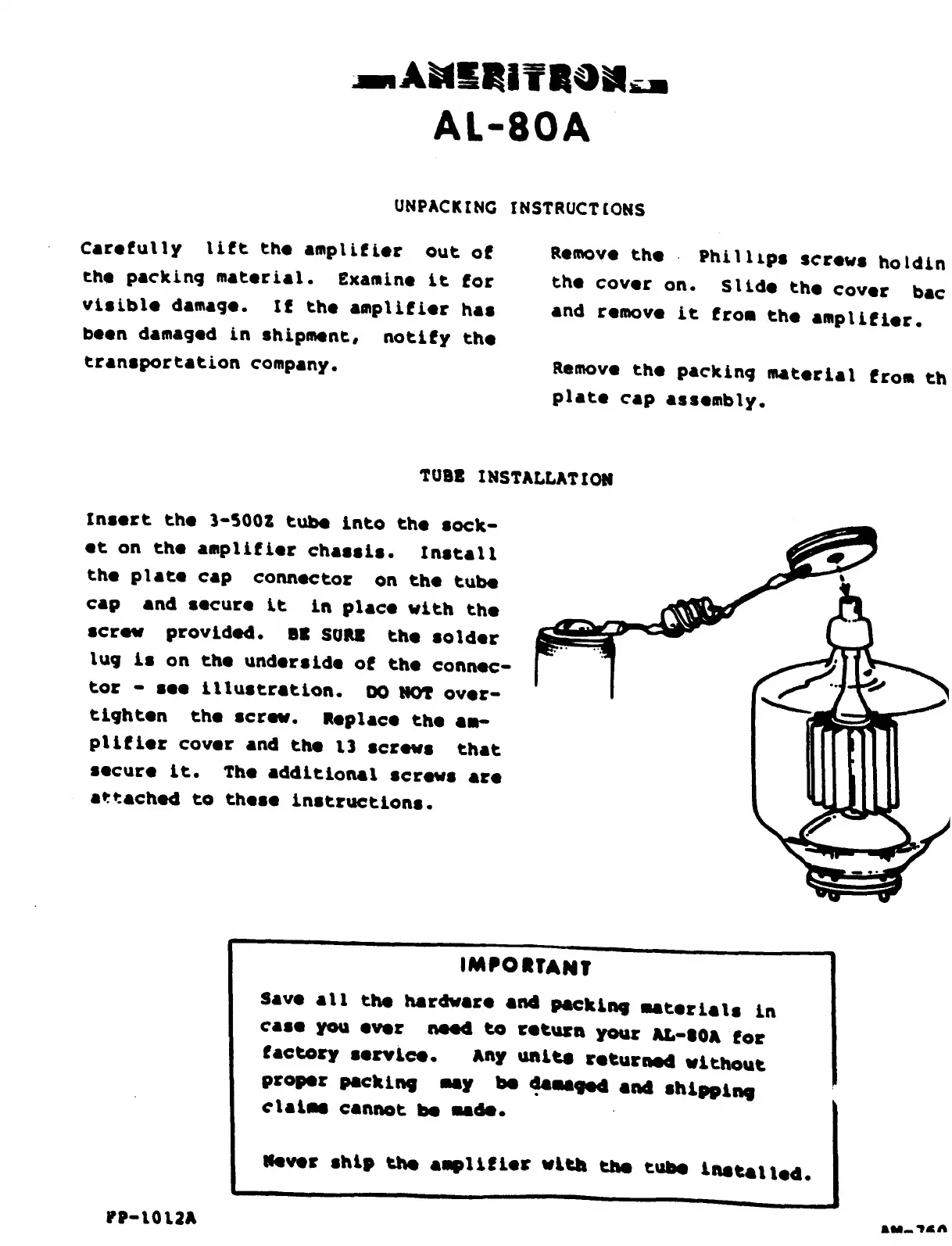

UNPACKING INSTRUCTIONS
Carefully lift th« ampUfUr out of Rtmovo tho PhilUpt screws holdin
the pecking materiel. Examine it for the cover on. Slide the cover bac
visible damage. If the amplifier has and remove it from the amplifUr.
been damaged in shipment, notify the
transportation company. Remove the packing material from th
plate cap assembly.
TUBE INSTALLATION
Insert the 3-500* tube into the sock¬
et on the amplifier chassis. Install
the plate cap connector on the tube
cap and secure it in place with the
screw provided. BE SORE the solder
lug is on the underside of the connec¬
tor - see illustration, oo NOT over¬
tighten the screw. Replace the am¬
plifier cover and the 13 screws that
secure it. The additional screws are
attached to these instructions.
IMNOtTANT
Save all the hardware and packing materials in
case you ever need to return your AL-BOR for
factory service. Any units returned without
proper packing may be imaged and shipping
claims cannot be made.
Never ship the amplifier with the tube installed.
fP-l0l2A
