AMERITRON AL-80A - Schematics and Parts List; AL-80 A Schematic Diagram; AL-80 A Tuned Input Chart; Parts List

c* cw I T i» o

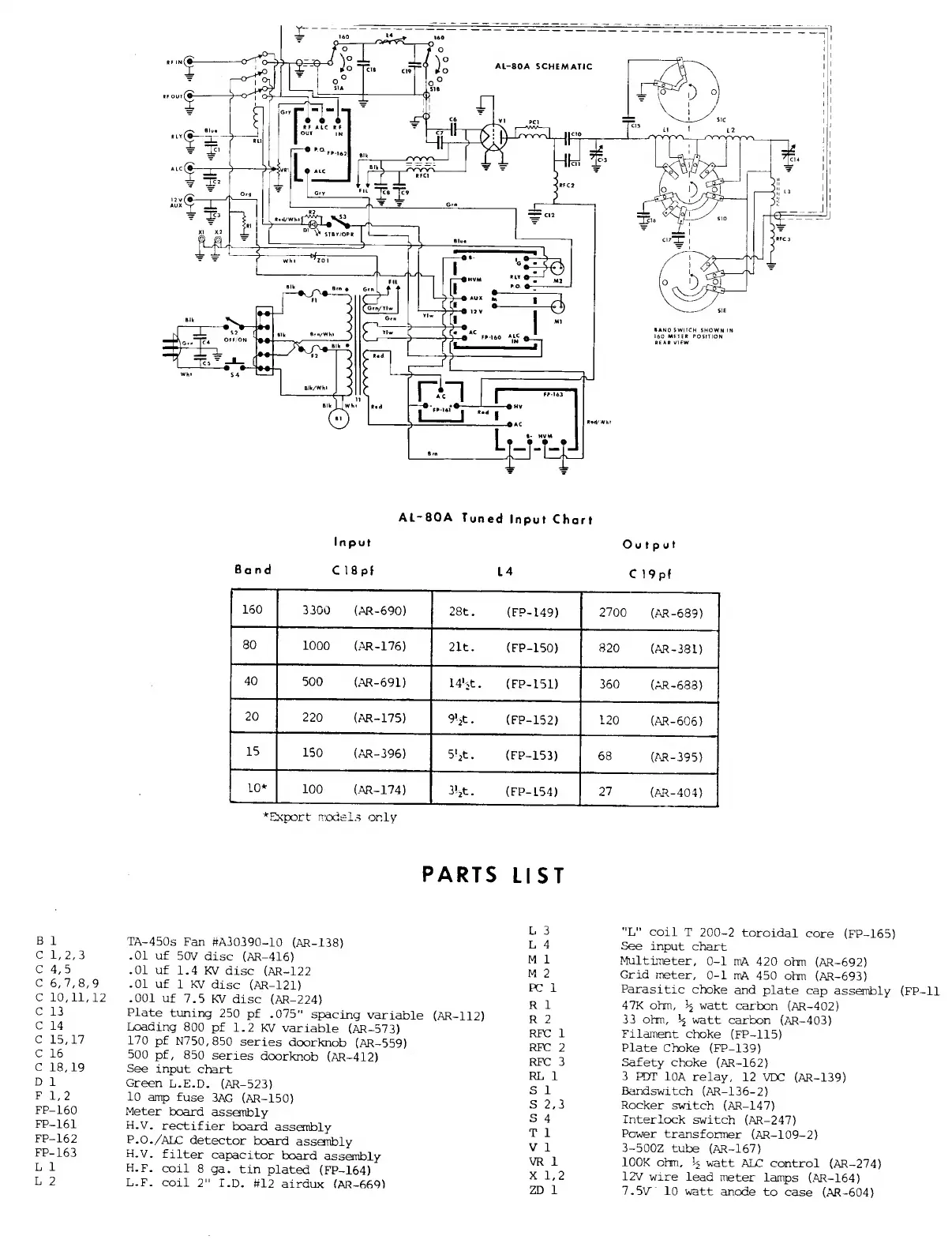

AL-80A SCHEMATIC
^r* Tr»
Bit, »f>./Wht ^
r\ ^ Bit, •
Blk/Wht J I I >
BIkjJwht t«d
nh
U t - HVM
-T-T-T
BANDSWITCH SHOWN IN
160 MtTE* POSITION
REAR VIEW
AL-80A Tuned Input Chart
Input
C 18pf
Output
C 19pf
160
3300
(AR-690)
28t.
(FP-149) 2700
(AR-689)
80
1000
(AR-176)
21t.
(FP-150) 820
(AR-381)
40
500
(AR-691)
I4'',t.
(FP-151) 360
(AR-683)
20
220
{AR-175)
9>,t.
(FP-152) 120
(AR-606)
15
150
(AR-396)
5'.t.
(FP-153)
68
(AR-395)
10*
100
(AR-174)
3'.t.
(FP-154)
27
(AR-404)
*Export model.s only
PARTS LIST
B 1
C 1,2,3
C 4,5
C 6,7,8,9
C 10,11,12
C 13
C 14
C 15,17
C 16
C 18,19
D 1
F 1,2
FP-160
FP-161
FP-162
FP-163
L 1
L 2
TA-450S Fan ftA30390-10 (AR-138)
.01 uf 50V disc (AR-416)
.01 uf 1.4 KV disc (AR-122
.01 uf 1 KV disc (AR-121)
.001 uf 7.5 KV disc (AR-224)
Plate tuning 250 pf .075" spacing variable (AR-112)
Loading 800 pf 1.2 KV variable {AR-573)
170 pf N750,850 series doorknob (AR-559)
500 pf, 850 series doorknob (AR-412)
See input chart
Green L.E.D. (AR-523)
10 amp fuse 3AG {AR-150)
Meter board assembly
H.V. rectifier board assanbly
P.O./ALC detector board assenbly
H.V. filter capacitor board assembly
H.F. coil 8 ga. tin plated (FP-164)
L.F. coil 2" I.D. #12 airdux (AR-669)
"L" coil T 200-2 toroidal core (FP-165)
See input chart
Multimeter, 0-1 mA 420 ohm {AR-692)
Grid meter, 0-1 mA 450 ohm (AR-693)
Parasitic choke and plate cap assembly (FP-11
47K ohm, watt carbon (AR-402)
33 ohm, watt carbon (AR-403)
Filament choke (FP-115)
Plate Choke (FP-139)
Safety choke (AR-162)
3 PDT lOA relay, 12 VDC (AR-139)
Bandswitch (AR-136-2)
Rocker switch (AR-147)
Interlock switch (AR-247)
Power transformer (AR-109-2)
3-500Z tube (AR-167)
lOOK ohm, watt ALC control (AR-274)
12V wire lead meter lamps (AR-164)
7.5V 10 watt anode to case (AR-604)
