AMERITRON AL-80A - Technical Specifications; Input Specifications; Output Specifications; Power Supply Specifications

DIVISION OF
PRIME INSTRUMENTS, INC.
9805 Walford Ave. • Cleveland, Ohio 44102 • 216/651-1740
SYMBOL OF ENGINEERING INTEGRITY ... QUALITY
WORKMANSHIP ... RELIABLE LONG-LIFE PERFORMANCE

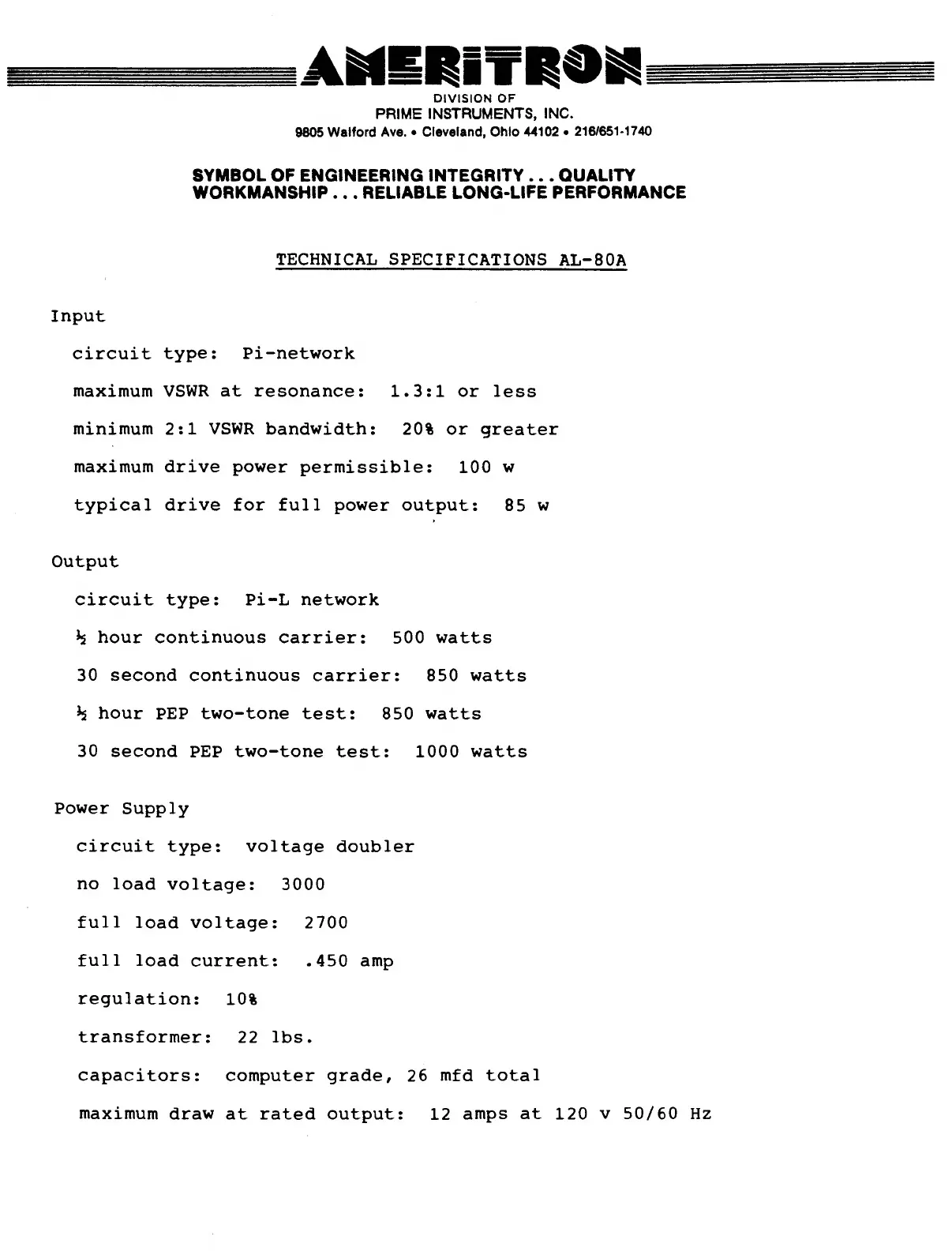

TECHNICAL SPECIFICATIONS AL-80A
Input
circuit type; Pi-network
maximum VSWR at resonance; 1.3;1 or less
minimum 2;1 VSWR bandwidth; 20% or greater
maximum drive power permissible; 100 w
typical drive for full power output; 85 w
Output
circuit type; Pi-L network
h hour continuous carrier; 500 watts
30 second continuous carrier; 850 watts
h hour PEP two-tone test; 850 watts
30 second PEP two-tone test; 1000 watts
Power Supply
circuit type; voltage doubler
no load voltage; 3000
full load voltage; 2700
full load current; .450 amp
regulation; 10%
transformer; 22 lbs.
capacitors; computer grade, 26 mfd total
maximum draw at rated output; 12 amps at 120 v 50/60 Hz
