AMERITRON ALS-600PS - Page 14

14

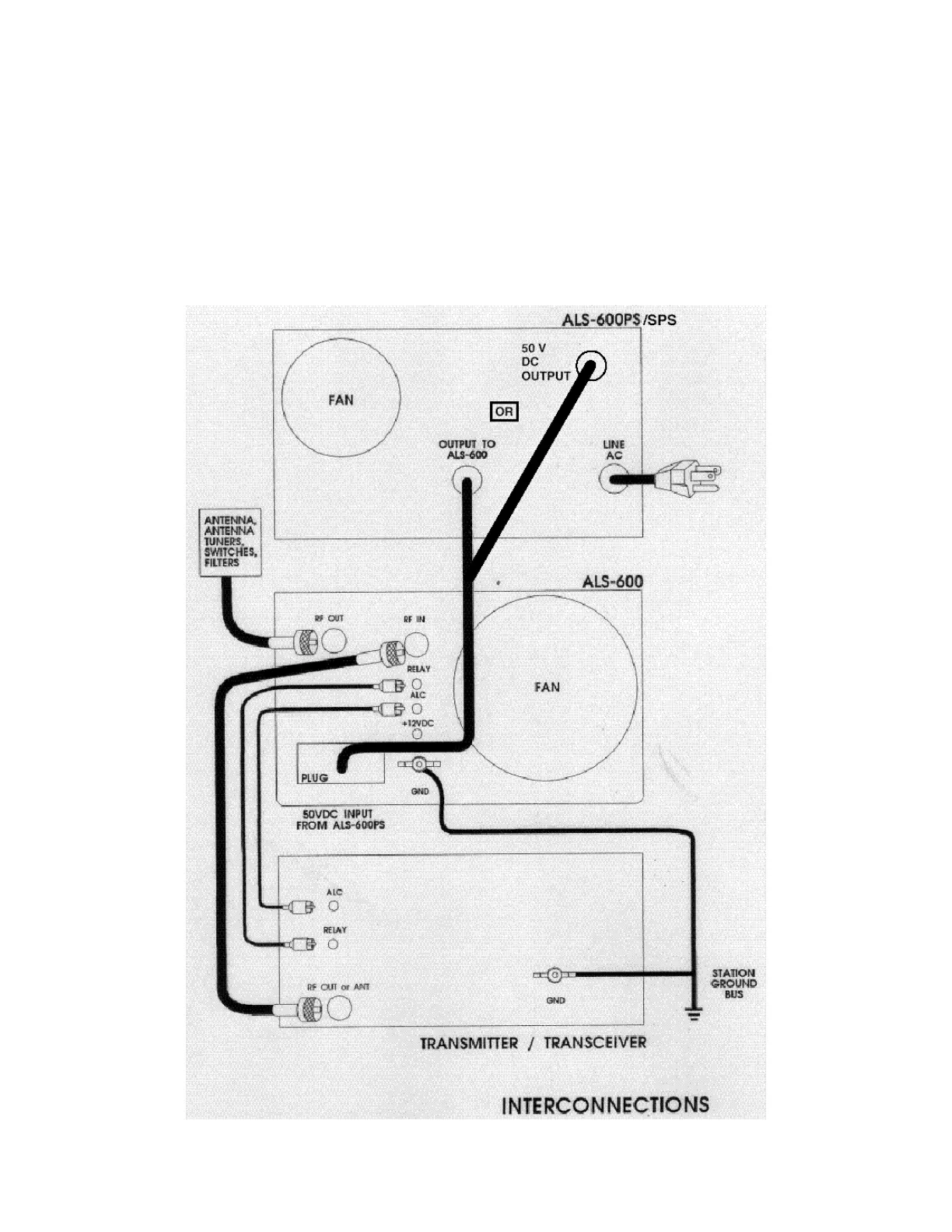

5. Connect the ALC jack to the exciter ALC terminals with a shielded audio type cable
and standard phono connector.
6. Connect the female power connector from the ALS-600PS/SPS supply to the multi-
pin male connector on the ALS-600 rear chassis.
7. The 12V connector can be used to supply 12-14 Vdc at less than 200 mA for station
accessories.
