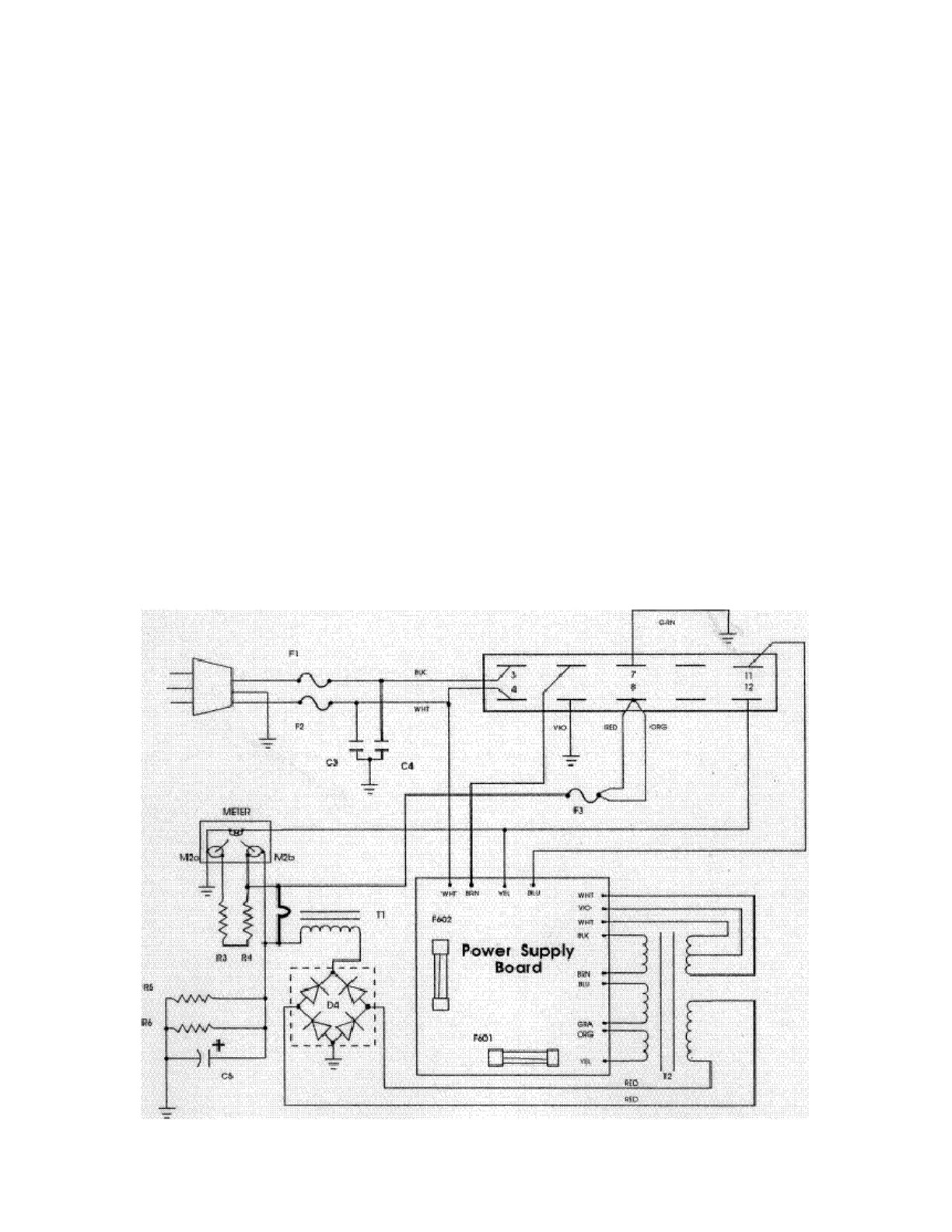

ALS-600PS Chassis Components
Designator Description Part Number
B2 3" muffin fan 410-3583
for B2 fan guard 410-4584
C5 15000 uF 80 Vdc capacitor & 203-0680
mounting bracket
C3,4 .01 uF 250 Vac disc capacitor 200-2122
D1 50 amp bridge rectifier 300-9646
F601 2 amp slowblow IvIDL type 755-1102
F602 2 amp AGC 755-1149
F1,2 15 amp fuses for 95-110 Vac, 755-1426
12 amp fuses for 105-130 Vac or 755-1412
8 amp fuses for 200-240 Vac operation 755-1432
F3 25 amp high voltage 755-1428
for F3-5 chassis mount fuse holders 755-2148
M2a, M2b dual needle 60 volt / 25 ampere scale 400-3600
P1 Power supply plug 610-6012
R3,4 150K 1/4 watt resistor 100-5150
R5,6 100 ohm 50 watt resistor 103-9810
T1 choke 406-1646
T2 power transformer 406-3002
