24

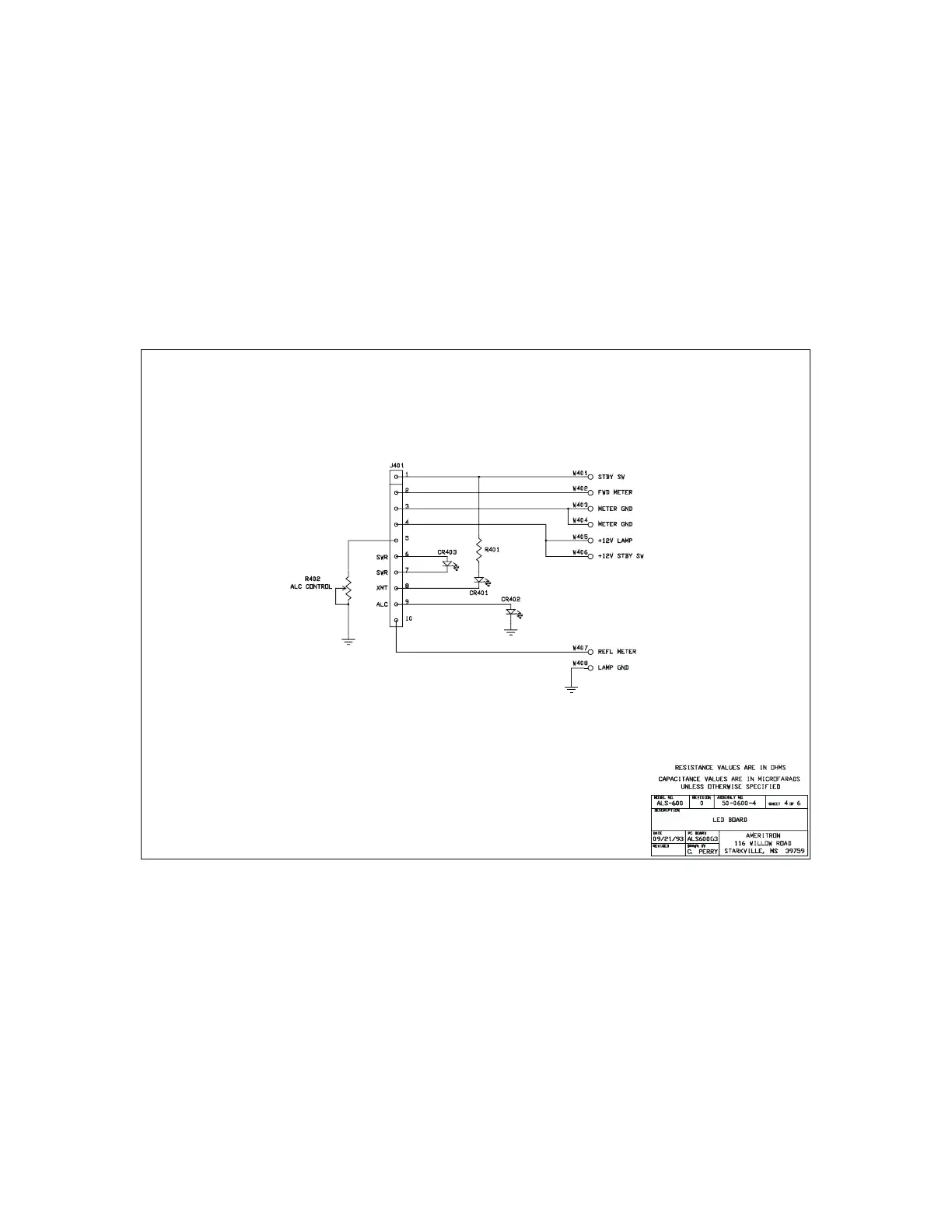

LED Board
50-0600-4
Designator Description Part Number
CR401 Green LED 320-0500
CR402 Yellow LED 320-0300
CR403 Red LED 320-0522-1
J401 10 pin header 612-0110
R401 470 ohm 1/4 watt 100-2470
R402 1K potentiometer 105-1301
