SECTION 3 – MAINTENANCE 3-7

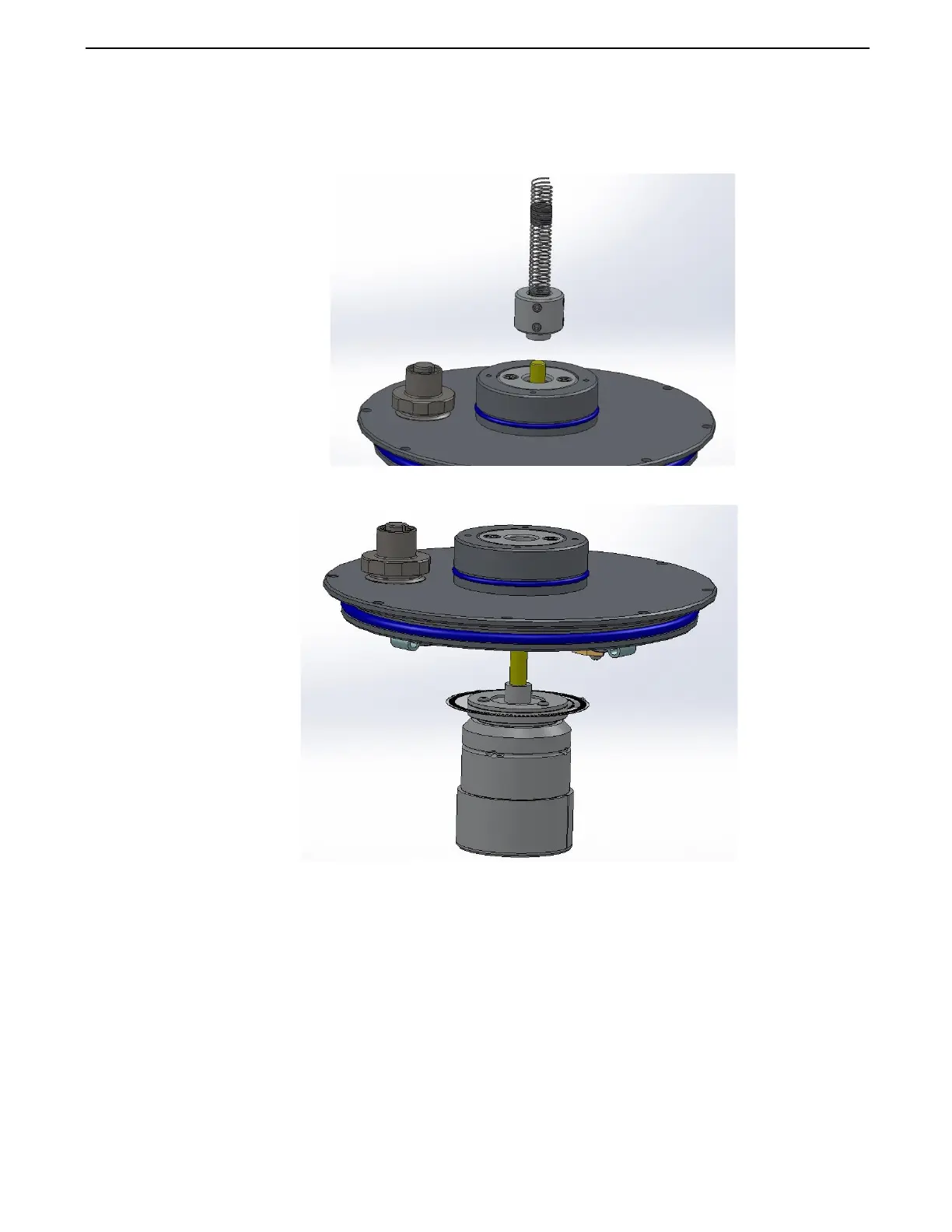

4. Unthread top cap and loosen set screws at top of spring assembly.
5. Remove screws from spring housing and remove spring housing.
6. Loosen set screws along the bottom of the spring holder and remove from shaft.
7. Remove the mag drive from the bearings.
8. Remove bearing retainers from each end of the housing and push out bearings. Check
bearings for friction by lightly spinning by hand. The bearings should spin freely.
Replace any bad bearings.
Caution: Bearings must be clean and dry. Do not oil or allow bearings to come into
close contact with magnets, as this will magnetize the bearings, and ruin
them.
