3-6 SECTION 3 – MAINTENANCE
Encoder Assembly
Replacement of the Encoder/Bearings

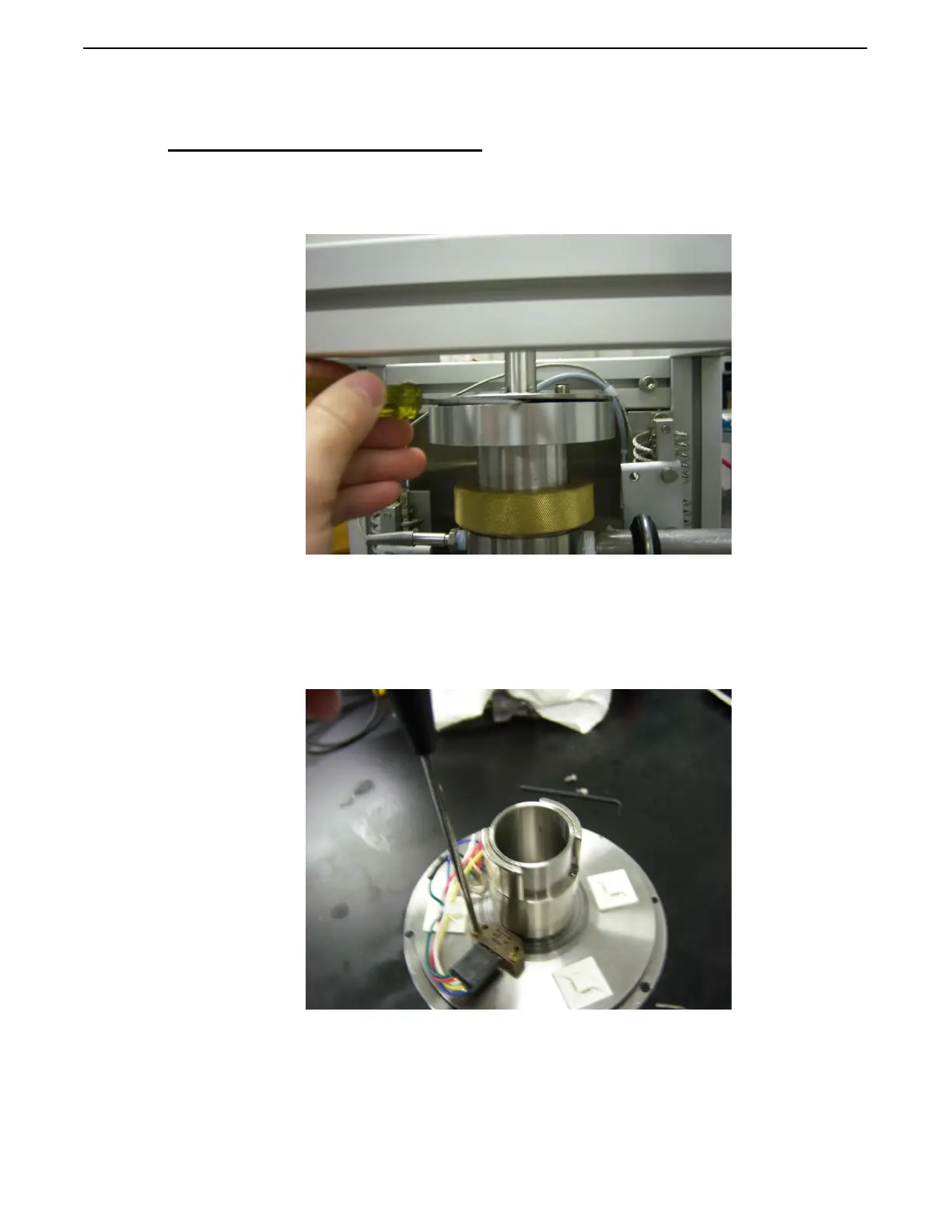

1. Remove screws at the top of the measurement head. Carefully, remove the
encoder/spring assembly from the measurement head. The encoder/spring assembly is
sealed with an O-ring.
2. With the encoder mechanism exposed, the assembly must be handled carefully to avoid
damage to the components. Use caution when handling the assembly due to the strong
magnets.
3. Remove the two screws holding the encoder reader to the underside of the cap. Caution,
the mag drive will attract the screwdriver.
To Next Page
