Ametek JOFRA ATC-125 A Service Manual

58 18-09-2007 122770 06
Placement of Wires:
Power Red 0,75mm
2
CN1 +
Power Black 0,75mm
2
CN1 –
Signal Orange 0,25mm
2
CN7 PIN 1 CTRL. V+
Signal Red 0,25mm
2
CN7 PIN 4 Drv. Sig.
Signal Brown 0,25mm
2
CN7 PIN 5 CN7 Error
Signal Black 0,25mm
2
CN7 PIN 8 0V out

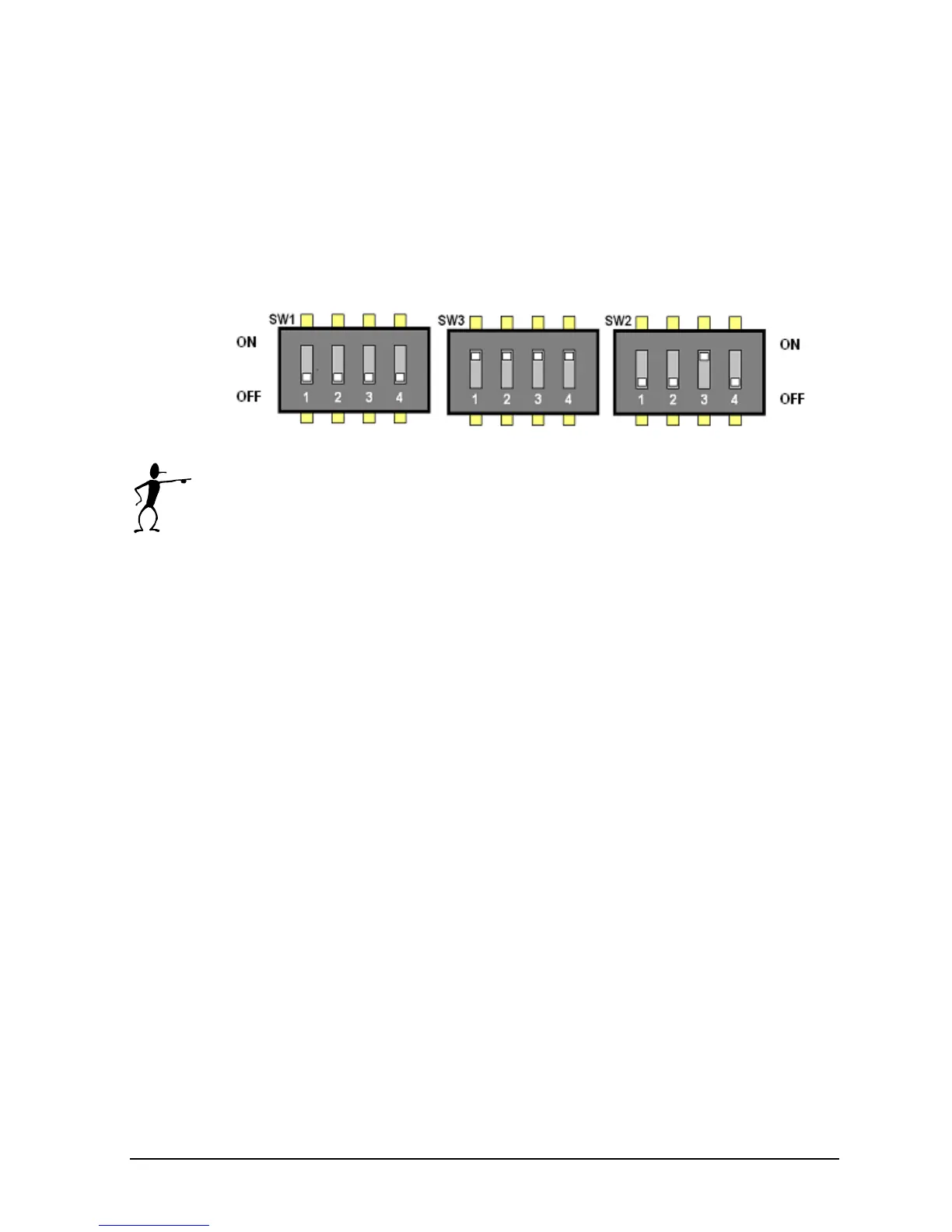

DIP-Switch Settings:
Note…
Instruments should be reassembled in reverse order. Ensure
that all parts are in good working order and that all wires are
connected correctly.
