Ametek JOFRA ATC-650 B Service Manual

40 18-09-2007 122770 06
C. Removal of Top Frame, all Models
Remove the screws and washers
holding the top frame in place.
ATC-125 only
First remove the 6 screws holding
the top plate with globe.
The top frame can now be removed
entirely to expose the interior of the
instrument.

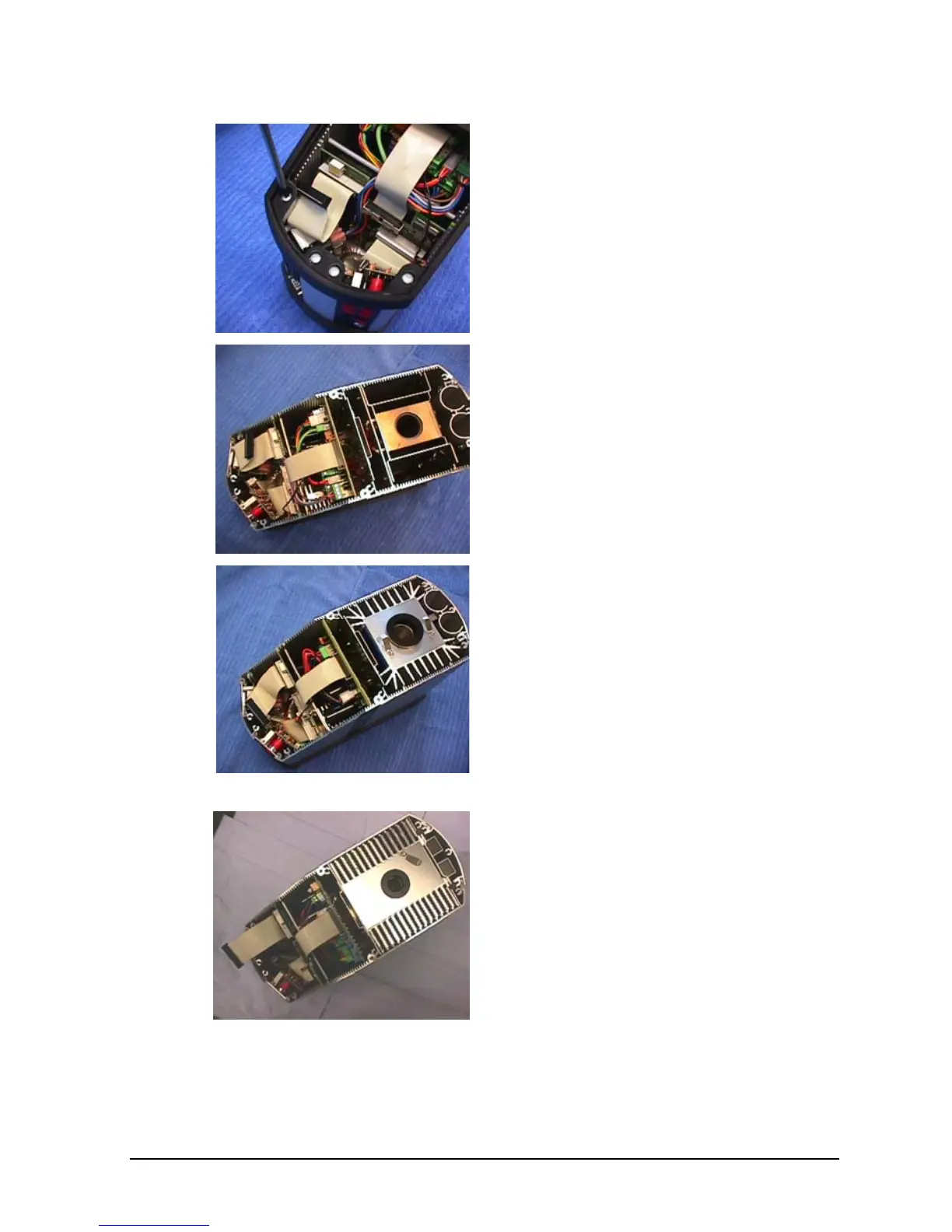

This picture shows an ATC-650 B.
This picture shows an ATC-155 B.
This picture shows an ATC-157 B.
