Landcal Blackbody Source
Type R1500T
User Guide
Page 8
Ceramic insulation
Set of 6 elements
held in place with
support brackets
Painted back panel
Front insulation plug
SiC target cavity
Control thermocouple
Stainless steel
front plate

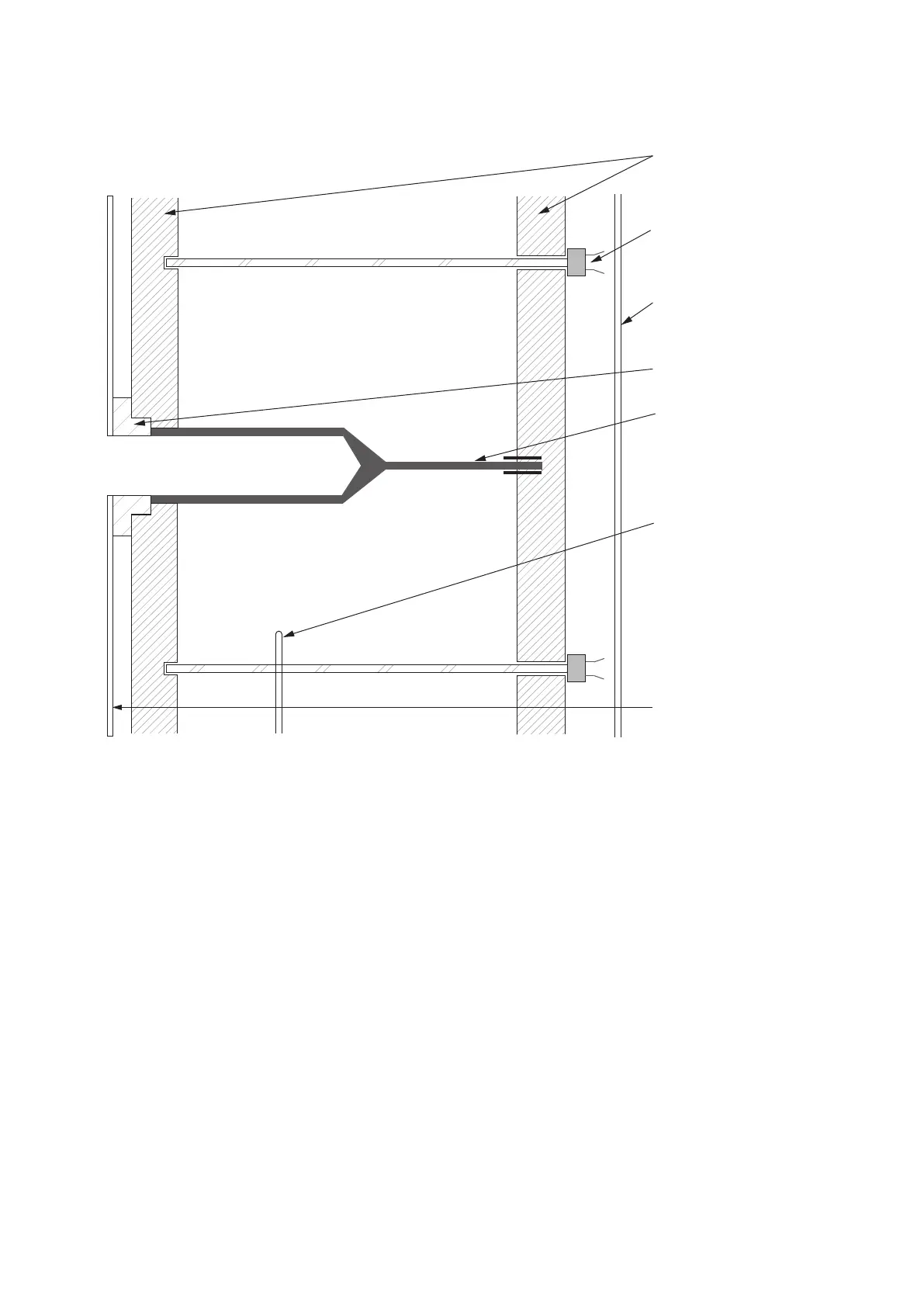

Fig. 3 Assembly diagram for the LANDCAL Blackbody type R1500T
