Ametek Sorensen XG 6-220 - Figure 5-18 SCPI Status Reporting Model

Remote Operation
5-30 M370430-01 Rev F
QUEStionable Status

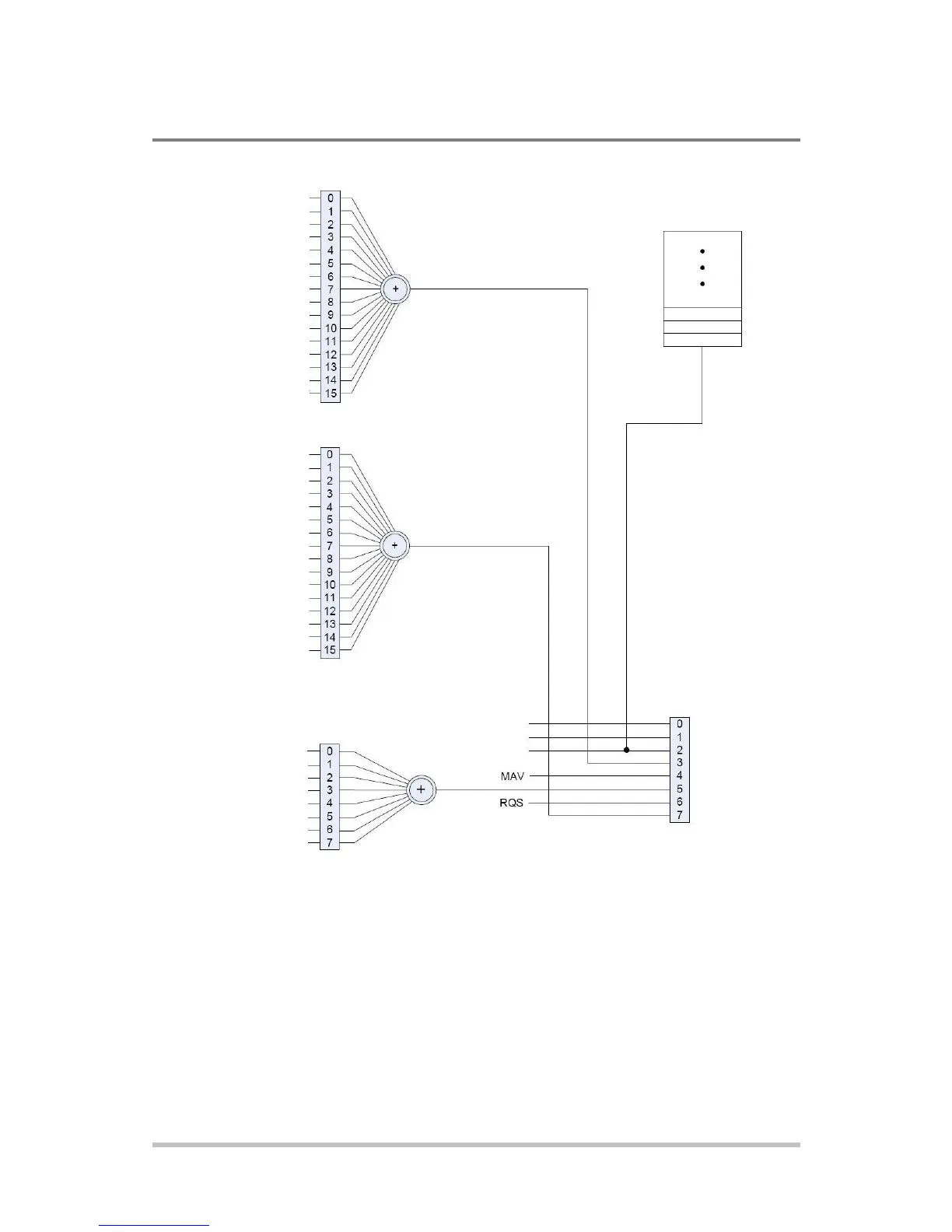

Figure 5-18 SCPI Status Reporting Model
VOLTage
CURRent
TIME
POWer
TEMPerature
FREQuency
PHASe
MODulation
CALIbration
Available to designer
Available to designer
Available to designer
Available to designer
INSTrument Summary
Command Warning
Not Used*
CALIbrating
SETTing
RANGing
SWEeping
MEASuring
Waiting for TRIGger Summary
Waiting for ARM Summary
CORRecting
Available to designer
Available to designer
Available to designer
Available to designer
Available to designer
INSTrument Summary
PROGram Running
Not Used*
Operation Complete
Request Control
Query Error
Device Dependent Error
Execution Error
Command Error
User Request
Power On
Available to designer
Available to designer
Available to designer
Standard Event
Status Register
Status Byte
OPERation Status
Error/Event Queue
