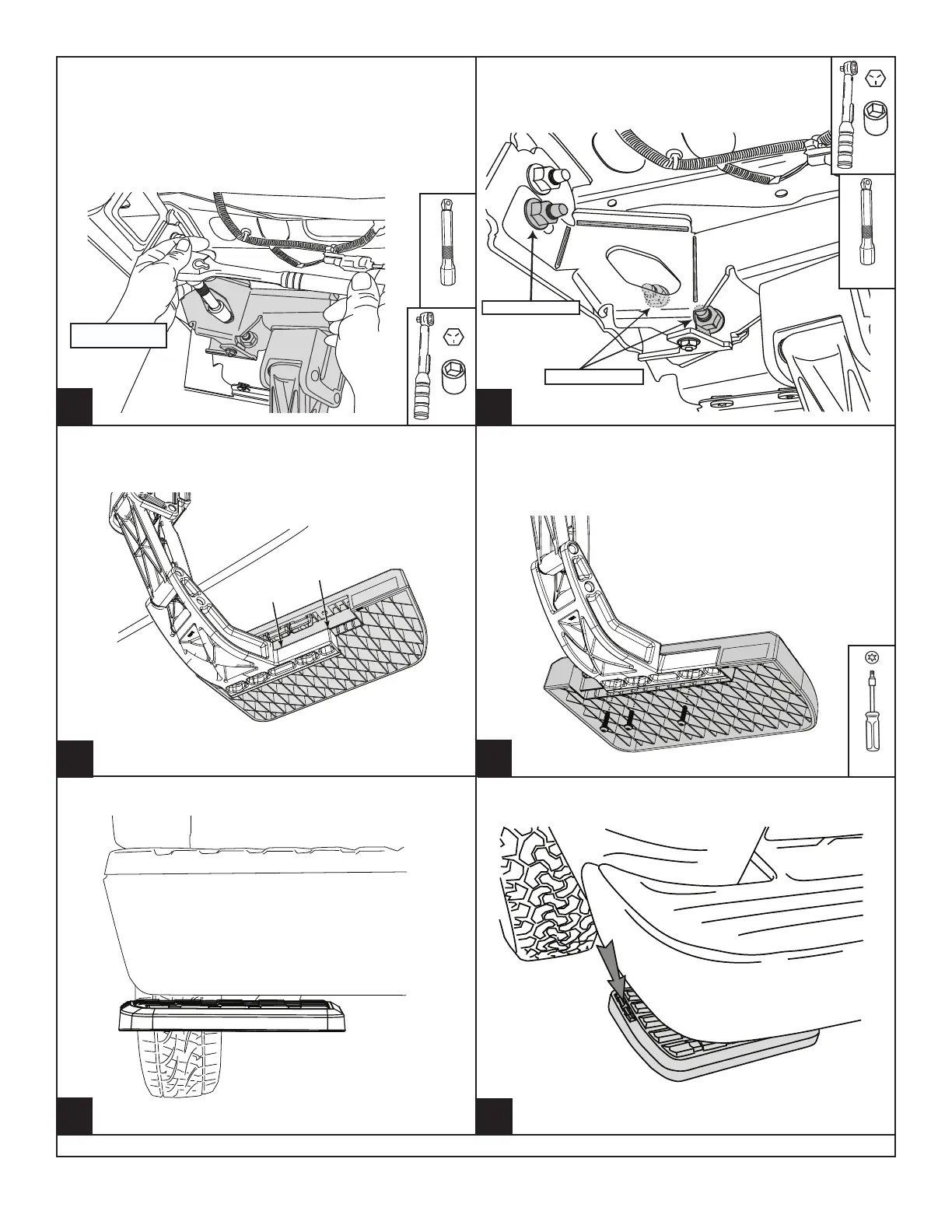

IM75313 rev 11.10.22
2/3
www.amp-research.com
111 ft-lbs/ 150Nm
86 ft-lbs/ 116 Nm
21mm
Set Bracket assembly into position over key hole
and slide over, ush to frame rail. Reinsert nut
from step 4, and then tighten all nuts, making sure
bracket remains ush and square. Do not Torque!
NOTE: Wobble extension recommended.
21mm
6” Ext
Snug Bolts
6” Ext
Note: Verify bumper alignment before
torquing bolts.
T-25
Insert PT Screws into corresponding holes and
torque to 6 ft-lbs / 8 N.m.
NOTE: Overtightening may damage step pad.
5
7
6
8
9
10
