Mono
Bridged
Dual
Mono
SVT-4 PRO Bass Guitar Amplifier SVT-4 PRO Bass Guitar Amplifier
5
PWR
AMP B
TO
INPUT
JACK
TO
INPUT
JACK
PWR
AMP A
OUT
(STEREO)
12

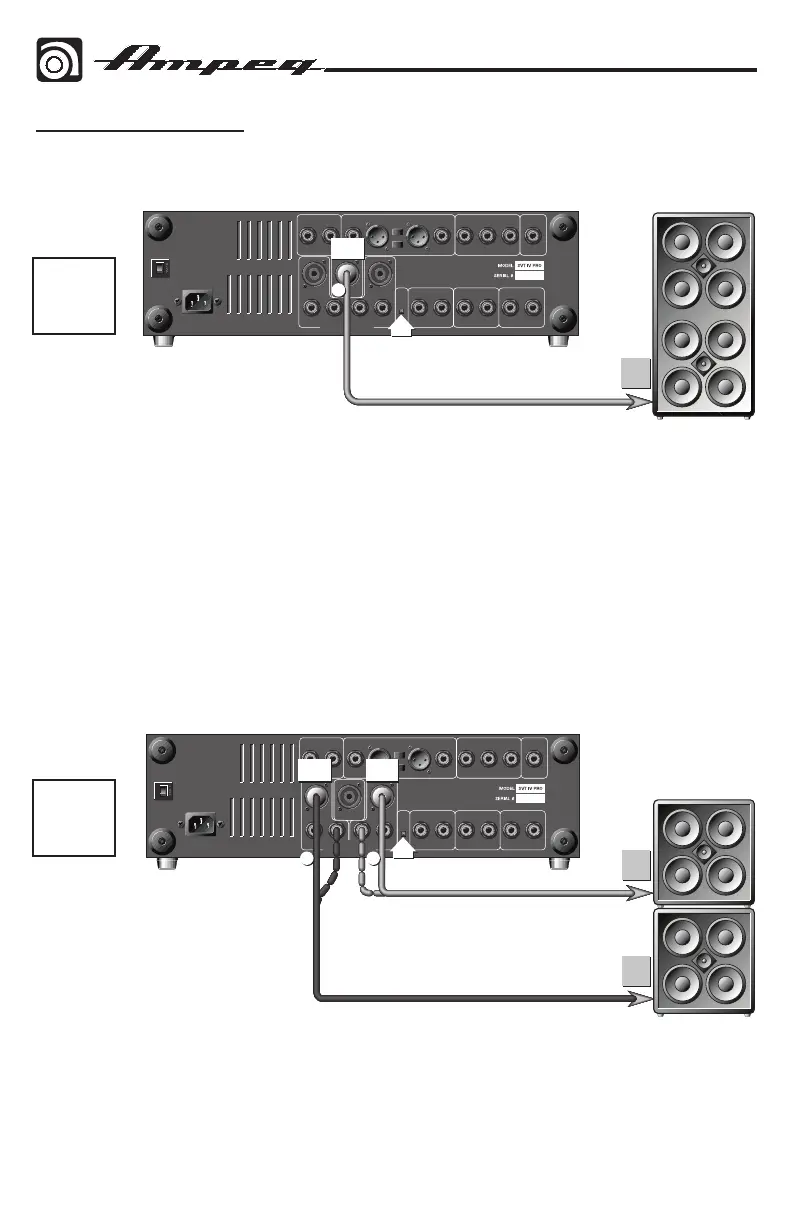

Hook-up Diagrams
MONO
BRIDGE
IN
(MONO)
1
TO
INPUT
JACK
In this example, the SVT-4 PRO’s two internal power amplifiers are bridged together
to produce maximum output power. Engage the Stereo/Mono Bridge switch [Mono Bridge
position]. Connect a heavy duty speaker cable terminated with a Speakon connector
[pin 1+ = “+”, pin 1– = “–”] from the SVT-4 PRO’s Mono Bridge Output jack to the input jack
of a speaker cabinet capable of handling the extremely high output power.
Note: Be absolutely certain that the cabinet(s) are able to handle the extremely high output
power of the amp in this mode.
In this example, the SVT-4 PRO’s two internal power amplifiers will each power a set of
full range cabinets. Disengage the Stereo/Mono Bridge switch [Stereo position]. Connect a
speaker cable from the SVT-4 PRO’s Power Amp A Speaker Output jack to the input jack(s)
of a set of full range speakers. Next, connect a speaker cable from the SVT-4 PRO’s Power
Amp B Speaker Output jack to the input jack(s) of another set of full range speakers.
Full
Range
Cabinet(s)
SVT-4 PRO
SVT-4 PRO Full
Range
Cabinets
