Ampeg SVT-810E Owner's Manual

SVT-810E/AV Dual Bass Cabinet
3
Jackplate
POWER
HANDLING:
800W RMS
(MONO)
400W RMS
(DUAL)
IMPEDANCE:
4 OHMS
(MONO)
8 OHMS
(DUAL)
SPEAKONS
®
1+ = POS (+)
1- = NEG (-)
UPPER 4X10-DUAL MODE ONLY
LOWER 4X10-DUAL MODE ONLY
MONO INPUTS
-or-
Designed in USA | Made in China
26580 Agoura Rd., Calabasas, CA 91302 USA
SERIAL NUMBER
SVT-810E
3
2
1

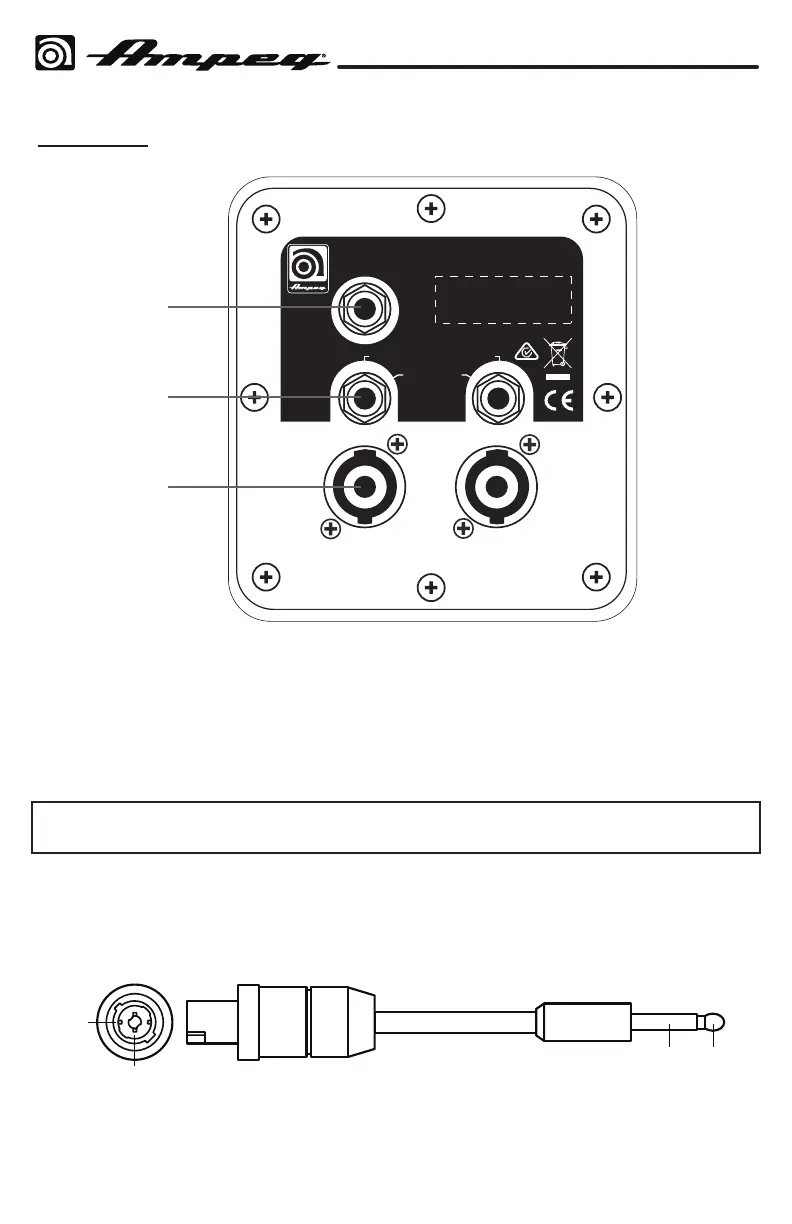

1. 1/4" Upper 4x10 Dual Mode Input Jack*
2. 1/4" Lower 4x10 Dual Mode or Mono Mode Input / Output Jacks
3. Speakon Lower 4x10 Dual Mode or Mono Mode Input / Output Jacks
*The cabinet operates in Dual Mode whenever a connector is inserted into the 1/4" Upper 4x10
Dual Mode input jack [1]. Otherwise, the cabinet operates in the single 8x10 Mono Mode.
Speakon to 1/4" Wiring Diagram
1+
1-
1+
1-

Ampeg SVT-810E Specifications

General

Amplifier class	-
Frequency range	58 - 5000 Hz
Audio output channels	- channels
Peak power per channel	800 W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	- %
Product color	Black
Connectivity technology	Wired
Package weight	74800 g

Weight and Dimensions

Depth	406.4 mm
Width	660.4 mm
Height	1219 mm
Weight	63500 g
