Ampeg SVT-810E Owner's Manual

SVT-810E/AV Dual Bass Cabinet
4

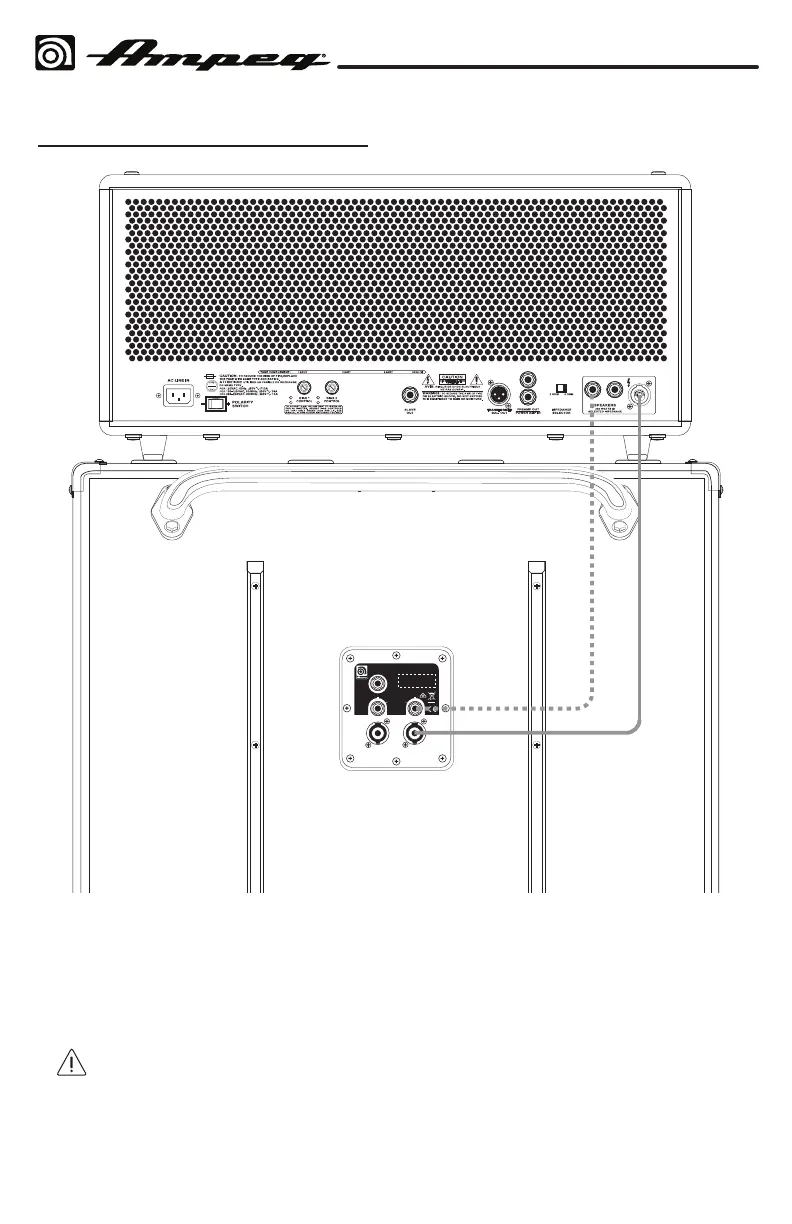

Suggested Hookup Diagrams
POWER
HANDLING:
800W RMS
(MONO)
400W RMS
(DUAL)
IMPEDANCE:
4 OHMS
(MONO)
8 OHMS
(DUAL)
SPEAKONS
®
1+ = POS (+)
1- = NEG (-)
UPPER 4X10-DUAL MODE ONLY
LOWER 4X10-DUAL MODE ONLY
MONO INPUTS
-or-
Designed in USA | Made in China
26580 Agoura Rd., Calabasas, CA 91302 USA
SERIAL NUMBER
SVT-810E
Combined (Mono) Hookup
In the example above, a speaker cable with Speakon ends connects from the speaker
output of the amplier to the one of the Speakon inputs of the Ampeg SVT-810E/AV
cabinet. Alternatively, a speaker cable with 1/4" ends can be used to connect from an
amplier's 1/4" speaker output to one of the Lower 4x10 Dual Mode/Mono 1/4" inputs of
the SVT-810E/AV. This conguration allows the amplier to drive all 8x10 speakers.
WARNING: Always use good quality (non-shielded) speaker cables. Never use
(shielded) instrument cables to connect speakers to an amplier. Also, do not use
both cable routes in the examples listed above. Use one route or the other, but never
both simultaneously!

Ampeg SVT-810E Specifications

General

Amplifier class	-
Frequency range	58 - 5000 Hz
Audio output channels	- channels
Peak power per channel	800 W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	- %
Product color	Black
Connectivity technology	Wired
Package weight	74800 g

Weight and Dimensions

Depth	406.4 mm
Width	660.4 mm
Height	1219 mm
Weight	63500 g
