SVT-810E/AV Dual Bass Cabinet
5
XLR line out
MICRO-VR
REVISION
SERIAL NUMBER
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
AVIS:
RISQUE DE CHOC ELECTRIQUE — NE PAS OUVRIR
speaker outputs
150W @ 8
Ω
200W @ 4
Ω
4
Ω
minimum
XLR line out
MICRO-VR
speaker outputs
150W @ 8
Ω
200W @ 4
Ω
4
Ω
minimum
REVISION
SERIAL NUMBER
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
AVIS:
RISQUE DE CHOC ELECTRIQUE — NE PAS OUVRIR
POWER
HANDLING:
800W RMS
(MONO)
400W RMS
(DUAL)
IMPEDANCE:
4 OHMS
(MONO)
8 OHMS
(DUAL)
SPEAKONS
®
1+ = POS (+)
1- = NEG (-)
UPPER 4X10-DUAL MODE ONLY
LOWER 4X10-DUAL MODE ONLY
MONO INPUTS
-or-
Designed in USA | Made in China
26580 Agoura Rd., Calabasas, CA 91302 USA
SERIAL NUMBER
SVT-810E
Split (Dual) Hookup

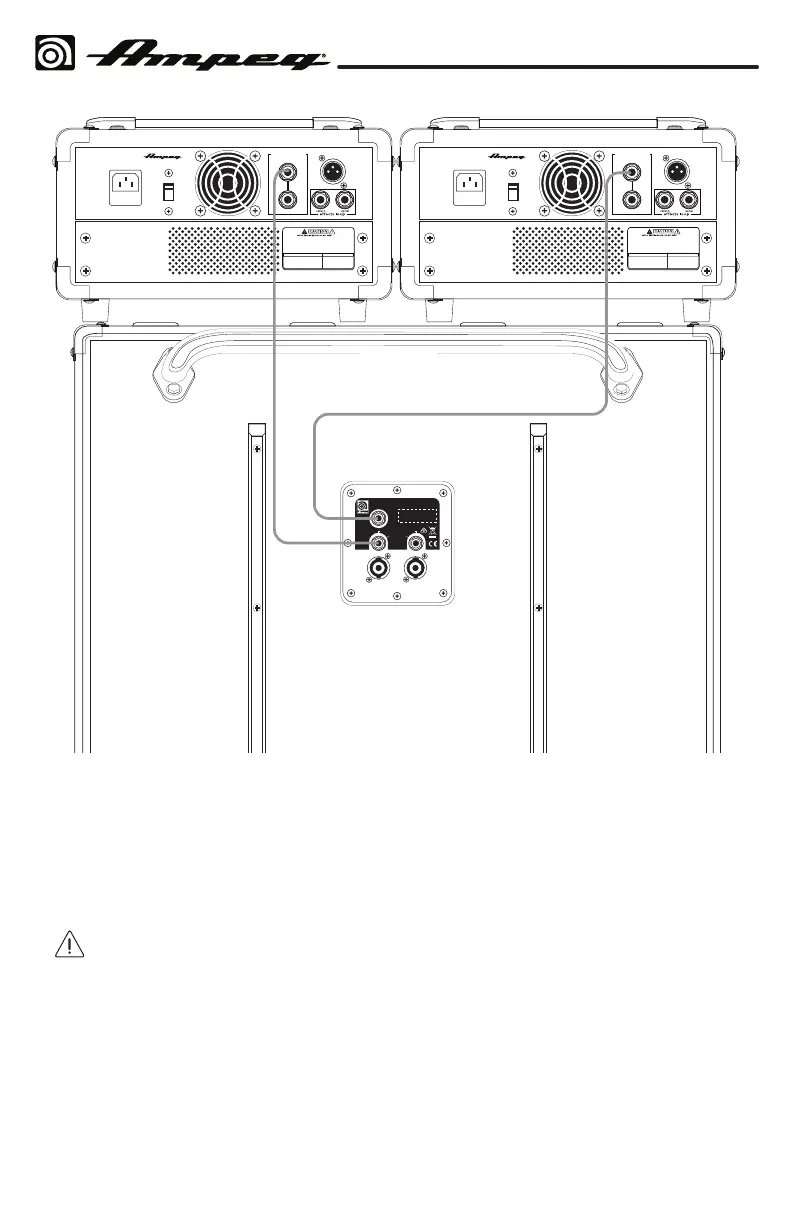

In the example above, one speaker cable with 1/4" ends connects from the speaker
output of the amplier to the Upper 4x10 Dual Mode 1/4" input of the Ampeg
SVT-810E/AV cabinet. An additional speaker cable with 1/4" ends connects from the
speaker output of another amplier to one of the Lower 4x10 Dual Mode 1/4" inputs of the
SVT-810E/AV. This conguration allows two ampliers (or the discrete two output channels
of a stereo amplier) to separately drive each 4x10 section of the full cabinet.
WARNING: Always use good quality (non-shielded) speaker cables. Never use
(shielded) instrument cables to connect speakers to an amplier.
