Amprobe ACDC-100 TRMS - Page 4

3

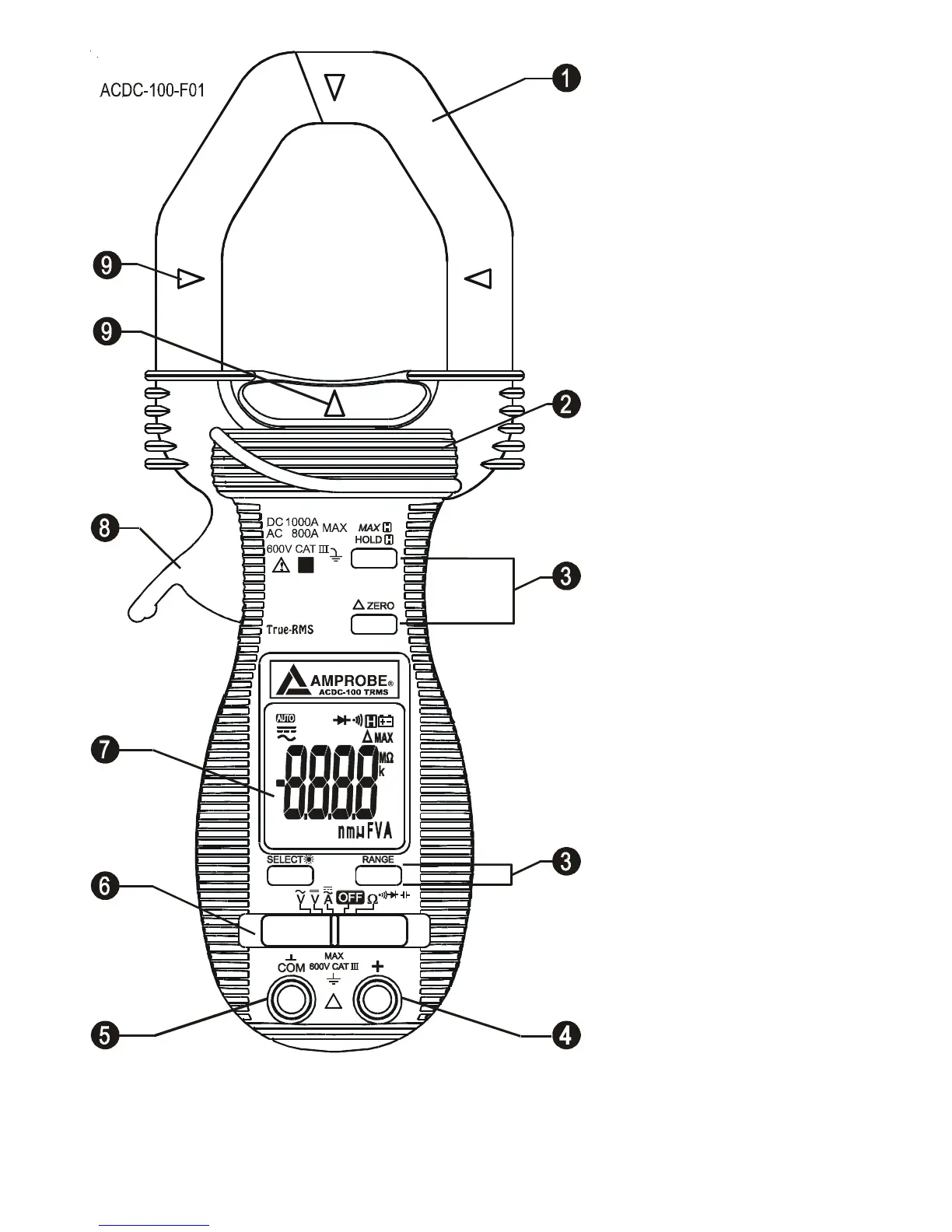

➊
Hall-effect Clamp Jaw
for AC & DC current
electric field pick up
➋
Hand/Finger Barrier
to indicate the limits
of safe access of
the meter during
measurement
➌
Push-buttons for
special functions &
features
➍
Input Jack for all
functions EXCEPT non-
invasive ACA & DCA
current functions
➎
Common (Ground
reference) Input
Jack for all functions
EXCEPT non-invasive
ACA & DCA current
functions
➏
Slide-switch Selector
to turn the power
ON/OFF and Select a
function
➐
3-3/4 digits 4000
counts LCD display
➑
Jaw trigger for
opening the clamp jaw
➒
Jaw center Indicators,
at where best ACA
& DCA accuracy is
specified
