Video Door Phone User Guide
34
Controller Function
Scene scenario − To provide a DO2 that can connect to the Digital input of other controller (e.g. Alarm or Door Access controller).
Functional description
− During talking, you may press “#” key of Video phone to trigger DO2.Polar reverse will be activated for 5 seconds to access the
controller.
Wiring set up
Please refer to Fig. 30. Use the controller or SSR (Solid State Relay) to have further applications.

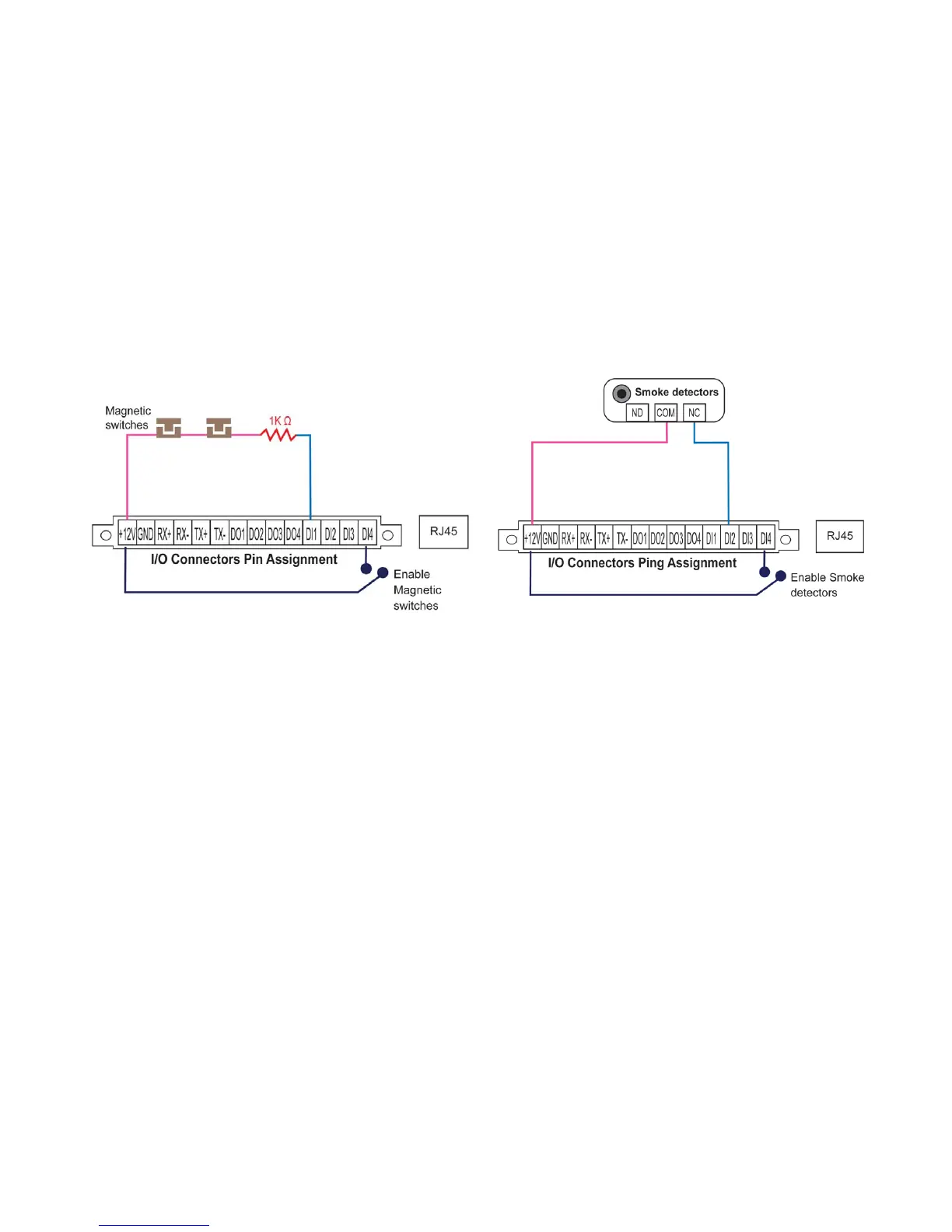

Figure 31 : Burglar Device Wiring
Figure 32 : Burglar Device Wiring
