6 Installation and Wiring APEX Destiny 6100 Alarm Panel

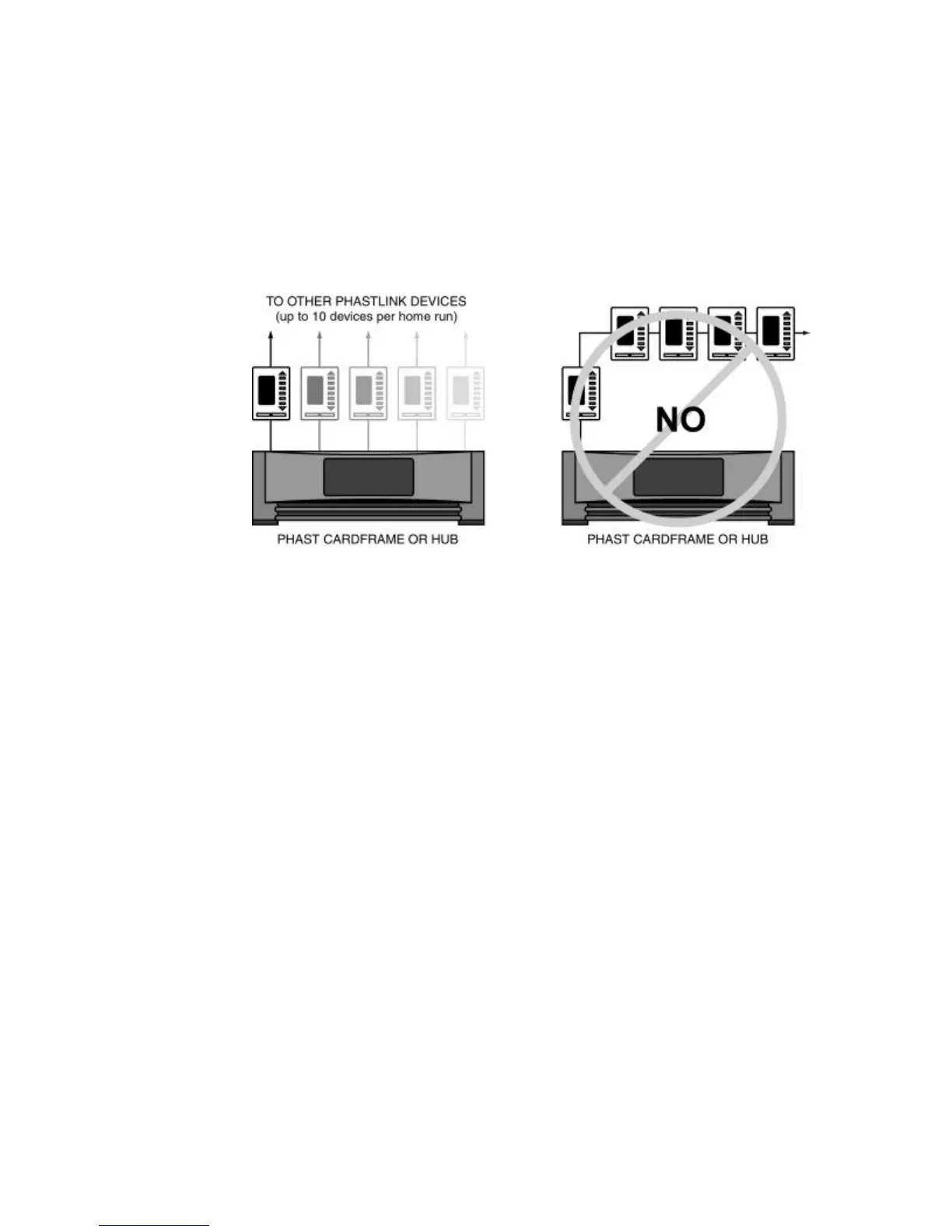

PHAST LCD keypads must connect directly to a PHAST Hub (or PHAST

Microphone Hub). Due to power requirements and/or the need for a separate

microphone line for each keypad, they cannot be daisy-chained to other LCD

keypads; they can, however be daisy chained with other PhastLink devices.

When connecting PHAST keypads that will be used as intercoms, the Microphone

Hub taps off the intercom audio signal carried on the PhastLink cable from that

keypad.

PhastLink devices cannot be wired in a star configuration.
