4 Installation and Wiring APEX Destiny 6100 Alarm Panel
PhastLink Cable Information
This section contains information that you will need to make PhastLink cables,
plus general information on connecting PhastLink devices.
PhastLink cables are used to connect all PhastLink-compatible devices, including
keypads, dimmers, J-box IR devices, amplifiers, audio switches, etc.
Figure 2 shows the RJ-45 Socket and Connector, and Figure 3 gives pinout
information.
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
R
J
-
4
5
S
o
c
k
e
t
R
J
-
4
5
P
l
u
g
RJ-45 Pinout Information
Pin # Wire Color Polarity Function
1 White/Green + Transmit
2 Green – Transmit
3 White/Orange – Mic
4 Blue – Ground
5 White/Blue + 12VDC
6 Orange + Mic
7 White/Brown + Receive
8 Brown – Receive
PhastLink uses a standard 10Base-T connection (i.e. Category 5 wire and RJ-45
connectors). The wire should be connected in the standard manner, as shown in
the following figure. If a consistent color code is used, wiring problems will be
minimized.

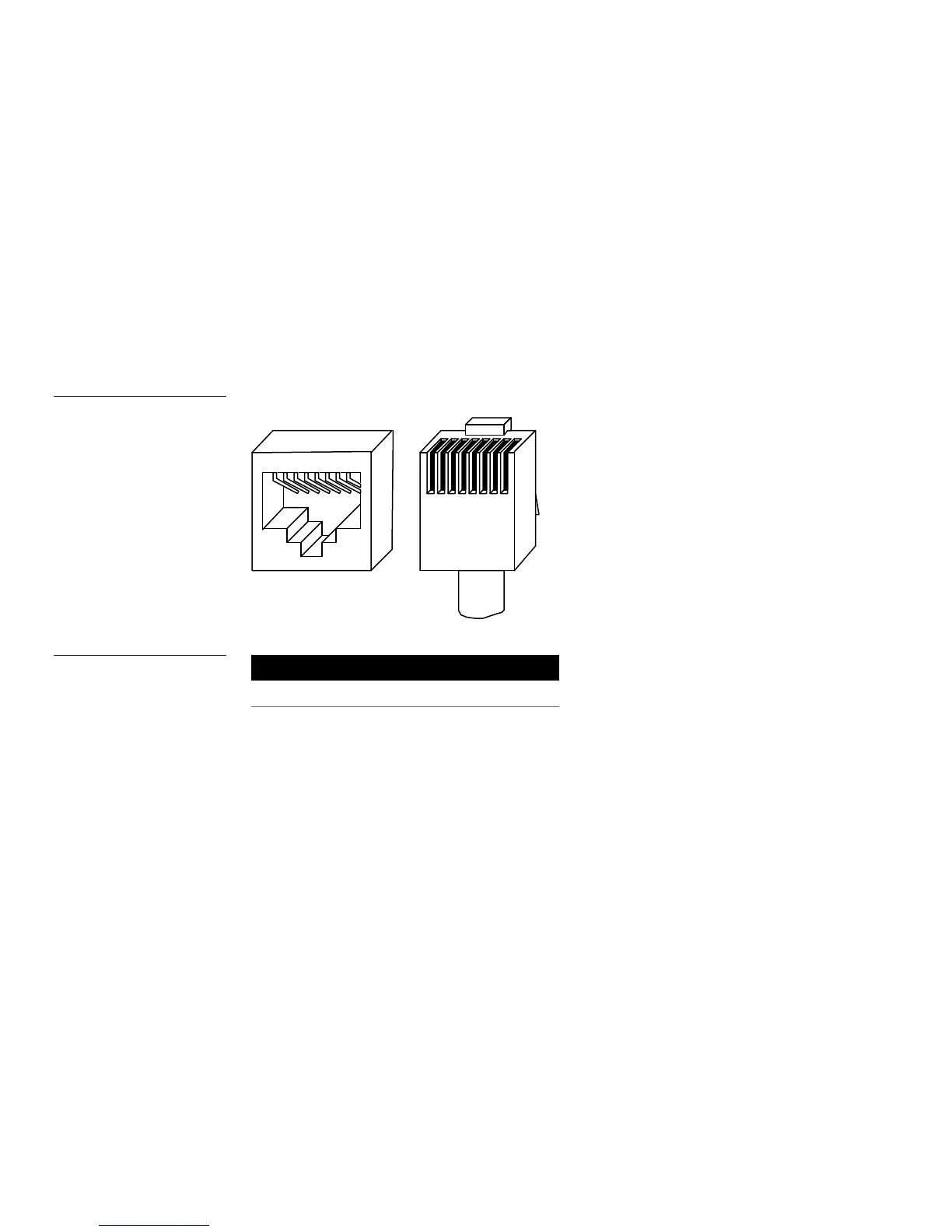

Figure 2
RJ-45 Socket and Connector
Figure 3
RJ-45 Pinout Information
