Product Information
1
AXB-REL8 Axcess Relay Controller
Product Information
The AXB-REL8 Relay Controller provides remote control for up to eight relay functions. Suitable
for stand-alone or rack mount applications, the AXB-REL8 may be used with AXCESS or
AXCENT systems via the four-wire AXlink data bus.
Front and Rear Panels
The front and rear panels of the AXB-REL8 are shown in FIG. 1.
Specifications
The following table details the specifications for the AXB-REL8 Axcess Relay Controller.

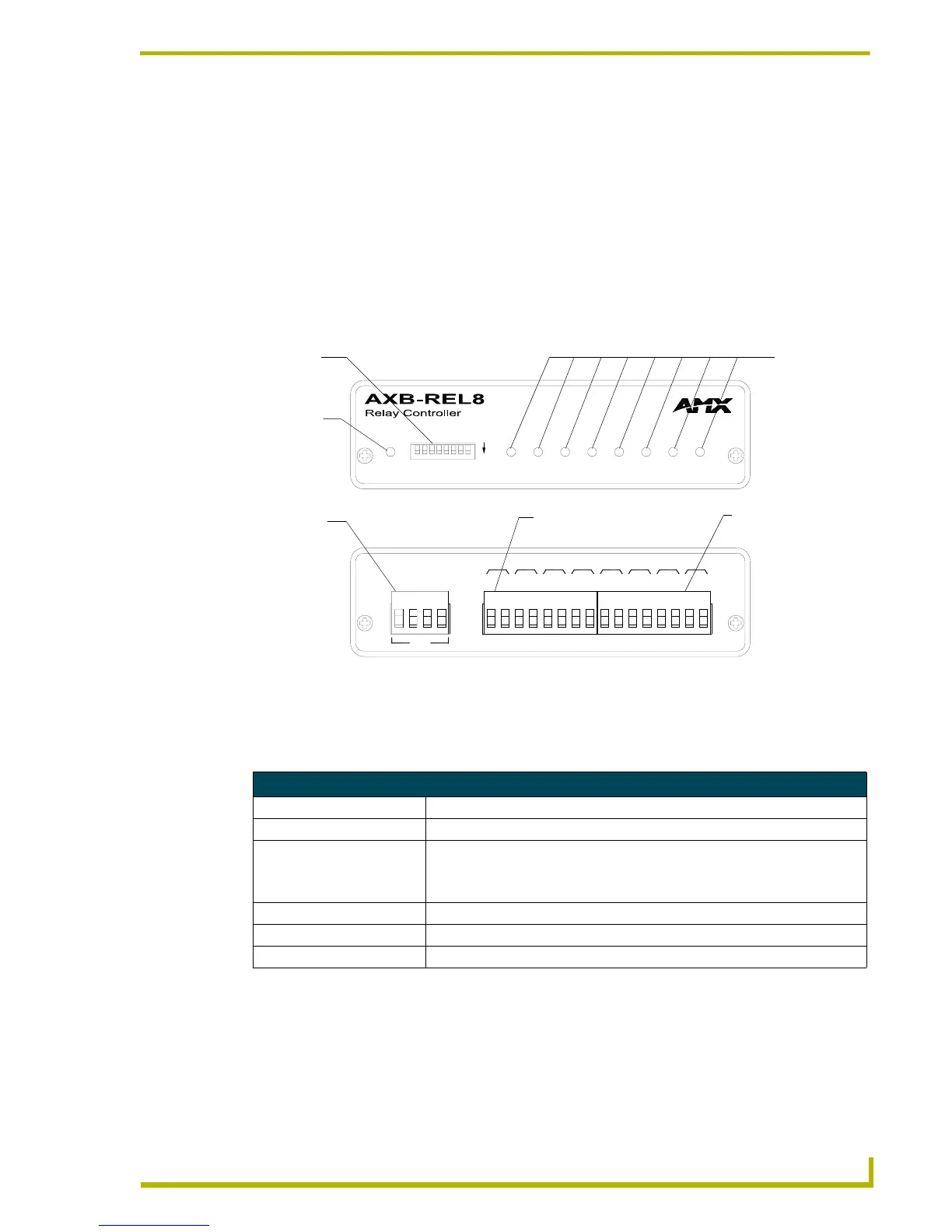

FIG. 1 AXB-REL8 front and rear views
Specifications
Dimensions (HWD) 1.51" x 5.55" x 5.45" (3.84 cm x 14.10 cm x 13.84 cm)
Enclosure Non-glare, high-impact black matte plastic
Power Consumption
Baseline draw
With all 8 relays On
• 90 mA @ 12 VDC (min)
• 170 mA @ 12 VDC (max)
Weight 17.50 oz. (496.11 g)
Included Accessories Metal tab strips included for external adjacent relay communing.
Optional Accessories AC-RK Accessory Rack Kit
DEVICE
AXlink
ON
AXlink
AXM
GND
PWR
AXP
B
21
3
4
5678
B
78
ABA
56
A
BB B
4
ABA
2
3
ABA
1
A
Device DIP
switch
AXlink LED
AXlink
connector
Relay contacts 5-8
(discrete commons)
Relay contacts 1-4
(shared commons)
Relay
LEDs (1-8)
