Designing Touch Panel Pages
30
4" Color Touch Panels with Audio
Setting the Device Used
Use the DEVICE USED option in the Protected Setup page (FIG. 27) to assign a value for the
number of devices being controlled by the touch panel.
1. Press
DEVICE USED to open the keypad and enter the panel’s device number from 1 - 4. Each
device number supports up to 255 programmable channel codes. The multiple device settings
allow you to create up to four unique touch panel buttons and/or pages. This value is used to
determine the current device being used by the panel.
2. Enter the number of devices being used by the touch panel.
3. Press
ENTER to save the value.
Adding a Page
1. Press PAGE on the Edit bar to open the PAGE menu.
2. Press
ADD to open the keyboard and enter a name for the new page. Page names can be up to
20 characters.
3. Press
EXIT CHANGE to save, close the keyboard, and go to the new page.
Setting the page color
1. Press
EDIT to open the Edit bar on the newly created page.
2. Press
PAGE on the Edit bar to open the PAGE menu.
3. Press
PAGE COLOR to open the color palette.
4. Select a color from the palette; the page automatically changes to the new color.
Adding a Button
To add a button to the current page:
1. Press
BUTTON on the Edit bar to open the BUTTON menu.
2. Press
ADD to open the ADD BUTTON operation bar. On the LCD screen, touch and drag to
create a button. The first touch point is the upper-left corner of the button.

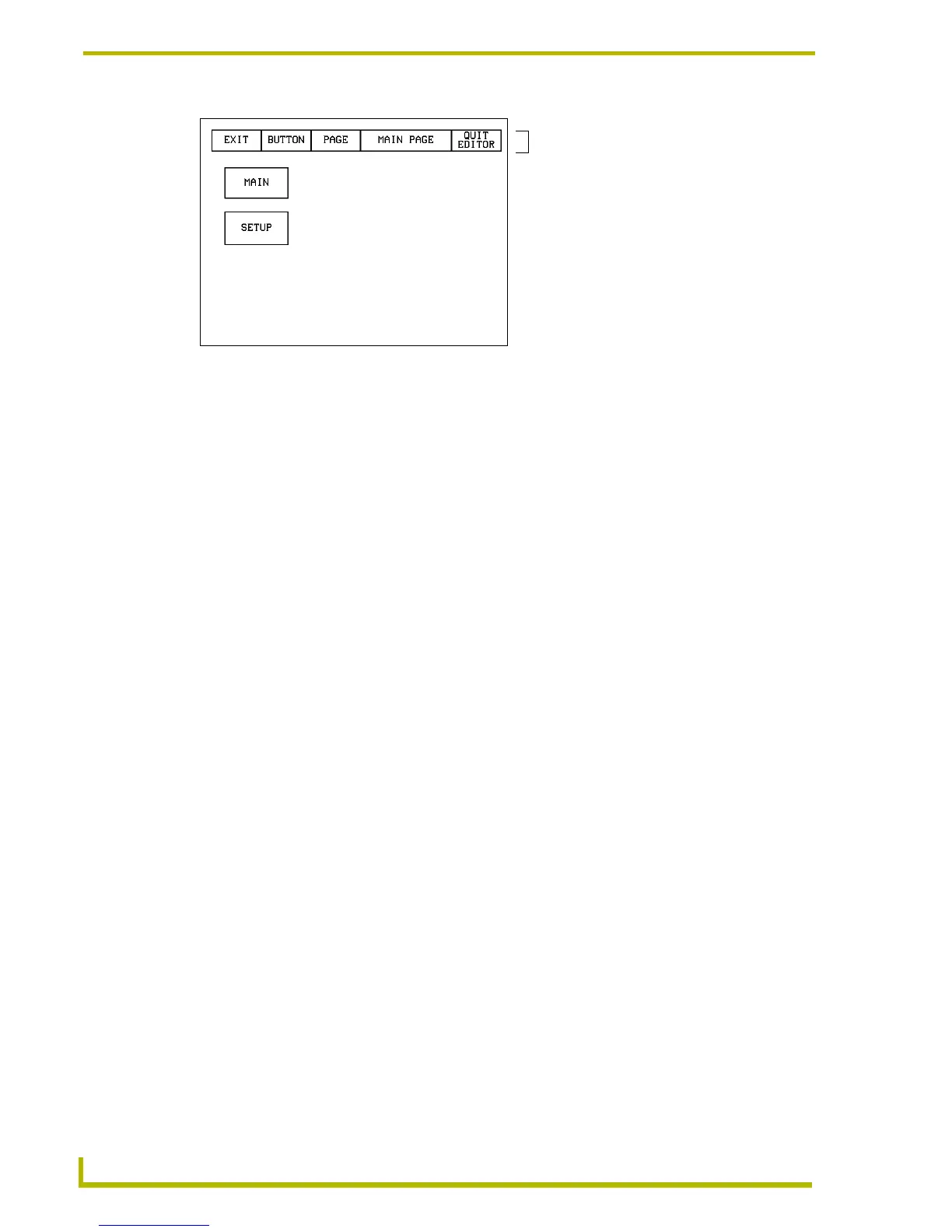

FIG. 28 Main page with Edit bar
Edit bar
