4" Color Touch Panels with Audio
Product Information
The Color Passive-Matrix Audio Mini-Touch Panels (AXD-CP4/A and AXT-CP4/A) contain a
4-inch 256-color passive-matrix liquid crystal display (LCD). These panels are equipped with an
infrared motion sensor, light sensor, IR receiver, internal audio speakers, internal microphone,
external LED buttons, and removable buttons. Using the TPDesign3 Touch Panel Design program,
you can create custom pages with buttons, icons, sliders, bargraphs, time displays, logos, and
drawings.
The AXD-CP4/A is designed for wall mounting with a Wall Mount faceplate. The AXD unit also
uses an optional CB-CP4/A conduit/wall box for "pre-wall" surfaces.
FIG. 1 shows the AXD-CP4/A and AXT-CP4/A panels.
Specifications
The AXD-CP4/A panels come inserted within a plastic backbox (mountable into most
surfaces) that should not be confused with the optional metal CB-CP4/A conduit box
(metallic optional component).

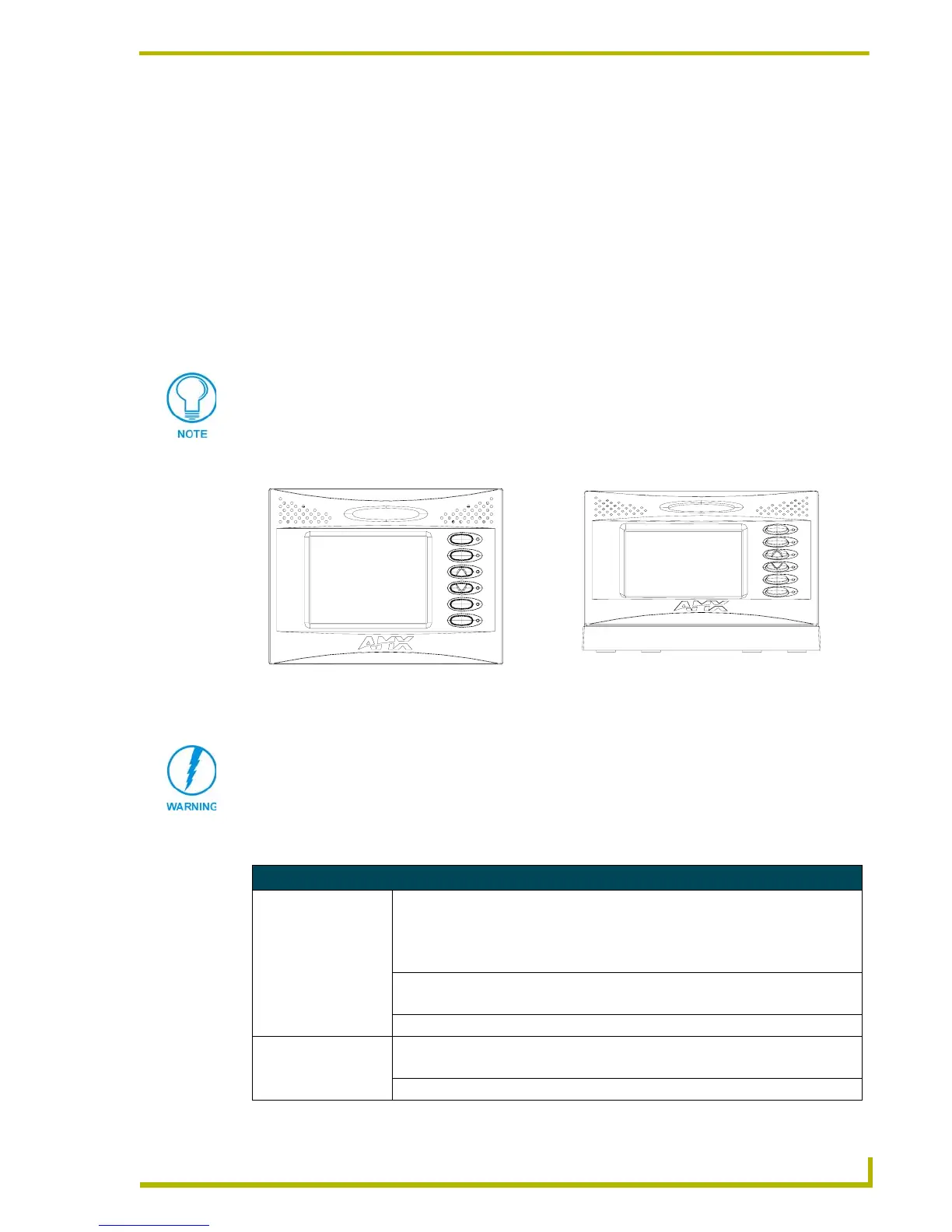

FIG. 1 Sample AXD-CP4/A and AXT-CP4/A
AXD-CP4/A (Front view)
AXT-CP4/A (Front view)
Verify the TPDesign3 program being used is Version 3.16 build 193 or higher.
The Updated EXE for TPDesign3 can be found at AMX.com > Tech Center >
Downloadable Files > Application FIles > TPDesign3. Earlier versions of TPD3
will not correctly function with these panels.
Specifications
Dimensions (HWD):
AXD-CP4/A • Housing: 4.60" x 5.34" x 1.87" (11.68 cm x 13.56 cm x 4.75 cm)
• Faceplate: 4.60" x 6.13" x 0.35" (11.68 cm x 15.57 cm x 0.89 cm)
• CB-CP4/A Conduit/wallbox: 4.09" x 5.51" x 3.40" (10.39 cm x 13.99 cm x 8.64 cm)
AXT-CP4/A • Tabletop unit: 4.22" x 6.24" x 4.99" (10.72 cm x 15.85 mm x 12.67 mm)
• Faceplate: 4.60" x 6.13" x 0.35" (11.68 cm x 15.57 cm x 0.89 cm)
CB-CP4/A • Conduit/wallbox: 3.92" x 5.51" x 3.40" (9.96 cm x 13.99 cm x 8.64 cm)
Weight:
AXD-CP4/A 2.23 lbs. (1.02 kg)
AXT-CP4/A 2.26 lbs. (1.03 kg)
