Product Overview and General Specifications
17
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Rear View
Enclosure
The enclosure’s appearance, as viewed from the rear, will vary depending on the number and types of input, output, and expansion
boards present. The Enova DGX 800 enclosure in FIG. 3 is fully loaded for 8x8 switching. The Enova DGX 1600 enclosure in FIG. 4
is fully loaded for 16x16 switching. The Enova DGX 3200 enclosure in FIG. 5 is fully loaded for 32x32 switching. The Enova DGX
6400 enclosure in FIG. 6 is fully loaded for 64x64 switching. In addition, the illustrations show two expansion boards each for the
Enova DGX 800/1600/3200 and four expansion boards for the Enova DGX 6400. For additional information about expansion
boards, see page 12.
Enova DGX 800
Enova DGX 1600

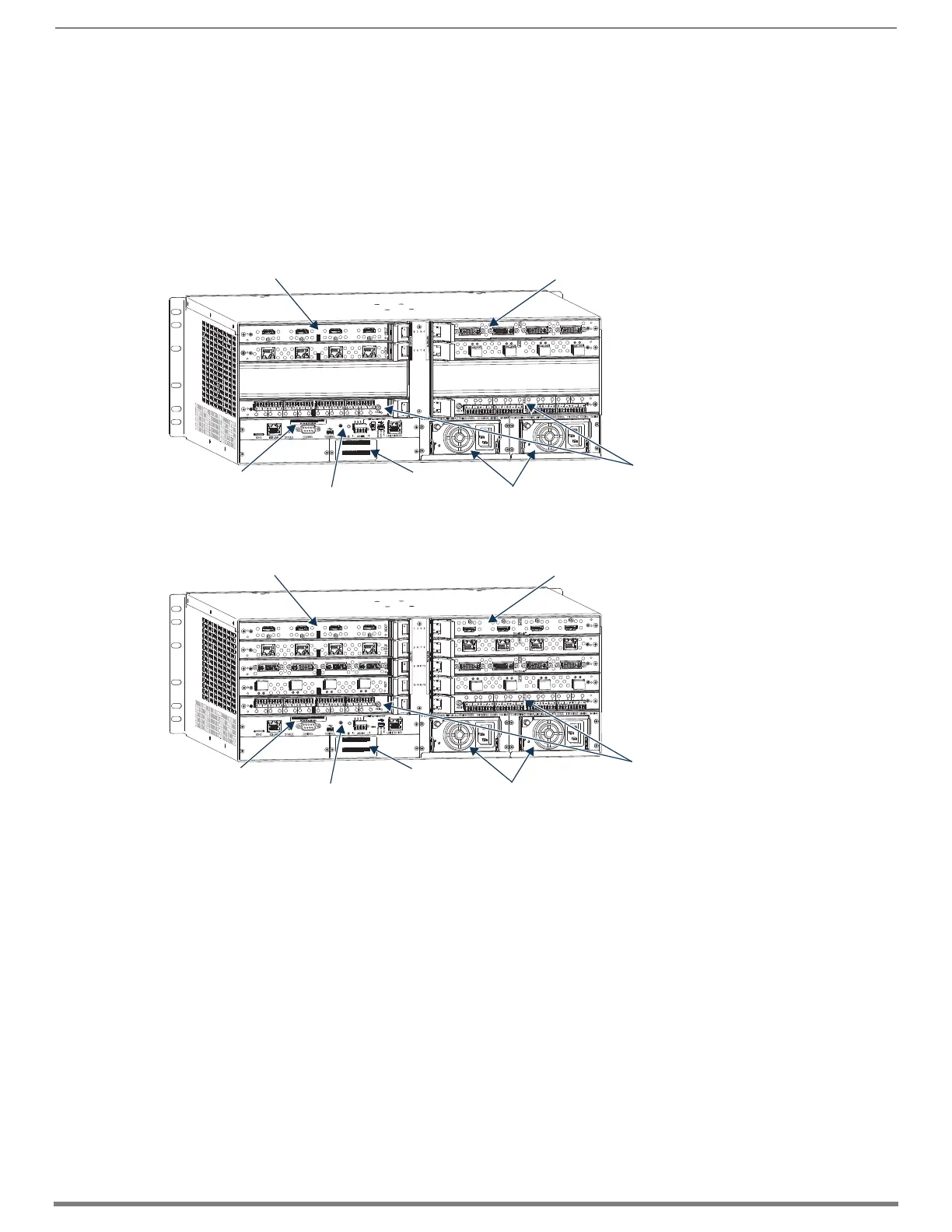

FIG. 3 Rear view of a fully loaded Enova DGX 800 enclosure with two expansion boards (Audio Switching Boards shown)
FIG. 4 Rear view of a fully loaded Enova DGX 1600 enclosure with two expansion boards (Audio Switching Boards shown)
Enova DGX 800 Rear
View
AC
DC
FLT
AC
DC
FLT
Input boards (up to 2 in input board slots) Output boards (up to 2 in output board slots)
Power supplies
Serial number
CPU/Control board
NOTE: If the enclosure has an empty input
or output board slot (which is numbered for
an additional board), it can be used to
expand the system, to a maximum of 2
input and 2 output boards. The blank
plates under the input and output board
slots cannot be removed.
MAC address
Expansion boards in expansion slots
(Audio Switching Boards shown)
Enova DGX 1600 Rear
View
AC
DC
FLT
AC
DC
FLT
Input boards (up to 4 in input board slots) Output boards (up to 4 in output board slots)
Power supplies
Serial number
CPU/Control board
NOTE: If the enclosure has any empty input
or output board slots (which are numbered
for additional boards), they can be used to
expand the system. If the expansion board
slots are empty, expansion boards can be
added.
MAC address
Expansion boards in expansion slots
(Audio Switching Boards shown)
