Appendix A – Adding or Replacing Boards
239
Hardware Reference Manual – Enova DGX 100 Series Digital Media Switchers
Board Troubleshooting
Problems with Board Power Up
To verify that all I/O boards have been powered up after hot-swapping, enter ~scri6v3! in a terminal emulation program and verify
that none of the boards report an “alarm” (FIG. 120).
If an alarm is reported, the board must be manually powered back up using the DGX_SHELL command power ON BCPUx where x
is the slot number of the board (for additional information on DGX_SHELL commands, see page 243.
TIP: A complete list of the DGX_SHELL targets, BCPUx, is in the “Product to Board Slot Correspondence” table on page 245.
Additional Troubleshooting Information
For general problems or problems with specific boards, see the “Troubleshooting” sections for the following:
Test switches – page 219
General troubleshooting – page 61
General audio – page 73
DXLink Fiber Boards – page 127
Dante Audio Switching Boards – page 128
Audio Switching Boards – page 153
AIE Audio Boards – page 162

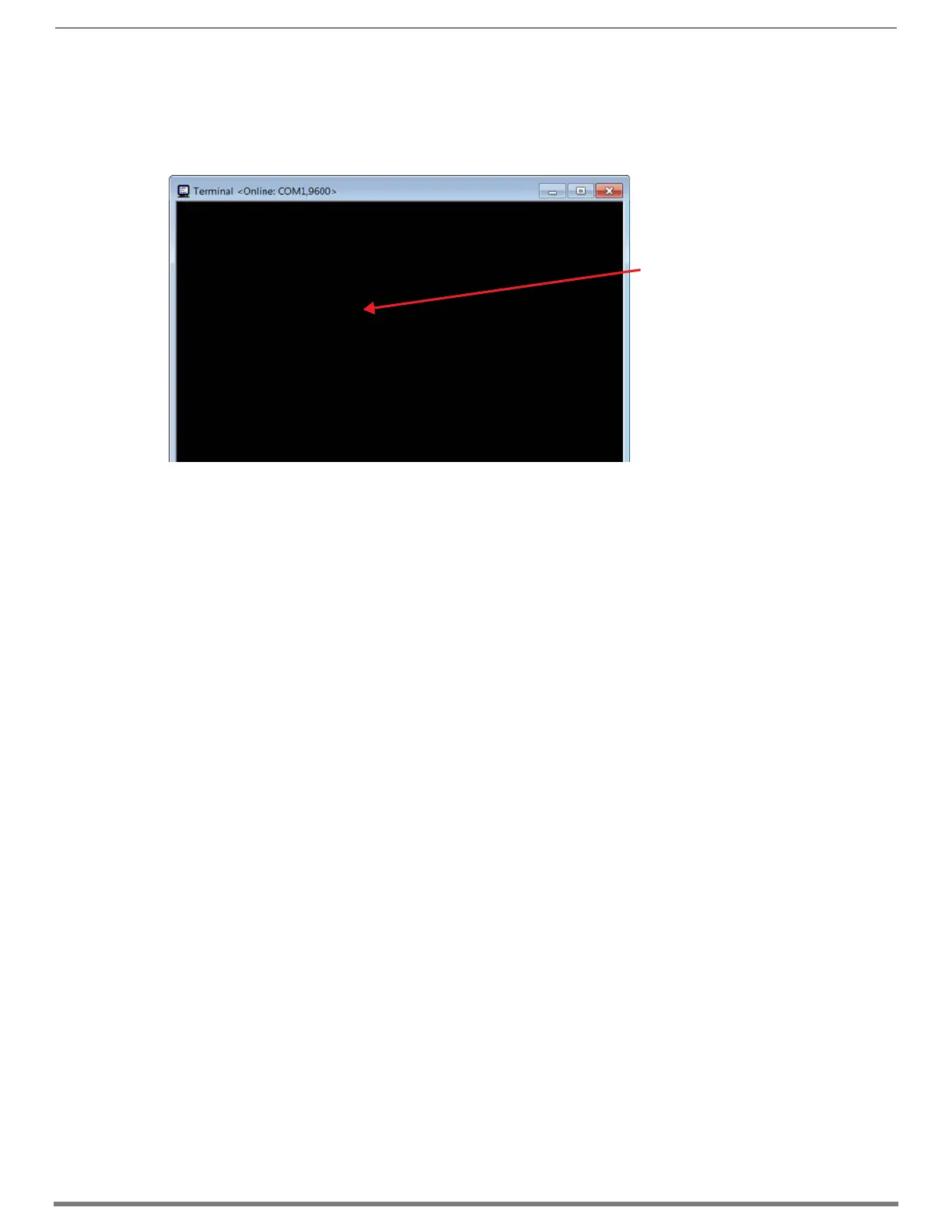

FIG. 120
Terminal information showing an “alarm” for a board that has not powered up correctly
~scri6v3!
[io board 13 pol 1] good
[status flags] 0x0
[voltage] 4.93v
[current] 1.33a
[temp] 29.2c
[io board 14 pol 1] alarm
[status flags] 0x2
[voltage] 0.00v
[current] 0.35a
[temp] 0.0c
[10 board 15 pol 1] good
[status flags] 0x0
[voltage] 4.96v
[current] 1.33a
[temp] 29.1c
Alarm notification for I/O board 14
