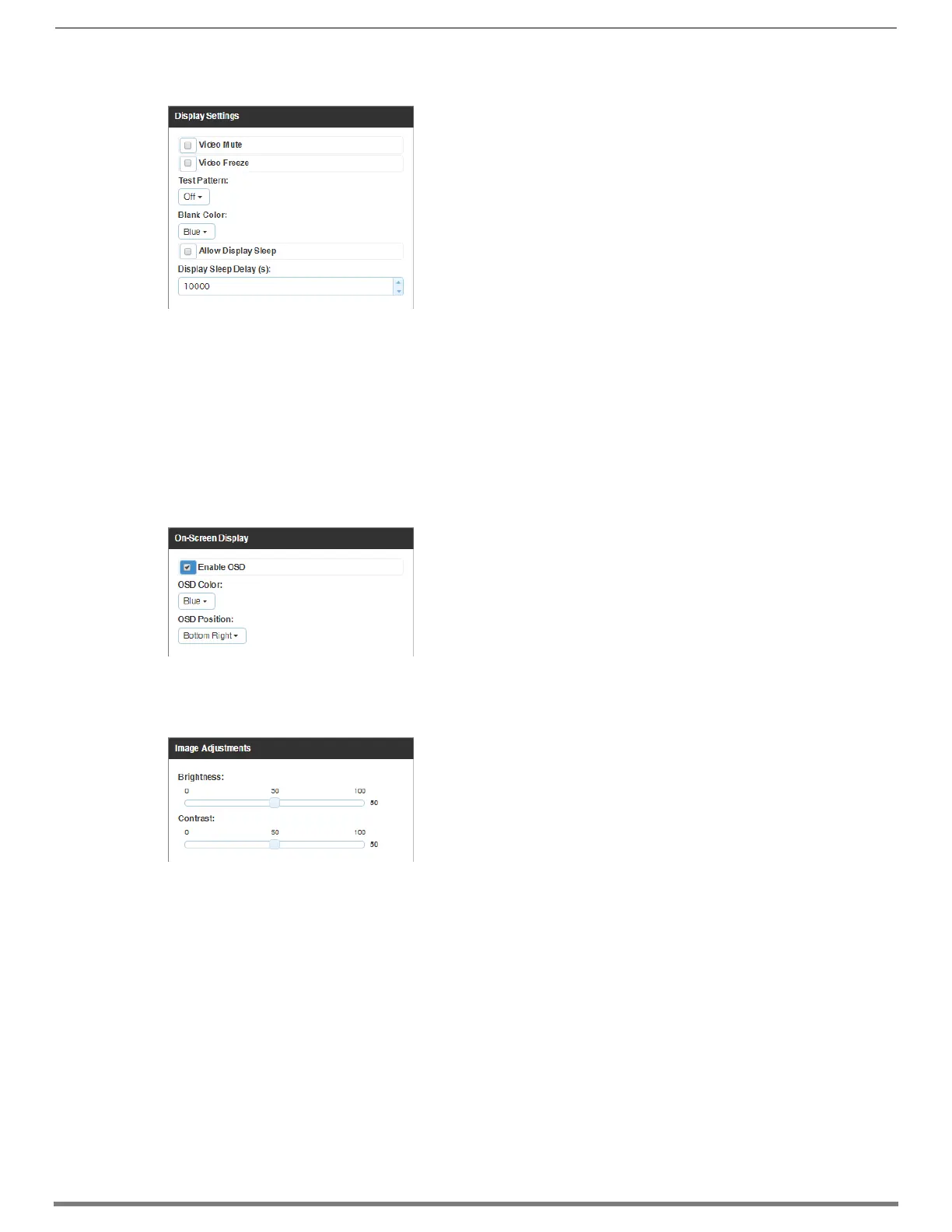

Display Settings:
Video Mute – click the check box to mute the video
Video Freeze – click the check box to freeze the video
Test Pattern – in the drop-down list, select Off, Color Bar, Gray Ramp, SMPTE Bar, HiLo Trak, Pluge, or X-Hatch
Blank Color – in the drop-down list, select Black or Blue
Allow Display Sleep – click the check box to allow the display to go to sleep after the specified time in seconds in the
“Display Sleep Delay(s)” field
Display Sleep Display(s): – Enter the delay in seconds that the display will remain awake after the video route has been
disconnected or the input signal is removed
NOTE: While most monitors handle the sleep function well, some monitors continually attempt to wake up, resulting in constant or
intermittent screen blanking when no video is present. For the video output attached to the problematic monitor, either uncheck the
Allow Display Sleep option and set the Blank Color or set VIDOUT_SLEEP-DISABLE and VIDOUT_BLANK-<color> (see page 199).
On-Screen Display:
Enable OSD – click check box to enable/disable
OSD Color – in the drop-down list, select Black, Blue, White, or Yellow
OSD Position – in the drop-down list, select Top Left, Top Right, Bottom Left, or Bottom Right
Image Adjustments:
Brightness – use the slider bar to adjust (range: 0 to 100)
Contrast – use the slider bar to adjust (range: 0 to 100)
