ICS LAN 10/100 and LAN 100/1000 Indicator LEDs
Cable Requirements and Pinouts
□ RJ-45 link cable (either crossover or straight-through) – required to connect an Enova DGX Switcher to the public LAN.
NOTE: Cable can be wired to either T568A (see below) or T568B (on the next page), as long as the wiring is consistent on both ends.
T568A
The following table lists the pinouts, signals, and pairing for the Ethernet connector when wired for straight-through cable
according to T568A.
FIG. 30 shows the connections for Ethernet RJ-45 connector/cable per T568A.

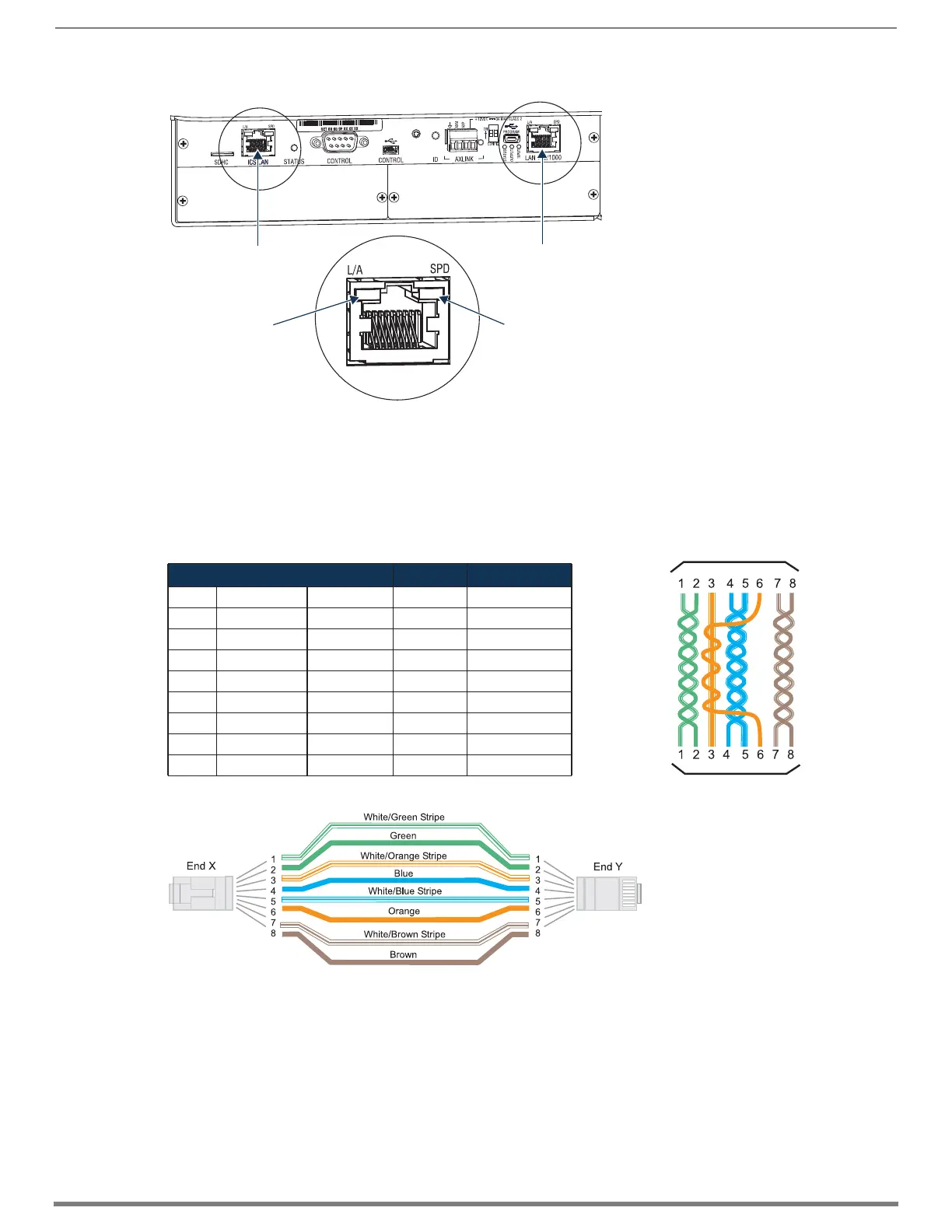

FIG. 29 ICS LAN 10/100 and LAN 100/1000 port LED indicators
T568A
Pin Signals Connections Pairing Color
1 TX+ 1--------1 1--------2 Green - White
2 TX- 2--------2 Green
3 RX+ 3--------3 3--------6 Orange - White
4 No connection 4--------4 Blue
5 No connection 5--------5 Blue - White
6 RX- 6--------6 Orange
7 No connection 7--------7 Brown - White
8 No connection 8--------8 Brown
FIG. 30 RJ-45 connections per T568A
RJ-45 Indicator LEDs
LAN 100/1000 port
SPD (yellow) LED
L/A (green) LED
ICS LAN 10/100 port
T568A Pairing
To Next Page
