Installation
15
MST-431/MSD-431-L 4.3" Modero S Series® Touch Panels
To install the back box:
1. Prepare the area by removing any screws or nails from the drywall before beginning the cutout process.
2. For best results, use the MSD-431-L Installation Template (68-2265-01) to ensure proper placement
(FIG. 12). The template is marked to ensure that the touch panel and back box are properly aligned.

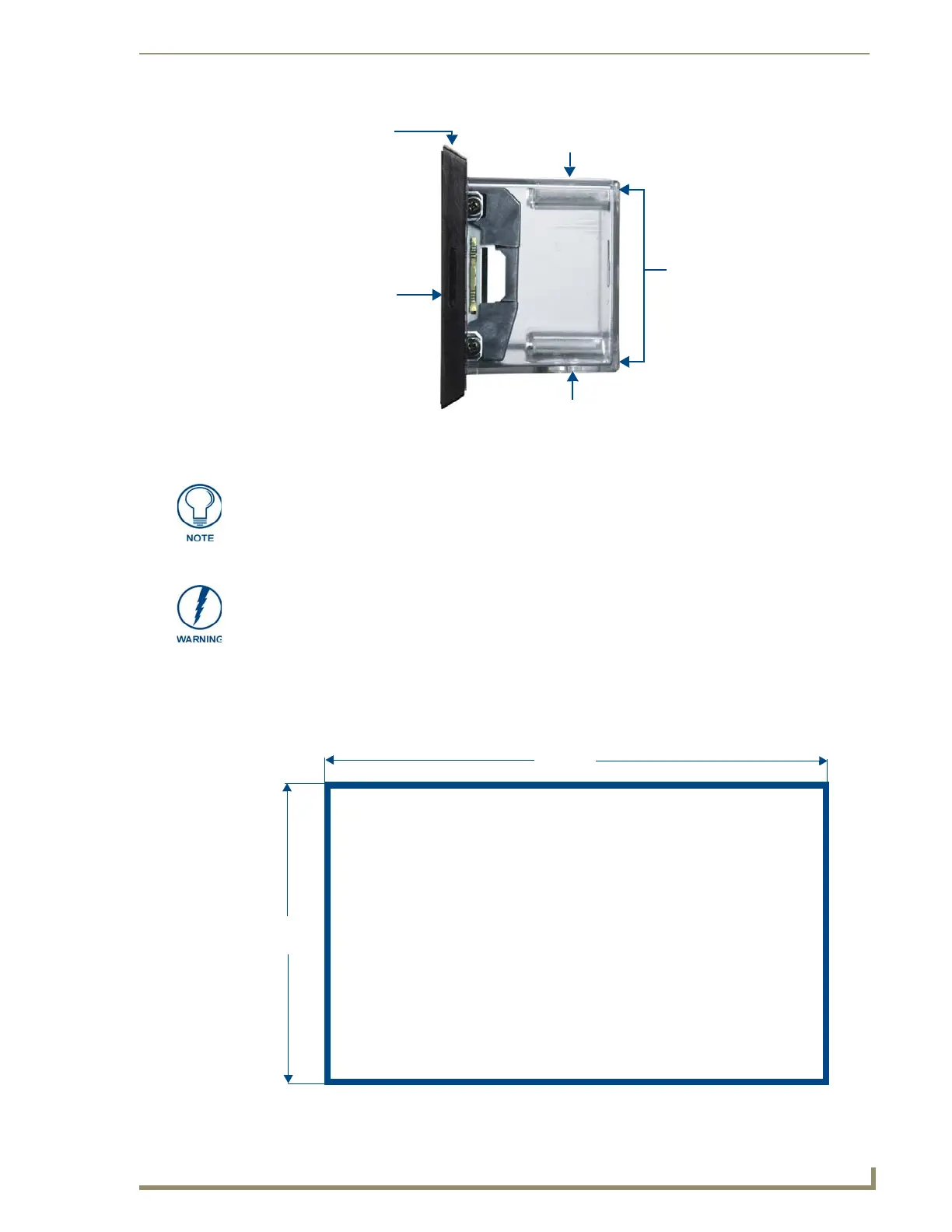

FIG. 11 Side view of MSD-431-L
Back box
knockout
Locking tabs
MSD-431-L
(front)
Sleep
Button
Back box
knockout
In order to guarantee a stable installation of the MSD-431-L, the thickness of the wall
material must be a minimum of .50 inches (1.27cm) and a maximum of .875 inches
(2.22cm). The mounting surface should also be smooth and flat.
The maximum recommended torque to screw in the locking tabs on the plastic back
box is 5 IN-LB [56 N-CM]. Applying excessive torque while tightening the tab screws,
such as with powered screwdrivers, can strip out the locking tabs or damage the
plastic back box.
FIG. 12 MSD-431-L Installation Template
4.45"
2.65"
(6.73 cm)
(11.30 cm)
