AMX MT-1002 Installation & Hardware Reference Manual

Modero G5 Touch Panels - Installation & Hardware Reference Manual
19
| TOC
MD-702 (Landscape Wall Mount)

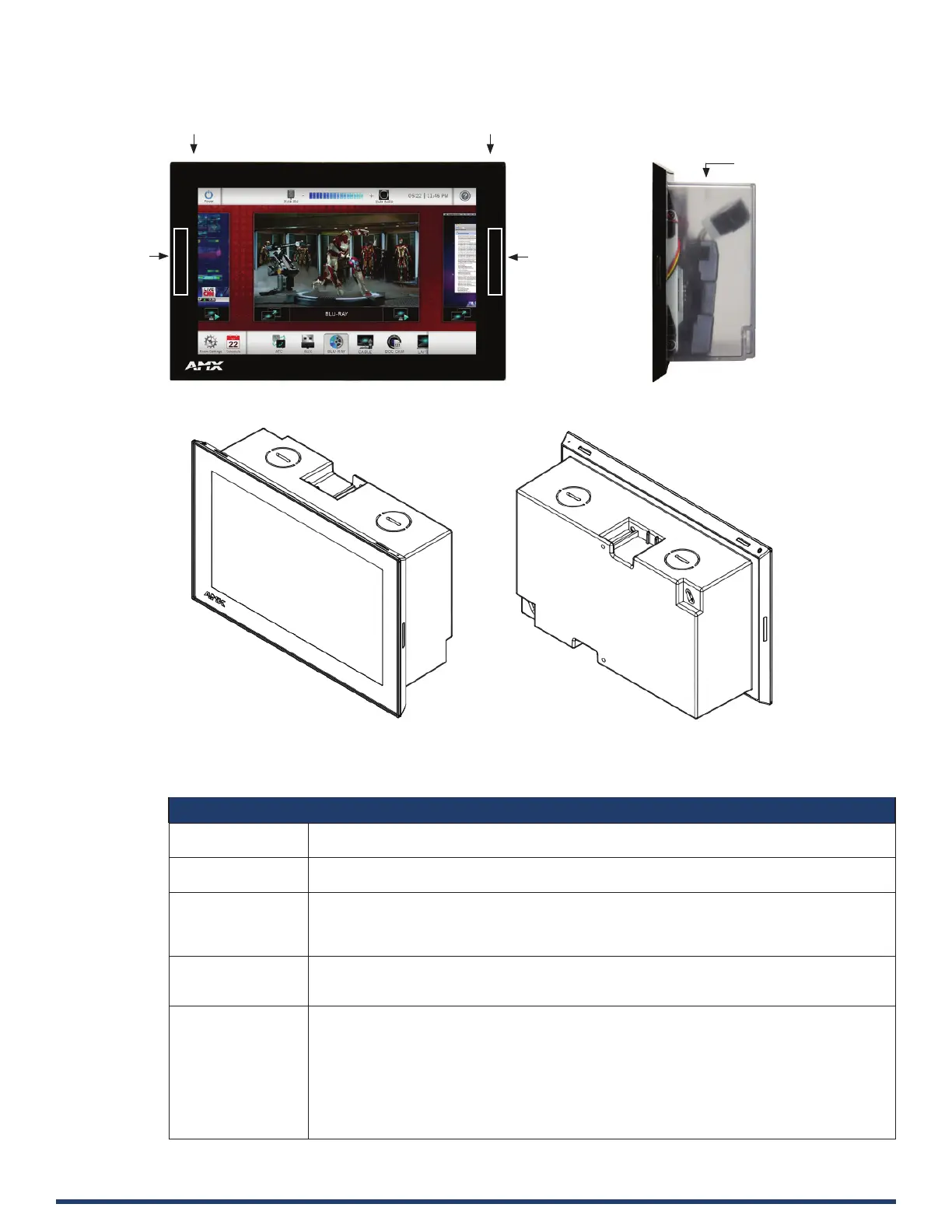

FIG. 11 MD-702
FIG. 12 MD-702 front and rear isometric views
MD-702 Specications
MD-702 Specications
Dimensions with
backbox (HWD)
4 7/8” x 7 3/8” x 2 1/4” (123.9mm x 187.5mm x 58mm), with Backbox
See FIG. 13 on page 21 for details.
Weight • 1.05 lbs (.680 Kg), with Backbox
• 0.8 lbs (.363 Kg), without Backbox
Power Consumption • Full-On: 14.5 W
• Standby: 5.8 W
• Shutdown: 1 W
• Start-Up Inrush Current: Not applicable due to PoE standard
External Power
Supply Required
Optimal performance requires use of one of the following AMX PoE power supplies (not included):
• PS-POE-AT-TC, PoE Injector, 802.3AT Compliant (FG423-84)
• NXA-ENET8-POE+, Gigabit PoE Ethernet Switch (FG2178-64)
Certications • FCC Part 15 Class B
• AUS/NZ
• EN 55032:2012/AC:2013 Class B
• CISPR32:2015
• IEC/EN-60950
• KN32 Class B
• CAN-ICES-3(B)/NMB-3(B)
• UL 60950-1
• RoHS/WEEE compliant
Microphone
Sleep Button
Left LED
Right LED
Backbox
(side view)

AMX MT-1002 Specifications

General

Power consumption (typical)	5.8 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
USB 2.0 Type-A ports quantity	1
Wi-Fi	No
Ethernet LAN	Yes
RAM capacity	2048 MB
Mounting type	-
Product color	Black
Internal memory	16000 MB
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Speaker power	2 W
Display type	TFT
Backlight type	LED
Contrast ratio	700:1
Display diagonal	10.1 \
Display brightness	400 cd/m²
Display resolution	1280 x 800 pixels
Touchscreen technology	Projected capacitive system
Viewing angle, horizontal	89 °

Weight and Dimensions

Depth	97 mm
Width	255 mm
Height	160 mm
Weight	1410 g
