AMX MT-1002 Installation & Hardware Reference Manual

Modero G5 Touch Panels - Installation & Hardware Reference Manual
28
| TOC
Cutouts
1. After ensuring proper placement, cut an opening in the mounting surface for the Backbox, using the included Installation
Template as a guide. For reference purposes, the cutout dimensions for each Modero wall mount panel is indicated below:
NOTE: Consider making the actual cutout opening slightly smaller than the provided dimensions. This provides a margin of
error if the opening needs to be expanded. Too little wall material removed is always better than too much.

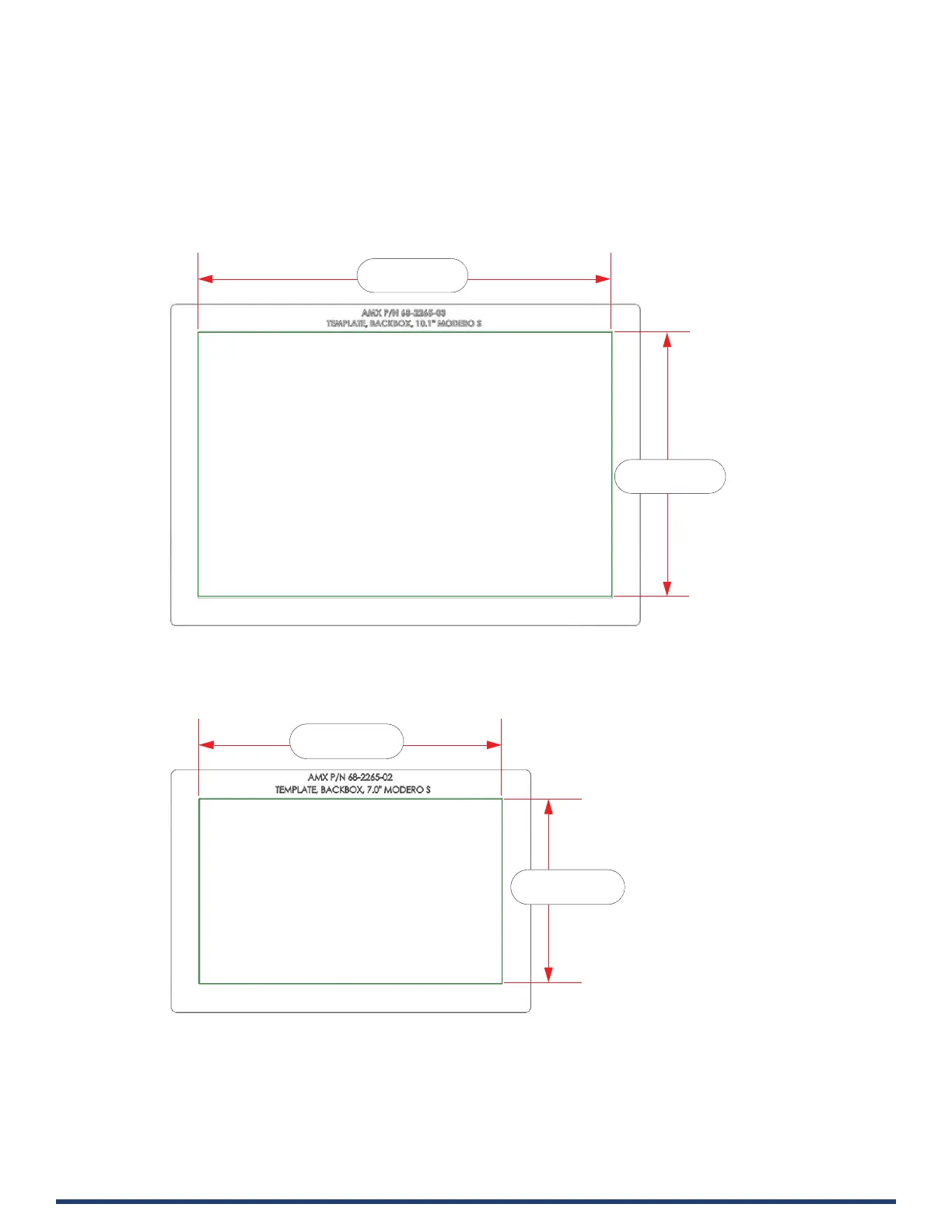

MD-1002 - Cutout Dimensions
FIG. 23 MD-1002 Cutout Dimensions
MD-702 - Cutout Dimensions
FIG. 24 MD-702 Cutout Dimensions
NOTE: When installing the Backbox, make sure that the assembly is in the correct position and in the correct place. Once the
locking tabs are extended and locked into place, removing the Backbox may be dicult without having access to the back of
the wall or causing damage to the wall.
9.32" (+.01, -.00)
236.65mm (+.25, 0)
5.96" (+.01, -.00)
151.46mm (+.25, 0)
6.64" (+.01, -.00)
168.71mm (+.25, 0)
4.07" (+.01, -.00)
103.43mm (+.25, 0)

AMX MT-1002 Specifications

General

Power consumption (typical)	5.8 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
USB 2.0 Type-A ports quantity	1
Wi-Fi	No
Ethernet LAN	Yes
RAM capacity	2048 MB
Mounting type	-
Product color	Black
Internal memory	16000 MB
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Speaker power	2 W
Display type	TFT
Backlight type	LED
Contrast ratio	700:1
Display diagonal	10.1 \
Display brightness	400 cd/m²
Display resolution	1280 x 800 pixels
Touchscreen technology	Projected capacitive system
Viewing angle, horizontal	89 °

Weight and Dimensions

Depth	97 mm
Width	255 mm
Height	160 mm
Weight	1410 g
