Sleep Button
G5 touch panels are operated using its integral touchscreen, as well as the Sleep button. The sleep button is located on the top
left edge of the frame when facing the panel (see Fig 2).

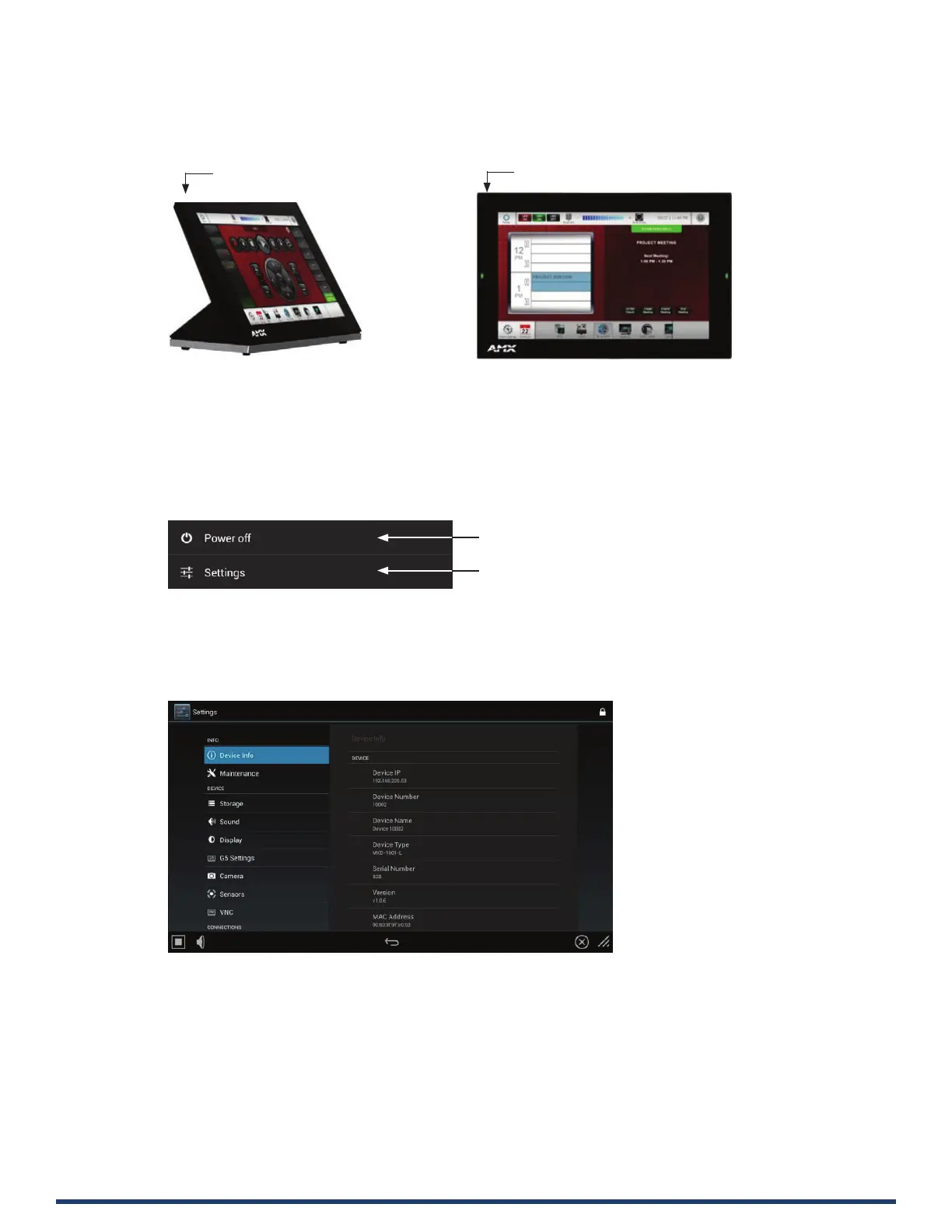

FIG. 2 Sleep Button location - Tabletop and Wall Mount
If the device has gone into its Sleep Mode, touching the touchscreen or pressing the Sleep button will reactivate it. Press and hold
the Sleep button to access the Settings menu.
Powering On/O G5 Panels
Modero G5 touch panels may be powered on by touching the Sleep button. To power o the panel, press and hold the
Sleep button, and select Power O on the on-screen menu (FIG. 3):
FIG. 3 Sleep Button - Press to power on the panel; press and hold to access Power O/Settings options
Conguration and Programming
G5 touch panels are equipped with a Settings menu that provides the ability to congure various features on the panels. To access
the Settings menu, press and hold the Sleep button, and select Settings (FIG. 3). This opens the main Settings menu (FIG. 4):
FIG. 4 Main Settings Menu
Information on the Settings menu, panel conguration, and programming is included in the Modero G5 Programming Guide,
available at www.amx.com.
NOTE: Programming the Modero G5 touch panels require the use of the latest versions of NetLinx Studio and TPDesign5, both
available to download at www.amx.com.
Bluetooth Support
G5 touch panels allow the use of Bluetooth keyboard and mouse combinations, using HID Prole v1.1. Using a keyboard
and mouse with the device requires use of the MXA-BT Bluetooth USB Adapter (FG5968-19).
Sleep button (on top panel)
Sleep button (on top panel)
Press to power o the panel
Press to access the Settings menu

AMX MT-1002 Specifications

General

Power consumption (typical)	5.8 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
USB 2.0 Type-A ports quantity	1
Wi-Fi	No
Ethernet LAN	Yes
RAM capacity	2048 MB
Mounting type	-
Product color	Black
Internal memory	16000 MB
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Speaker power	2 W
Display type	TFT
Backlight type	LED
Contrast ratio	700:1
Display diagonal	10.1 \
Display brightness	400 cd/m²
Display resolution	1280 x 800 pixels
Touchscreen technology	Projected capacitive system
Viewing angle, horizontal	89 °

Weight and Dimensions

Depth	97 mm
Width	255 mm
Height	160 mm
Weight	1410 g
