STEP 1: Install the Plastic Backbox
Installation Template (Included)
Each Modero wall mount panel comes with an Installation Template that makes it easy to position the panel for mounting and
establish the size of the cutout hole required for each panel type. Use the included Installation Template to determine the
placement of the Backbox in the mounting surface. The outside edges of the template are the same dimensions as the touch
panel, which allows you to troubleshoot possible conicts with wall edges, doors, and other potential obstacles. The Modero
installation templates are shown in FIG. 22:

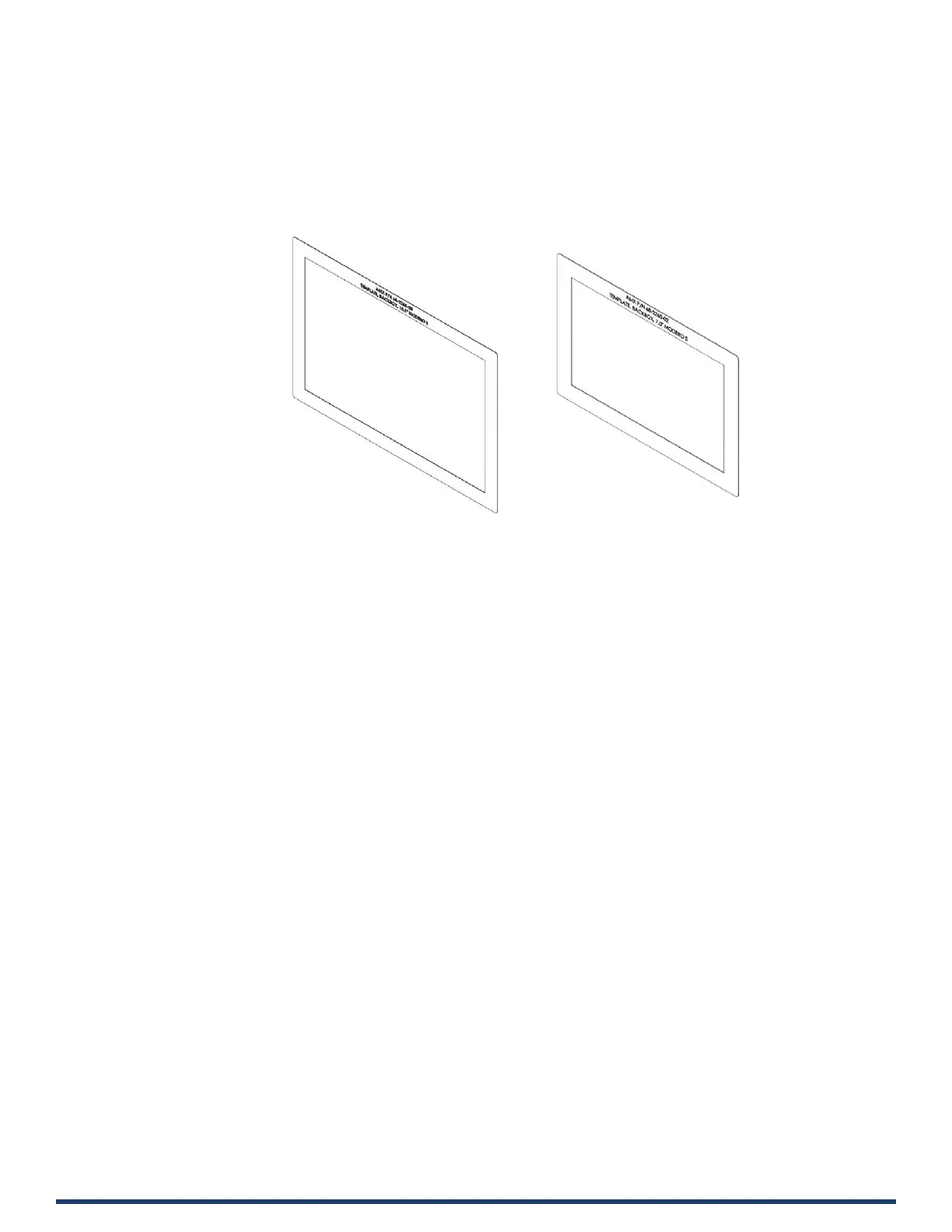

FIG. 22 Modero Wall Mount Installation Templates
NOTE: Prepare the area by removing any screws or nails from the drywall before beginning the cutout process.
• MD-1002 - Template, Backbox, 10.1” Touch Panel (68-2265-03 - see FIG. 23 on page 28)
• MD-702 - Template, Backbox, 7.0” Touch Panel (68-2265-02 - see FIG. 24 on page 28)
The templates are marked to ensure that the touch panel and Backbox are properly aligned.

AMX MT-1002 Specifications

General

Power consumption (typical)	5.8 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
USB 2.0 Type-A ports quantity	1
Wi-Fi	No
Ethernet LAN	Yes
RAM capacity	2048 MB
Mounting type	-
Product color	Black
Internal memory	16000 MB
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Speaker power	2 W
Display type	TFT
Backlight type	LED
Contrast ratio	700:1
Display diagonal	10.1 \
Display brightness	400 cd/m²
Display resolution	1280 x 800 pixels
Touchscreen technology	Projected capacitive system
Viewing angle, horizontal	89 °

Weight and Dimensions

Depth	97 mm
Width	255 mm
Height	160 mm
Weight	1410 g
