Installation Recommendations
During any installation, a lack of ventilation may produce conditions that may adversely aect the device’s operation. In these
circumstances, special care must be made to make sure that temperatures within enclosed areas do not exceed the device’s
maximum rated temperature.
NOTE: While the outside temperature of the device may be at or below its maximum operating temperature, special care must be
taken before and during installation to ensure that the maximum operating temperature is not exceeded within wall or rack
installation spaces.
Mounting Options
Use the included clear plastic Backbox to attach the panel to most standard wall materials.
NOTE: Other optional AMX mounting solutions include the MSA-MMK-07/10 Multi Mount Kits, and the MSA-AMK-07/10 Any Mount
Kits, and CB-MXSA-07/10 Rough-In Boxes. Refer to the Quick Start Guide included with each mounting kit for instructions.
Plastic Backbox
Modero wall mount panels comes with a clear plastic Backbox. This Backbox can be used to mount the touch panel into most
standard wall materials. The Backbox can also used to mount the panel into other mounting options.

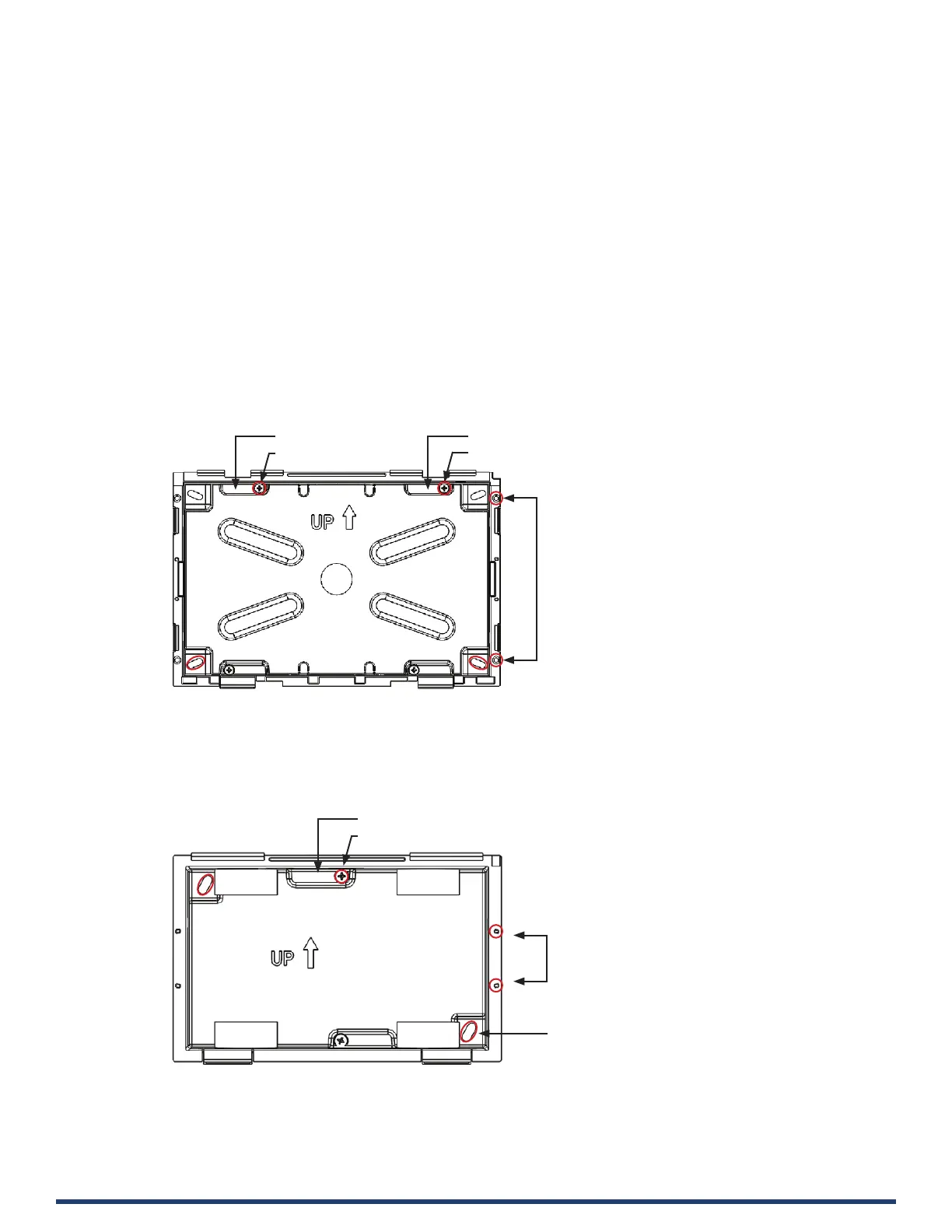

• FIG. 20 shows the Backbox for the MD-1002:
Locking Tab (X4)
Locking Tab screw (X4)
Mounting holes (X4) for installing the Backbox into a
Rough-In Box (screws not included)
Mounting holes (X4) for use with
mounting screws (not included)
Use these mounting holes to install
the Backbox into thin walls (less than
0.5” thick) or solid surfaces
Locking Tab screw (X4)
Locking Tab (X4)
FIG. 20 10.1” MODERO Backbox (Front View)
• FIG. 21 shows the Backbox for the MD-702:
Locking Tab (X2)
Locking Tab screw (X2)
Mounting holes (X4) for use with mounting
screws (not included)
Use these mounting holes to install the
Backbox into thin walls (less than 0.5” thick)
or solid surfaces
Mounting holes (X2) for installing the Backbox
into a Rough-In Box (screws not included)
FIG. 21 7” MODERO Backbox (Front View)

AMX MT-1002 Specifications

General

Power consumption (typical)	5.8 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
USB 2.0 Type-A ports quantity	1
Wi-Fi	No
Ethernet LAN	Yes
RAM capacity	2048 MB
Mounting type	-
Product color	Black
Internal memory	16000 MB
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Speaker power	2 W
Display type	TFT
Backlight type	LED
Contrast ratio	700:1
Display diagonal	10.1 \
Display brightness	400 cd/m²
Display resolution	1280 x 800 pixels
Touchscreen technology	Projected capacitive system
Viewing angle, horizontal	89 °

Weight and Dimensions

Depth	97 mm
Width	255 mm
Height	160 mm
Weight	1410 g
