Installing Tabletop (MT) Panels
MT-2002
Detailed specications drawings for the MT-2002 are available to download from www.amx.com.
Connector Locations - MT-2002
Two Type A USB ports are located on the rear right corner of the panel (FIG. 14). USB peripherals (i.e. mouse, keyboard) may be
connected to either of the two USB ports on the rear of the device. Updates to the device’s rmware can also made via the USB
ports (see the Modero G5 Conguration and Programming Guide for details).
Type A USB Ports

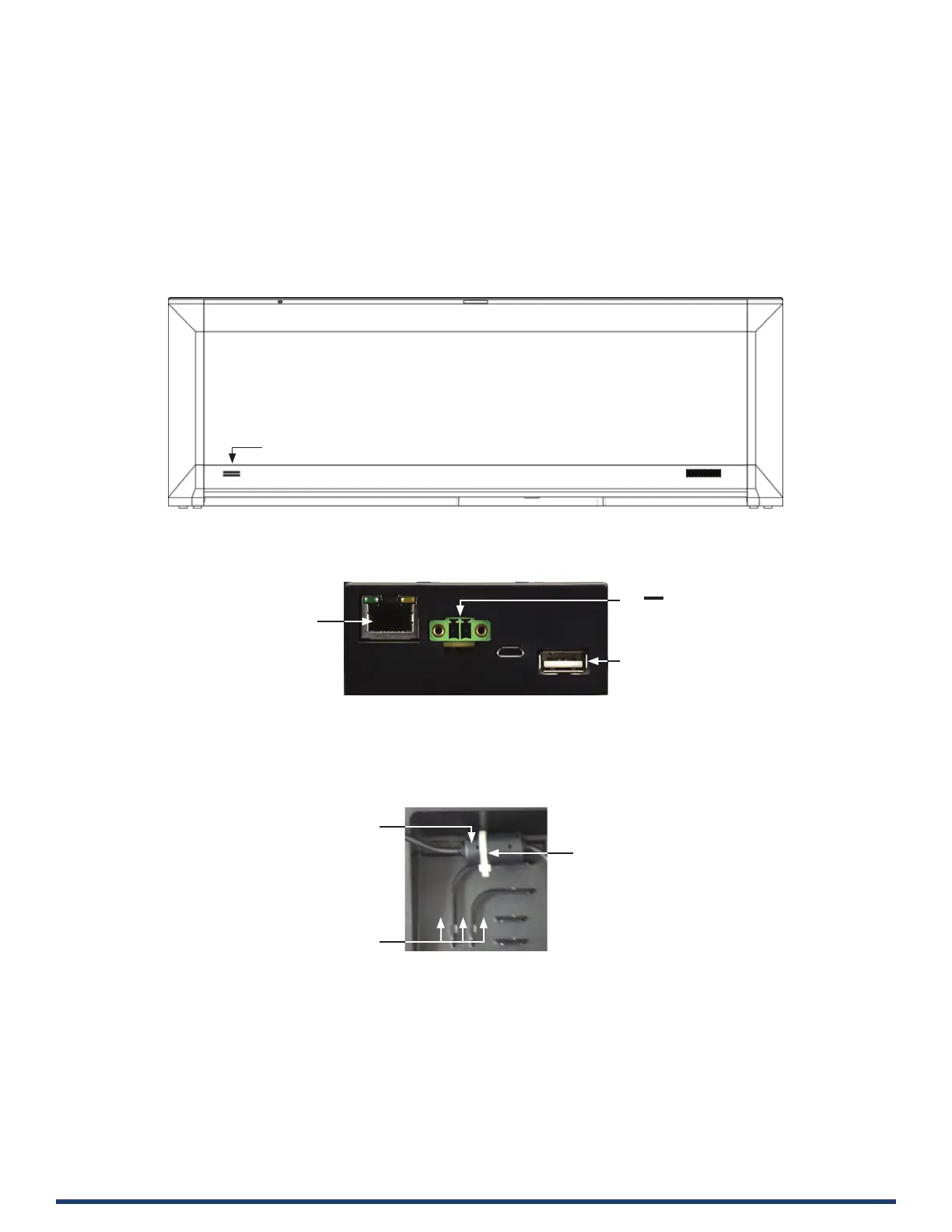

FIG. 14 MT-2002 - rear view
The Power and Ethernet connectors, as well as an additional USB port are located on the bottom of the device (FIG. 15).
FIG. 15 MT-2002 - underside connectors
NOTE: Refer to the Power via 12V section on page 32 for details on wiring a power connection.
The underside USB port, as well as the two rear USB ports, may be used with a ash drive for page transfers or rmware
upgrades. The MT-2002 has a slot at the base with channels for securing power and Ethernet cables, to allow options for cable
conguration (FIG. 16).
FIG. 16 Tie-wrap for power connector ferrite
Each channel side has slots for attaching tie-wraps to secure each cable.
• The ferrite on the power cable must be secured with the included tie-wrap during installation to prevent the possibility of
the panel not sitting ush on the table.
• Other cables may be secured with tie-wraps if desired.
Ethernet 10/100 Port
Type A USB Port
12V Power Port
- - -
Ferrite
Tie-wrap
Tie-wrap channels
