“Axis Setup” settings
These settings are for adjusting certain movements on the different power options.
The following table shows all the possible settings.

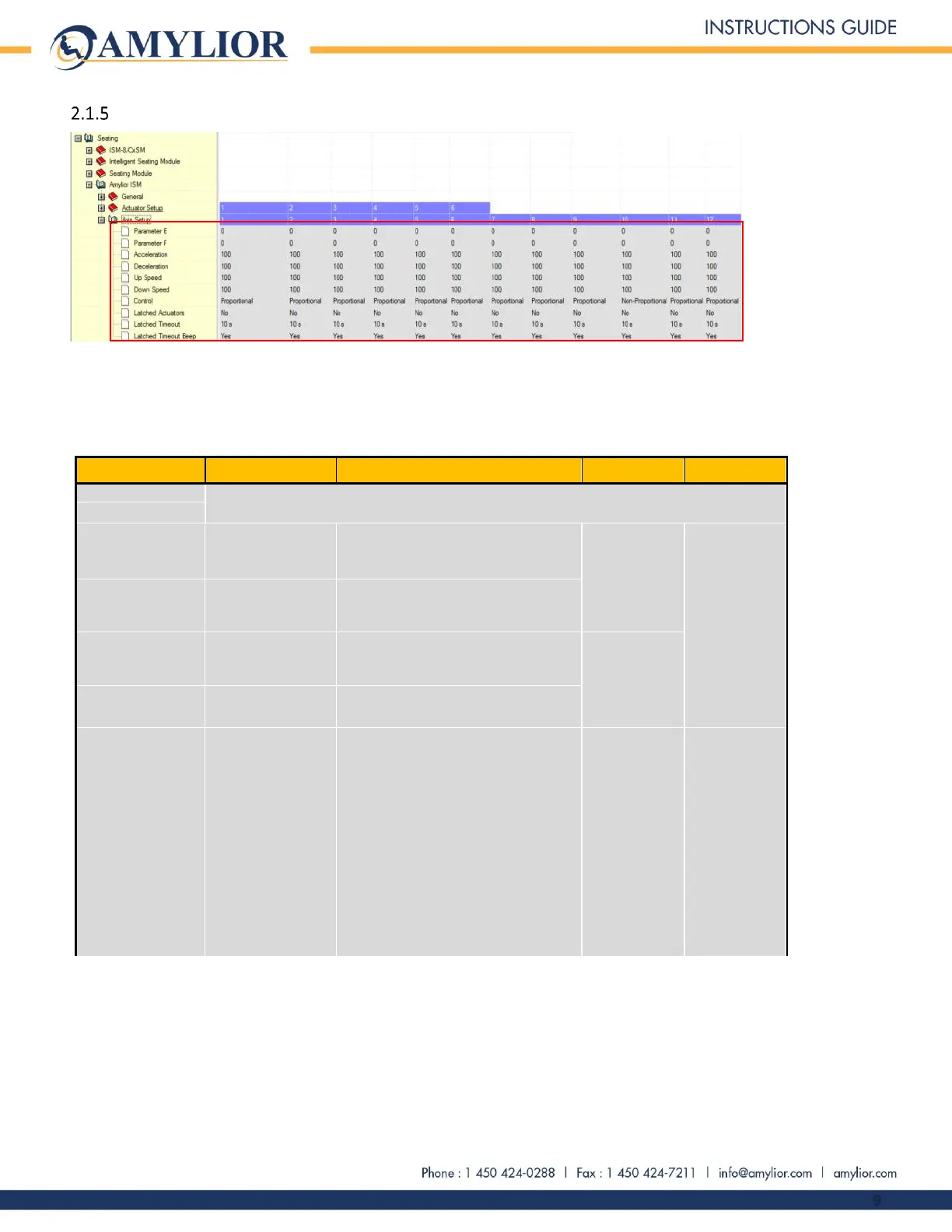

2.1.5.1 Settings under the “Axis Setup” submenu
Settings
Applicable actuator:
Description
Range
Default setting
Parameter E
Not used. Settings for future development.
Parameter F
Acceleration
Standing function only
Percentage value of speed acceleration
setting when actuators start moving for the
stander’s deployment. .
1% to 100%
Note 1
100
Deceleration
Standing function only
Percentage value of speed deceleration
setting when actuators stop moving after the
stander’s retraction. .
Up Speed
Standing function only
Percentage value of deployment speed of
actuators for the standing function.
25% to 100%
Note 1
Down Speed
Standing function only
Percentage value of retraction speed of
actuators for the standing function.
Control
All functions assigned
to an axis number
Performance setting for the joystick
controlling the axes. In non-proportional
mode, whether toggling lightly or with
intensity, forward or backward, actuators
assigned to an axis will move at the speed
setting found in the “Actuator Setup” or “Axis
Setup” submenus (for stander speed). In
proportional mode, the speed of actuators
assigned to an axis will vary according to the
joystick’s position forward or backward.
When toggled all the way, the speed of
actuators assigned to an axis with move at
the speed setting found in the “Actuator
Setup” or “Axis Setup” submenus (for stander
speed).
Non-proportional
or proportional
mode
All axes are
adjusted to
proportional
mode except for
Axis 10 of the
stander.
Note 2
