UG-207 Evaluation Board User Guide
Rev. A | Page 12 of 16
OSK AND DIGITAL RAMP CONTROL
07481-009

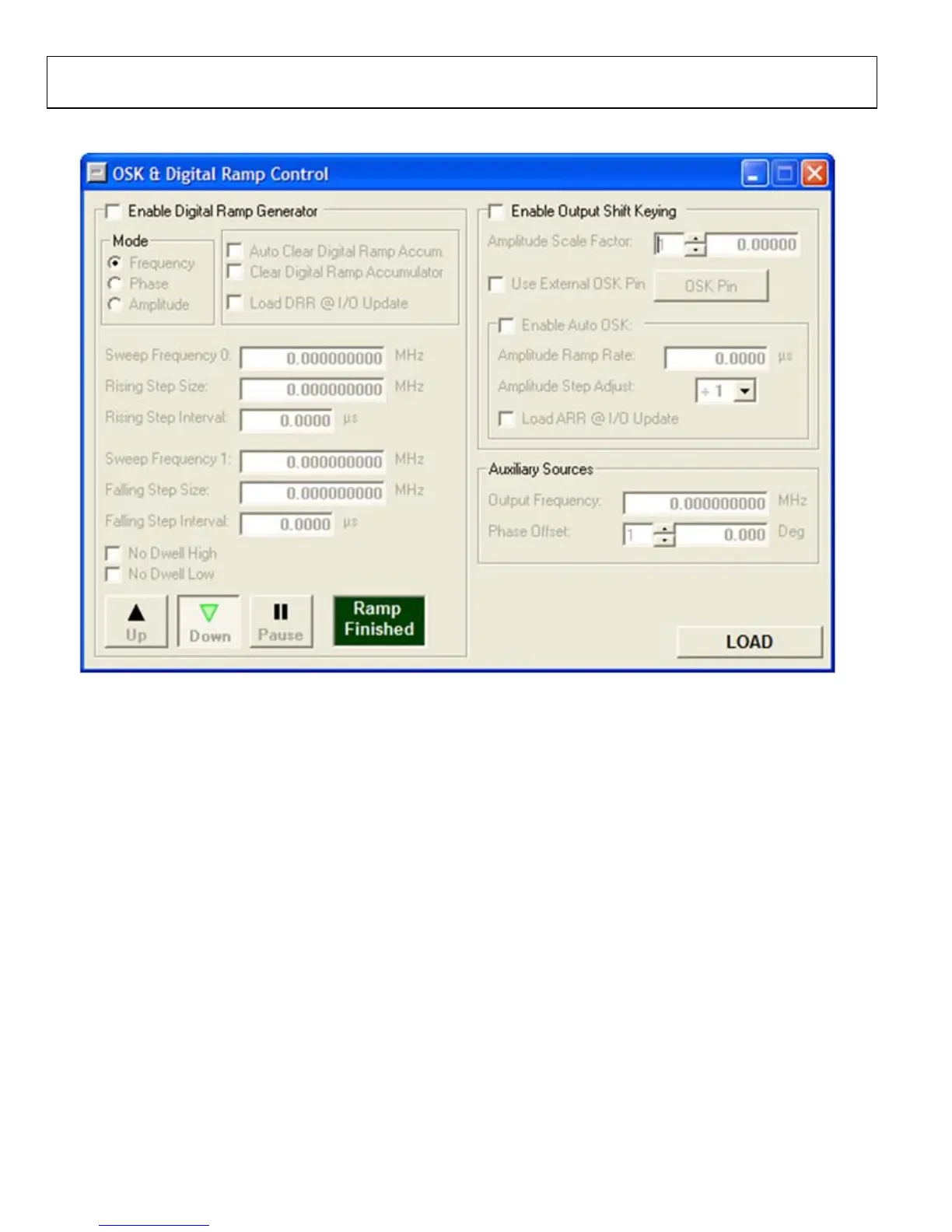

Figure 11. OSK and Digital Ramp Control Window
To access the OSK & Digital Ramp Control window, select OSK
Digital Ramp Control Window from the View drop-down menu.
Digital Ramp Generator
To use the digital ramp generator (DRG) function of the AD9910,
select the Enable Digital Ramp Generator check box. Under
Mode, select the frequency, phase, or amplitude to be gener-
ated. The Auto Clear Digital Ramp Accum. check box allows
you to set the clear digital ramp accumulator bit when the I/O
update signal is applied or when there is a profile change. The
clear bit is then released.
The Clear Digital Ramp Accumulator check box allows you to
set and keep the digital ramp accumulator cleared until that bit
is cleared. The Load DRR @I/O Update box allows you to
reload the digital ramp rate when an I/O update is issued or
when there is a profile change.
Sweep Frequency 0 and Sweep Frequency 1 are the starting
and stopping frequencies of the ramp. Note that this is frequency,
phase, or amplitude depending on which ramp generator is
selected. It is important that the value in the Sweep 0 register
is always less than the value in the Sweep 1 register.
Use the Rising Step Size and Falling Step Size boxes to set the
step size of the rising or falling ramp. The unit for these changes
depending on what type of ramp is being generated. The Rising
Step Interval and Falling Step Interval are used to set the time
between each rising or falling step on the ramp. This is in units
of microseconds.
The No Dwell High and No Dwell Low boxes set the correspond-
ing bit functions in the register map. Use the Up, Down, and
Pause buttons at the bottom of the window to control the
direction or to pause the ramp. The Ramp Finished message
box lights up when the ramp is complete.
